Product Specifications
Packaging Speed | 5-30 bpm zipper bags |
Bag Size | 100-430(L)*80-300(W)mm |
Sealing Type | straight grain pouch |
Bag Type | Stand up pouch, Premade pouch, Zipper bag, gusset bag, flat bottom pouch |
Air Consumption | 5-8kgf/cm²; 0.4m³/min |

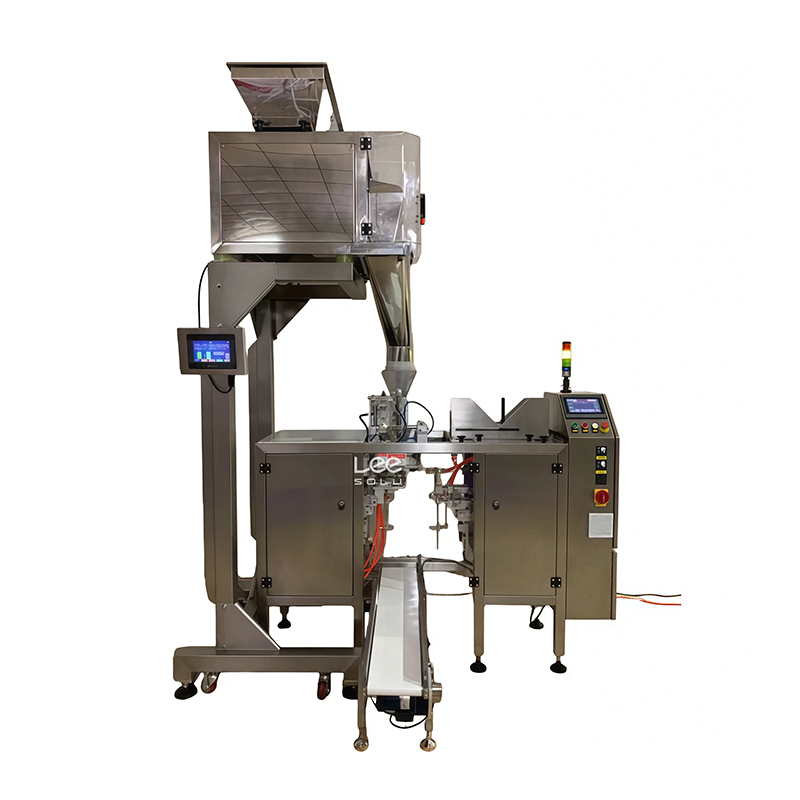

Type | Zipper Pouch Filling Sealing Machine |
Function | Filling, sealing, printing |
Material | Stainless steel 304 Pouch filling machine |
Automatic grade | Automatic pet food zipper pouch packing machine |
Key Features
Features a user-friendly HMI touch screen with one-click parameter setting, requiring no professional technical training for operators. Bag replacement can be completed in ≤2 minutes without tools, significantly reducing downtime during production line changeovers and adapting to high-frequency SKU switching needs.
Adopts a modular design with high-wear-resistant components (e.g., food-grade seals, precision gears) that have a service life 50% longer than conventional parts. Routine maintenance only requires simple cleaning and part inspection, cutting annual maintenance costs by 30–40% compared to similar equipment.
Equipped with a high-sensitivity photoelectric sensor that automatically detects missing bags and triggers an audible-visual alarm while pausing the machine. This prevents empty packaging and material waste, ensuring 100% qualified product output.
Integrates intelligent self-diagnosis technology to quickly identify bag opening failures (e.g., improper sealing, bag material defects). The system pauses precisely at the faulty station, allowing operators to adjust and reuse intact bags—reducing packaging material consumption by 15–20% and minimizing production losses.
The hopper is equipped with a dual-position locking mechanism that ensures stable positioning during material feeding and prevents accidental dropping. This protects both the equipment and raw materials (especially high-value or sterile products), avoiding cross-contamination and material waste.
Real-time monitors the temperature of cartridge heaters (critical for sealing). If overheating, under heating, or circuit failure occurs, the system immediately sends an alarm and records the fault code. This prevents defective seals (e.g., leaky bags) and avoids long-term damage to the heating module.
Continuously detects the operating status of air cylinders (key for bag clamping, sealing, and rejection). Abnormalities such as pressure loss or stuck pistons trigger instant alerts, and the machine automatically enters a safe standby state. This prevents secondary damage to the equipment and ensures operator safety, complying with international CE safety standards.
Technical Specifications
No | Feature | Description |
1 | Pouch material | Multilayer composite Premade Bag e.g: PET/PE |
2 | Pouch type | 3 side seal bag, stand up pouch, zipper bag, flat bottom pouch |
3 | Size range | 80mm≤W≤300mm
100mm≤L≤430mm |
4 | Speed | 5-20 bags/min |
5 | Sealing type | Straight grain, pitch is 1mm (Optional reticulate) |
6 | Sealing width | 10mm(5-20mm can be customized) |
7 | Power supply | 220V, Single-phase, 50/60HZ, 1.2KW |
8 | Air pressure | 0.65Mpa |
9 | Air consumption | 0.3m³/min (Standard machine, no additional function) |
10 | Packaging dimension | 1860*600*1650mm(Export non-fumigation wooden case) |
Working Flow
giving bag → coding → opening → filling 1 → filling 2 → auxiliary → exhaust → heat sealing → forming and output product
Powder type:
milk powder, glucose, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.
Associated Equipment
We provide a full range of customized auxiliary equipment to match automatic packaging systems, covering material conveying, precise weighing, operational support, and quality inspection—ensuring seamless integration and efficient operation of the entire production line.
1. Elevators (Material Conveying Solutions)
Tailored to different material properties and workshop layouts, our elevators ensure stable, damage-free conveying of raw materials or semi-finished products:
Inclined Elevator: Ideal for bulk materials (e.g., grains, plastic particles) with an adjustable inclination angle (30°–60°). Equipped with anti-slip conveyor belts or flighted chains to prevent material sliding, suitable for medium-distance conveying.
Z-Type Elevator: Features a vertical Z-shaped structure, maximizing space utilization in compact workshops. Suitable for vertical lifting of fragile or irregular materials (e.g., snack bars, small components) without deformation.
Bowl Elevator: Uses food-grade stainless steel bowls to convey granular, powdery, or liquid materials (e.g., sugar, flour, syrup). The closed design prevents dust leakage and cross-contamination, complying with HACCP and FDA standards.
Single Bucket Elevator: Designed for heavy-load or large-batch material lifting (e.g., industrial chemicals, metal parts). Equipped with a high-strength bucket and stable transmission system, supporting a lifting capacity of 1–10 m³/h.
2. Filling Machines (Precision Weighing & Dosing Equipment)
Equipped with advanced weighing technology to meet the dosing needs of diverse materials:
Multihead Weigher: 10–24 head configurations available, achieving a weighing accuracy of ±0.1–0.5%. Suitable for high-speed packaging of granular or irregular materials (e.g., nuts, candies, frozen dumplings), with a weighing speed of up to 120 times per minute.
Linear Weigher: Cost-effective solution for small-batch, multi-variety production. Supports manual or automatic feeding, ideal for powdery materials (e.g., seasoning powder, milk powder) with a weighing range of 1–5000g.
Auger Filler: Specialized for powdery, viscous, or bridging-prone materials (e.g., protein powder, peanut butter, chemical additives). The variable-frequency speed control ensures precise dosing, with a filling accuracy of ±1%.
3. Working Platforms (Operational Support Systems)
Designed to enhance operational convenience and safety for on-site staff:
Adjustable Platform: Height-adjustable (700–1200mm) to match different equipment heights and operator needs. Equipped with non-slip pedals and safety guardrails, suitable for multi-station operations (e.g., manual feeding, equipment maintenance).
Simple Platform: Lightweight yet sturdy structure, easy to install and move. Ideal for small workshops or temporary operational needs, with a load-bearing capacity of 200–500kg.
4. Post-Packaging Equipment (Quality Control & Material Handling)
Ensuring the quality and orderly output of finished products:
Exit Conveyor: Seamlessly connects with packaging machines to transport finished products to the next process. Available in horizontal, inclined, or curved designs, with a conveying speed of 0.5–3 m/s, adapting to different production line rhythms.
Check Weigher: Integrates high-sensitivity load cells to perform real-time weight inspection (precision ±0.1g). Automatically rejects underweight/overweight products and generates quality data reports, complying with international traceability requirements.
Metal Detector: Detects ferrous, non-ferrous, and stainless steel contaminants (≥0.2mm) in finished products. Equipped with phase-adapted technology to eliminate product effect interference, suitable for food, pharmaceutical, and chemical industries.
Rotary Table: Used for temporary storage and orderly arrangement of finished products. Supports a rotating speed of 10–30 rpm, reducing manual sorting work and improving the efficiency of subsequent cartoning or warehousing.
