Full Automatic Puffed Food Mix Weighing and Packaging System | 4-Material Blending Production Line
End-to-End Integrated Solution for Precise Multi-Material Mixing, Weighing and Packaging of Puffed Food
Industry Pain Points
·Inconsistent mixing ratio and weighing inaccuracy, leading to batch non-compliance, customer complaints and brand reputation loss
·Excessive labor cost and low efficiency from manual feeding, blending and quality inspection processes
High risk of metal foreign body contamination, failing to meet global food safety standards (FDA, BRC, HACCP, IFS)
·Complex multi-material handling, long downtime for formula changeover and equipment cleaning
·High product reject rate, causing serious raw material waste and profit shrinkage
·Dispersed single equipment with poor compatibility, unable to achieve continuous automated production
Core Customer Needs
·High-precision independent weighing for 4 different materials, ensuring strict mixing ratio consistency for every single bag
·Fully automated continuous production to minimize labor dependency and maximize production output
·Reliable food safety detection and control, fully compliant with international food industry certification requirements
·Easy operation, quick formula changeover and low daily maintenance cost
·Stable 24/7 operation capability to fulfill large-volume and urgent order demands
·Integrated turnkey solution with unified compatibility, from raw material feeding to finished product output
Our Complete Integrated Solution
We provide a fully automated, one-stop puffed food mix weighing and packaging system tailored for 4-type material blending production. This turnkey solution seamlessly connects raw material lifting, uniform feeding, independent precision weighing, formula mixing, foreign body detection, high-speed packaging and finished product conveying, solving all pain points in your mixed puffed food production process.
The system adopts a segmented modular design, with each unit perfectly matched to achieve full-process unmanned production, only requiring 1-2 operators for simple monitoring. It is highly flexible to adapt to various puffed food products, mixed snack formulas and bag specifications, fully meeting your diversified production needs.
Proven Final Results & Benefits
·Ultra-high weighing precision: Weighing accuracy up to ±0.1-0.5g, 100% strict compliance with preset mixing ratio for each bag, eliminating batch non-compliance issues
·Significant efficiency boost: Production speed up to 30-60 bags per minute (subject to bag size and material characteristics), greatly shortening production cycle
·Drastic cost reduction: 80% reduction in manual labor demand, cutting labor and management costs significantly
·Full food safety compliance: 99.9% metal foreign body detection rate, fully meeting FDA, BRC, HACCP and other global food safety certification requirements, avoiding product recall risks
·Minimized waste: Product reject rate reduced to below 0.5%, greatly cutting raw material waste and improving profit margin
·Flexible production adaptation: Formula and material changeover completed within 10 minutes, adapting to different product specifications and mixed formulas efficiently
·Stable long-term operation: Supports 24/7 continuous production, maximizing your equipment utilization rate and overall return on investment

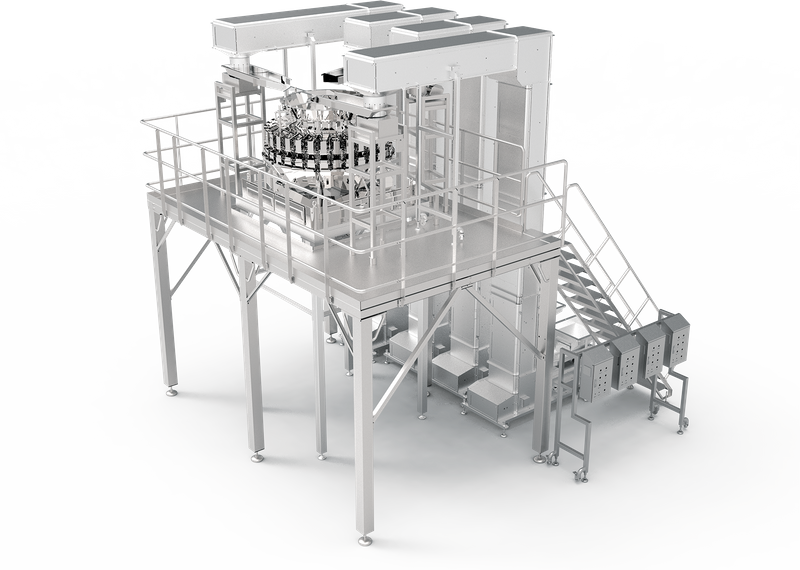

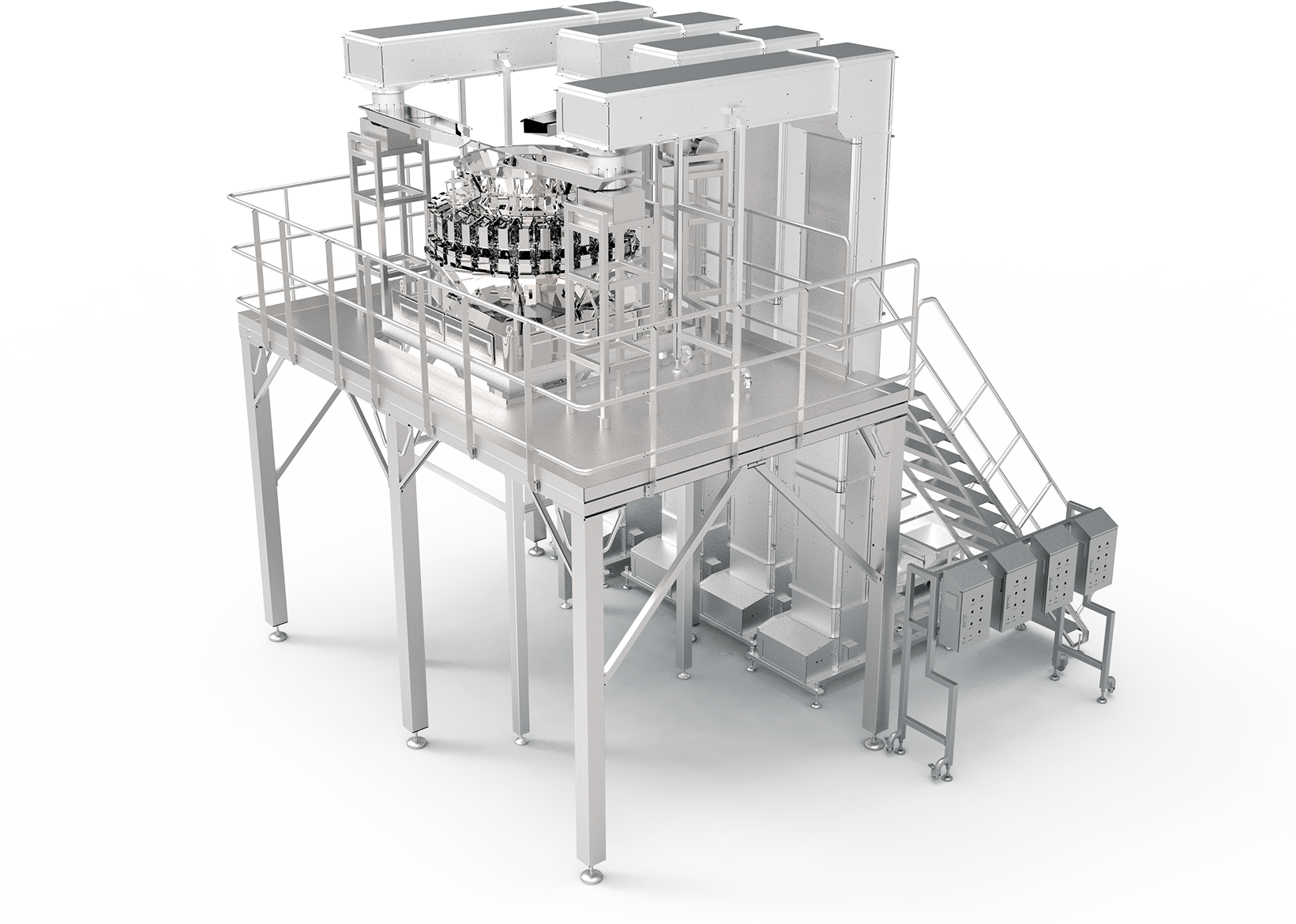

Core System Components
·32-head 0.5L Multihead Weigher (4-Material Independent Weighing)
·Supporting Platform for Multihead Weigher
·Z-type Elevator (for Material A Feeding)
·Z-type Elevator (for Material B Feeding)
·Vibrating Feeder (for Material A Uniform Conveying)
·Vibrating Feeder (for Material B Uniform Conveying)
·Supporting Platform for Feeding System
·Circular-type Metal Detector
·520 High Speed Automatic Packaging Machine
·Z-type Finished Product Conveyor
Standard Production Workflow
·Operators manually add 4 types of materials (A/B/C/D) into the hoppers of the 4 corresponding Z-type elevators. The elevators lift the materials to the matched vibrating feeders, which uniformly and continuously transport the 4 materials to the separate quadrant feed hoppers of the multihead weigher.
·The 32-head multihead weigher performs high-precision independent weighing for the 4 materials according to the preset formula. The weighed 4 materials are automatically mixed evenly in the central collecting hopper. The mixed material then passes through the circular-type metal detector, where any metal foreign body is accurately detected and rejected, and qualified material enters the 520 high speed packaging machine for automatic bag forming, filling and sealing.
·The sealed finished products automatically slide into the Z-type finished product conveyor, and are transported to the subsequent collection station, completing the entire fully automated mixing, weighing and packaging production process.
