Automatic Noodles Conveying and Packaging System | Full-Auto Noodle Packing Production Line
This fully automated conveying and packaging system is professionally customized for all types of noodle products, including dry noodles, fresh wet noodles, hanging noodles, instant noodles, udon noodles and other strip-shaped noodle products. It realizes one-stop closed-loop automated production from gentle material conveying, buffer storage, high-precision packaging to finished product output, providing a reliable, efficient and food-grade turnkey solution for noodle processing plants of all scales.
Industry Pain Points
·High product breakage rate: Fragile noodles (especially fresh wet noodles) are prone to breakage, sticking and tangling during conveying and packaging, resulting in high scrap rate, poor finished product appearance and direct raw material cost loss
·Heavy manual dependency: Manual feeding, packaging and transferring lead to low production efficiency, soaring labor costs and unstable consistency of product weight and quality
·Uncontrollable weight deviation: Inconsistent filling causes frequent overweight/underweight issues, bringing raw material waste and non-compliance risks in international food trade
·Poor packaging sealing performance: Weak sealing leads to moisture regain, spoilage and short shelf life, which is a fatal pain point for fresh wet noodles with high water content
·Food safety non-compliance: Equipment with sanitary dead corners is hard to disassemble and clean, failing to meet strict international food safety certifications such as FDA, HACCP, BRC and IFS
·Frequent production downtime: Poor connection between conveying and packaging links causes material jamming, blockage and equipment shutdown, unable to support long-term continuous mass production
Core Customer Demands
·Gentle conveying and packaging mode to minimize noodle breakage, sticking and tangling, and maintain the complete shape and premium quality of finished products
·Fully automated one-stop production to reduce manual labor input, improve production efficiency and realize 24/7 continuous mass production
·High-precision quantitative filling and stable sealing to strictly control weight deviation, reduce raw material loss and extend product shelf life
·Full food-grade equipment structure, tool-free disassembly for easy cleaning, fully compliant with global mainstream food safety certification requirements
·Stable and reliable operation, simple operation and maintenance, flexible adaptability to different types and specifications of noodle products
·Compact modular design, seamlessly compatible with front-end noodle production lines and back-end boxing equipment, adapting to different workshop layouts
Our Tailored Complete Solution
We provide an exclusive turnkey integrated conveying and packaging solution customized for noodle processing enterprises. The modular system fully covers the whole process from noodle conveying to finished product output, can be seamlessly docked with your existing production line, and perfectly solves all core pain points in noodle packaging.

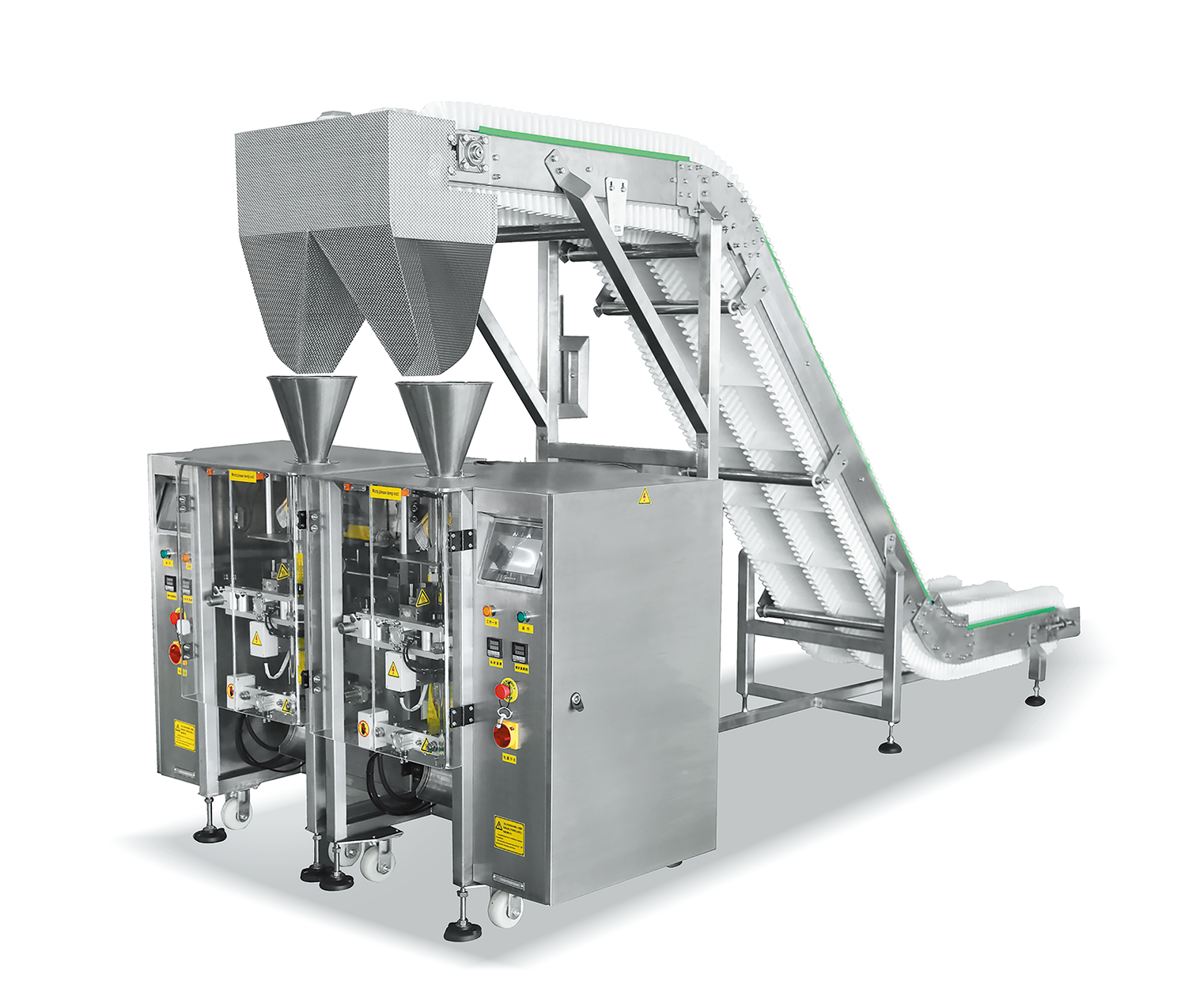

Core Solution Units

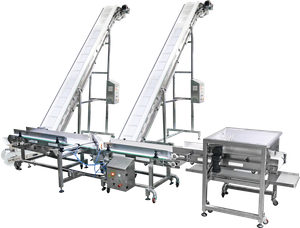

·Inclined conveyor: Professional food-grade inclined conveying equipment with anti-tangle and anti-break structure design, realizing smooth and gentle lifting of noodles from the front-end production line to the temporary storage hopper, effectively avoiding noodle breakage, sticking and tangling during conveying
·Pneumatic temporary storage hopper: Pneumatic-driven buffer storage equipment with food-grade smooth inner wall, realizing uniform and stable feeding to the back-end packaging machine, avoiding material accumulation and blockage, and ensuring continuous and stable packaging feeding
·420 VFFS (Vertical Form Fill Seal) Machine: High-performance vertical automatic packaging machine, specially optimized for noodle products, completing bag forming, quantitative filling, sealing, cutting and coding in one go, compatible with multiple bag types and packaging materials, with stable and reliable sealing performance
·Finished product conveyor: Food-grade finished product output equipment, which stably transports the sealed noodle packages to the subsequent inspection or boxing link, realizing non-stop continuous production of the whole line
Standard Workflow
·Finished noodles from the front-end production line are automatically fed into the inclined conveyor
·The inclined conveyor gently lifts and conveys the noodles to the pneumatic temporary storage hopper for buffer storage
·The pneumatic temporary storage hopper feeds the noodles uniformly and stably into the 420 VFFS machine, which completes automatic bag making, quantitative filling, sealing and cutting in one continuous process
·The sealed finished noodle packages are transported to the subsequent process through the finished product conveyor
Final Achievable Production Effects
·Ultra-low product damage rate ≤0.8%, effectively avoiding noodle breakage, sticking and tangling, maintaining the complete appearance and high market competitiveness of your noodle products
·Fully automated production process, reducing manual labor demand by more than 90%, greatly cutting labor costs, and increasing the overall line production capacity by 4 times compared with semi-manual packaging
·High-precision quantitative packaging with weight deviation controlled within ±0.5g, completely eliminating overweight/underweight raw material loss and international trade compliance risks
·High-strength airtight sealing, effectively preventing moisture regain and spoilage, extending the shelf life of dry noodles by more than 30%, and doubling the shelf life of fresh wet noodles when matched with modified atmosphere packaging function
·Full food-grade 304 stainless steel main structure, tool-free disassembly design, no sanitary dead corners, easy to clean and disinfect, fully meeting FDA, HACCP, BRC, IFS and other international food safety certification requirements
·Seamless modular connection design, material jamming and blockage rate reduced to near zero, supporting 24/7 long-term stable continuous operation, greatly reducing equipment downtime and later maintenance costs
·Strong product adaptability, can be flexibly adjusted according to noodle type, length and specification, compatible with various bag types and packaging materials, and can be seamlessly docked with your front-end noodle production line and back-end automatic boxing equipment
Contact Us
Customized solutions are available for different production capacity demands, workshop layouts and noodle product types. Contact our professional technical team now to get an exclusive quotation and customized turnkey solution for your noodle processing plant.
