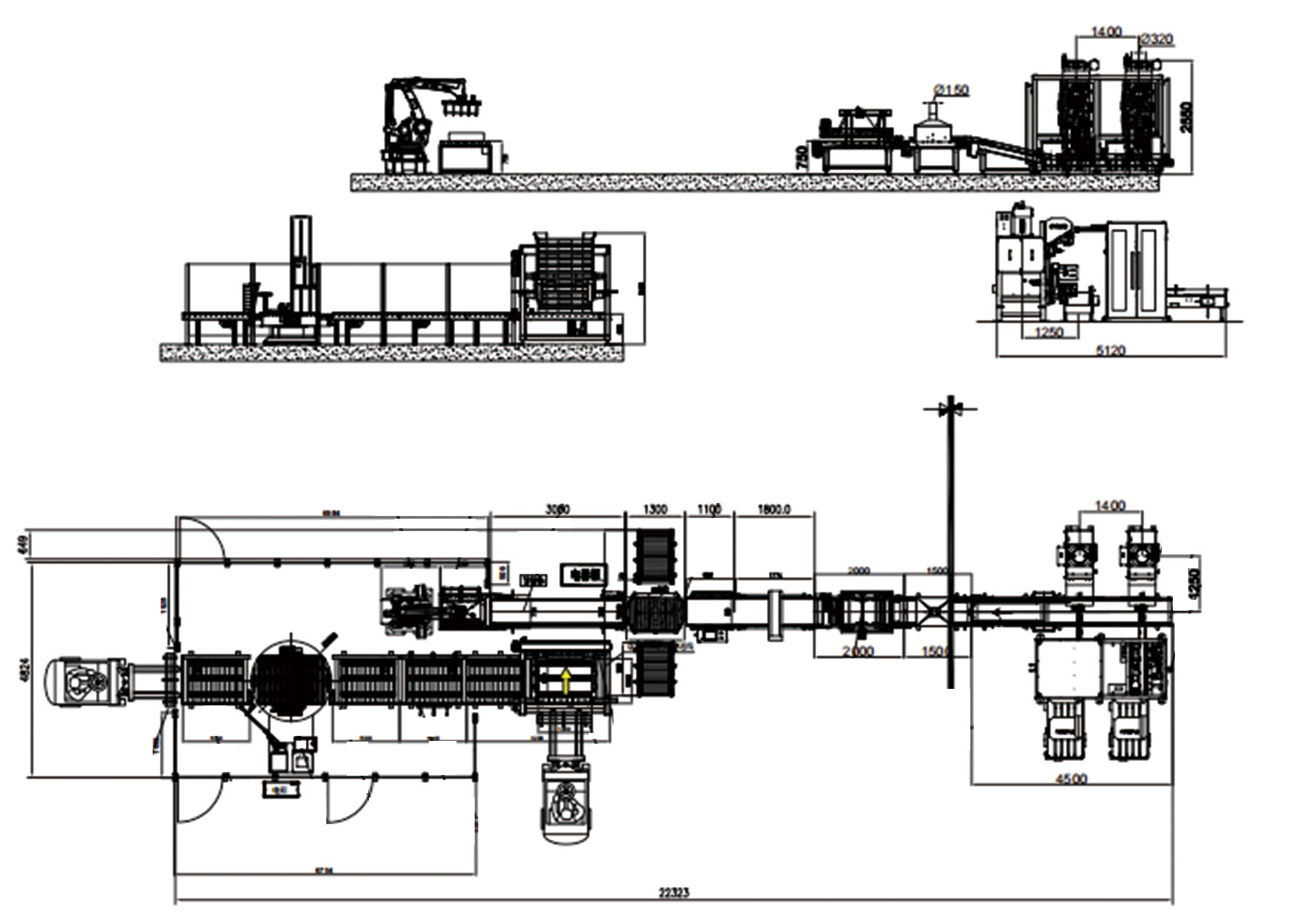

Full-Auto Starch Valve Bag Filling and Palletizing Line | Starch Powder Bulk Packaging System
This fully automated valve bag filling and palletizing line is professionally customized for all types of starch products, including food-grade corn starch, tapioca starch, potato starch, wheat starch, and industrial modified starch. It realizes a fully closed-loop, unmanned production process from automatic valve bag feeding, dust-free precision filling, bag cleaning & shaping, online quality inspection to robotic palletizing, pallet wrapping and finished pallet output. This turnkey solution is tailor-made for starch manufacturing plants, bulk food processing factories and industrial powder production enterprises, perfectly solving all core pain points in large-batch starch valve bag packaging.
Industry Pain Points
·Severe ultrafine starch dust pollution during valve bag filling: Starch powder is extremely fine and easy to diffuse, causing serious workshop dust pollution, raw material waste, equipment abrasion, and even potential dust explosion risks, which cannot meet the strict occupational safety and environmental protection standards in Europe, North America and other regions.
·Poor filling accuracy and unstable consistency: Starch powder has poor fluidity and is easy to agglomerate and absorb moisture, leading to frequent overweight/underweight issues, huge raw material cost loss, and non-compliance risks with international net content regulations for food and industrial products.
·Heavy manual dependency throughout the process: Traditional starch packaging requires a lot of manual work for bag feeding, filling, cleaning, shaping, inspection, palletizing and wrapping, leading to extremely low production efficiency, soaring labor costs, high labor intensity, and frequent safety accidents.
·Unqualified bag surface cleaning and shaping: Residual floating powder on the bag surface affects subsequent coding, inspection and customer acceptance, while irregular bag shape leads to unstable palletizing, easy collapse, and high product damage rate during long-distance transportation and storage.
·Food safety and quality compliance risks: Lack of online metal detection and weight re-inspection leads to unqualified products flowing into the market, causing huge recall losses; equipment with sanitary dead corners is difficult to clean, failing to meet strict international food safety certifications such as FDA, BRC, HACCP and GMP.
·Low palletizing efficiency and high transportation loss: Manual palletizing has low efficiency, inconsistent stacking effect, easy collapse and deformation of pallets, resulting in high product damage rate during transportation and storage, and increasing after-sales costs.
·High equipment failure and maintenance costs: Ordinary filling equipment is not adapted to the characteristics of starch powder (easy to stick, block, abrade and corrode), leading to frequent material blockage, equipment wear, high failure rate, and huge later maintenance costs.
Core Customer Demands
·Professional valve bag filling system for starch powder, with dust-free fully sealed design, anti-blocking, anti-static and explosion-proof functions, to solve dust pollution and safety risks, and ensure high-precision and stable filling.
·Fully automated unmanned production line, covering the whole process from empty bag feeding to finished pallet output, to reduce manual labor input, cut labor costs, and realize 24/7 continuous mass production.
·Efficient bag surface cleaning and shaping functions, to completely remove floating powder on the bag surface, ensure regular bag shape, and facilitate subsequent quality inspection, palletizing and transportation.
·Full-process online quality control, including metal foreign body detection and weight re-inspection, to 100% eliminate unqualified products, and fully meet international food safety and trade compliance requirements.
·Stable and flexible robotic palletizing system, with automatic pallet dispensing and wrapping functions, to achieve neat and stable palletizing, prevent collapse, and adapt to long-distance transportation and warehouse storage.
·Full food-grade 304 stainless steel structure, no sanitary dead corners, easy to disassemble and clean, fully compliant with FDA, BRC, HACCP and other international food safety certification standards, with anti-corrosion and anti-abrasion design for long-term stable operation.
·Strong customization adaptability, compatible with different specifications of valve bags, adjustable production capacity, and flexible layout according to the customer's workshop, can be seamlessly docked with the front-end starch production line.
Our Tailored Complete Solution
We provide an exclusive turnkey integrated valve bag filling and palletizing solution customized for starch production enterprises. The modular design fully covers the whole process of starch valve bag packaging, can be seamlessly connected with your front-end starch production and drying equipment, and completely solves all core pain points in large-batch starch packaging.
Core Solution Units
·Powder Filling Machine: Professional valve bag filling machine specially optimized for ultrafine starch powder, with fully sealed dust-free filling structure, anti-blocking screw feeding design, and high-precision weighing control system. It realizes automatic bag picking, valve opening, dust-free filling and bag dropping in one go, effectively avoiding starch dust diffusion, and adapting to various food-grade and industrial-grade starch products.
·Ready Bags Exit Conveyor: Heavy-duty anti-slip conveyor, which stably transports the filled starch valve bags from the filling machine to the subsequent lifting conveyor, matching the production beat of the front-end filling machine to ensure continuous and stable production.
·Lifting Conveyor: Inclined lifting conveyor with fully enclosed structure, which smoothly lifts the filled bags to the cleaning conveyor without material slipping or bag dumping, avoiding secondary dust pollution and bag damage.
·Cleaning Conveyor: Professional starch bag cleaning equipment with high-efficiency dust removal and negative pressure collection system, which completely removes the floating starch powder attached to the surface of the valve bags, ensuring a clean bag surface, no dust residue, and meeting food-grade hygiene requirements.
·Shaping Conveyor: Professional bag shaping equipment with uniform pressure design, which flattens and shapes the filled starch valve bags into a regular and flat shape, ensuring consistent bag size, stable stacking, and avoiding pallet collapse during subsequent palletizing and transportation.
·Metal Detector & Check Weigher: Integrated online quality inspection system, which accurately detects metal foreign bodies in the bags and rechecks the net weight of the products. It automatically eliminates unqualified products that do not meet the standards, 100% ensuring product quality and fully complying with international food safety and trade regulations.
·Robotic Palletizing System: High-performance 6-axis industrial robotic palletizing system, with flexible programming design, which automatically stacks qualified starch valve bags on the pallet according to the preset stacking mode. It has high palletizing efficiency, neat and stable stacking effect, and is compatible with various bag specifications and pallet sizes.
·Auto Pallet Dispenser: Automatic empty pallet dispensing equipment, which automatically stores and dispenses empty pallets one by one to the palletizing roller conveyor, realizing unmanned pallet supply, matching the palletizing beat of the robotic system, and ensuring continuous production of the whole line.
·Auto Pallet Wrapper: Fully automatic stretch film wrapping machine, which automatically wraps the full pallet of starch products with stretch film according to the preset parameters. It ensures the stability of the pallet, prevents the bags from collapsing and falling during transportation, and isolates moisture to avoid starch agglomeration and deterioration.
·Exit Roller Conveyor: Heavy-duty power roller conveyor, which stably transports the fully wrapped finished pallets to the warehouse or loading area, realizing the final output of the whole line, and can be seamlessly docked with the customer's subsequent warehouse logistics system.
Standard Workflow
·The system automatically picks up empty valve bags, opens the valve port, and prepares for dust-free filling of starch powder.
·The powder filling machine completes high-precision quantitative filling of starch into the valve bag, and the filled bag is automatically dropped onto the ready bags exit conveyor.
·The lifting conveyor smoothly lifts the filled starch bags to the cleaning conveyor, with a fully enclosed structure to avoid secondary dust pollution.
·The cleaning conveyor completely removes the floating starch powder attached to the surface of the bags through a high-efficiency negative pressure dust removal system.
·The shaping conveyor flattens and shapes the cleaned starch bags into a regular and uniform shape, preparing for stable palletizing.
·The integrated metal detector and check weigher perform online metal foreign body detection and weight re-inspection, and automatically eliminate unqualified products.
·Qualified starch bags are transported to the roller conveyor, waiting for automatic palletizing by the robotic palletizing system.
·The auto pallet dispenser automatically delivers empty pallets one by one to the designated position of the palletizing roller conveyor, realizing unmanned pallet supply.
·After the pallet is fully stacked according to the preset mode, it is automatically transferred to the auto pallet wrapper for full-wrap stretch film packaging.
·The fully wrapped finished pallet is automatically transferred to the exit roller conveyor for subsequent warehouse storage or loading and transportation.
Final Achievable Production Effects
·Ultra-high filling precision with weight deviation controlled within ±0.1%, completely eliminating overweight/underweight issues, reducing raw material cost loss by more than 4% compared with traditional filling equipment, and fully complying with EU, North American and other international net content regulations.
·Fully sealed dust-free filling and cleaning system, with starch dust control rate up to 99.9%, completely solving workshop dust pollution, raw material waste and potential dust explosion risks, fully meeting international occupational safety and environmental protection standards.
·Fully unmanned automated production process, reducing manual labor demand by more than 95%, greatly cutting labor costs and labor intensity, and increasing overall production capacity by more than 5 times compared with semi-manual production lines, supporting 24/7 long-term continuous stable operation.
·100% clean bag surface and regular shaping effect, ensuring no floating powder residue, consistent bag shape, neat and stable palletizing, reducing product damage rate during transportation and storage by more than 90%, and greatly reducing after-sales loss.
·Full-process online quality inspection, with 100% elimination of unqualified products with metal foreign bodies or weight deviation, completely avoiding product recall risks, and fully meeting FDA, BRC, HACCP, GMP and other international food safety certification standards.
·High-precision robotic palletizing and automatic wrapping system, with palletizing qualification rate up to 100%, stable and non-collapse stacking effect, effectively isolating moisture, preventing starch from agglomeration and deterioration, and extending product shelf life by more than 30%.
·Full 304 stainless steel anti-corrosion and anti-abrasion main structure, no sanitary dead corners, tool-free quick-disassembly design, easy to clean and maintain, reducing equipment failure rate by more than 85%, greatly reducing unplanned downtime and later maintenance costs.
·Strong customization adaptability, compatible with valve bag specifications from 5kg to 50kg, adjustable production capacity from 100 to 600 bags per hour, can be flexibly adjusted according to your workshop layout and production needs, and seamlessly docked with your front-end starch production line and back-end warehouse logistics system.
Contact Us
Customized solutions are available for different production capacity demands, valve bag specifications, starch product types and workshop layouts. Contact our professional technical team now to get an exclusive quotation and customized turnkey solution for your starch manufacturing plant.
