Full Automatic Weighing and Filling System for Puffed Food (Paper Tube Box)

Customized Dual-Station Weighing & Filling Line for Puffed Snack Paper Tube/Box Packaging

Product Application

Customer Pain Points

• ·Traditional weighing equipment causes severe breakage of fragile puffed food, leading to high product loss rate, uneven product quality and frequent customer complaints

• ·Single-station filling mode has low production efficiency, unable to meet the high-capacity mass production demand of mainstream puffed food brands

• ·Unstable filling accuracy for paper tube/box packaging, serious material spilling and inconsistent net weight in each container, resulting in high rework cost and non-compliance with international food net content regulations

• ·Lack of full-process quality control, unable to effectively detect and remove metal foreign bodies, bringing huge food safety risks and irreversible brand reputation damage

• ·Heavy reliance on manual operation in feeding, filling and inspection processes, high labor cost, and high risk of secondary contamination of puffed food

• ·No online weight re-inspection function, unqualified products flow into the market, leading to regulatory penalties and brand trust crisis

• ·Poor equipment compatibility, unable to adapt to paper tube/box of different diameters, heights and specifications, long changeover time for different product SKUs

Core Customer Needs

• ·Non-damaging high-precision weighing solution, specially optimized for fragile puffed food, minimizing product breakage during the whole production process

• ·High-efficiency dual-station filling design, to double production capacity and meet the mass production demand of puffed food

• ·Accurate and spill-free filling for paper tube/box packaging, ensuring consistent net weight in each container, fully compliant with international food net content regulations

• ·Full-process quality control system, including online metal foreign body detection and finished product weight re-inspection, to eliminate food safety risks from the source

• ·Fully automated continuous production, to minimize manual intervention, reduce labor cost and avoid secondary contamination of products

• ·Fast product changeover, compatible with paper tube/box of various specifications, to meet flexible multi-SKU production needs

• ·Food-grade safety design, fully compliant with CE, FDA and other international food industry standards, to help products smoothly access the global market

Our Tailored Full-Auto Solution

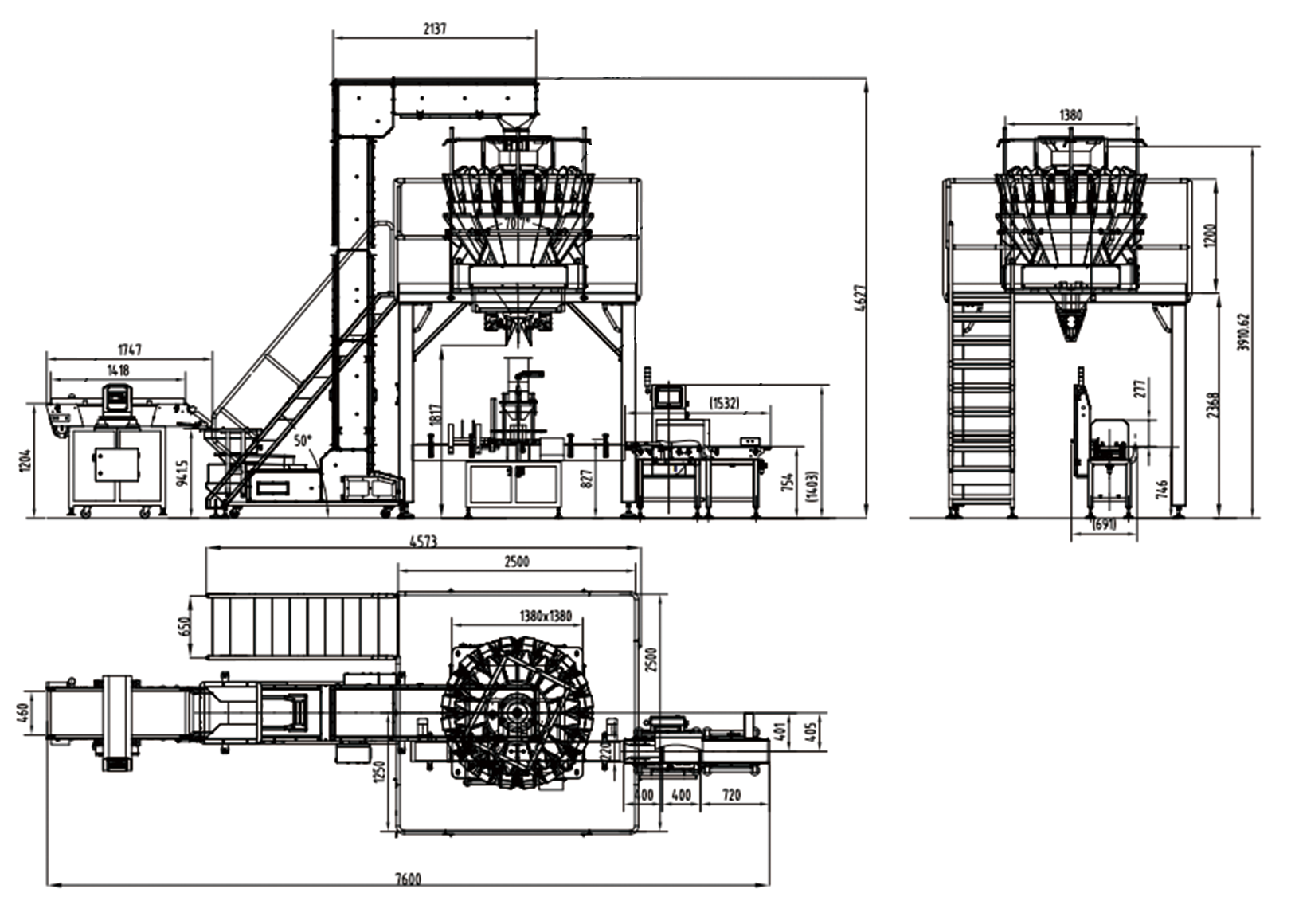

Core Solution Units

1. ·20-Head 1.6L Multihead Weigher

   The core weighing unit of the whole line, specially optimized for fragile puffed food. It adopts a dual 10-head independent working mode, the 20-head weigher is divided into two independent weighing zones (Zone A and Zone B), each equipped with 10 sets of high-precision weighing units, to realize synchronous quantitative weighing of two channels. The outlet is equipped with a dual-chamber temporary storage hopper (Chamber A and Chamber B), which temporarily stores the weighed materials respectively, perfectly matching the beat of the dual-station filling machine, ensuring high weighing accuracy and no damage to puffed food.
2. ·Stable Integrated Supporting Platform

   Provides a solid anti-vibration support base for the whole production line, integrates the central electrical control system, realizes unified coordination and intelligent signal linkage of all equipment units, ensuring stable and synchronous operation of the whole line. The compact integrated design saves workshop floor space, and is convenient for daily operation and maintenance.
3. ·Z-Type Elevator

   Closed automatic feeding equipment, specially designed for fragile puffed food. It adopts a gentle lifting structure to avoid product breakage during the lifting process, and the closed design prevents dust, moisture and secondary contamination. It stably lifts the puffed food from the bottom hopper to the upper feed hopper of the multihead weigher, realizing continuous and stable material supply.
4. ·Horizontal Metal Detector

   Installed at the front end of the feeding line, it adopts high-sensitivity horizontal detection technology to accurately detect metal foreign bodies mixed in puffed food in real time. Once metal foreign bodies are detected, the system will send an alarm prompt, and the unqualified products can be manually removed in time, completely eliminating food safety risks from the source.
5. ·Dual-Station Filling Machine

   The core filling host of the whole line, exclusively designed for paper tube/box packaging of puffed food. It adopts dual-station synchronous filling design, which can simultaneously complete the filling of two paper tubes/boxes, greatly improving production efficiency. Equipped with an anti-spilling guide structure, it accurately docks with the paper tube mouth, ensures that the weighed puffed food is completely filled into the container without spilling, and perfectly matches the temporary storage hopper of the multihead weigher to realize synchronous filling beat.
6. ·CW220 Check Weigher

   High-precision online weight re-inspection equipment, installed at the back end of the filling process. It conducts 100% full inspection of the net weight of each filled paper tube/box in real time, automatically identifies and alarms unqualified products with overweight or underweight, ensures that each finished product fully complies with international net content regulations, and perfects the whole-process quality control system.

Standardized Automated Operation Flow

1. ·Front-End Metal Detection & Feeding: Puffed food products enter the hopper of the Z-type elevator after passing through the horizontal metal detector. The metal detector detects metal foreign bodies in real time, and the products with detected metal foreign bodies are manually removed by the operator to ensure the safety of raw materials.

2. ·Closed Gentle Lifting & Feeding: The Z-type elevator lifts the qualified puffed food to the upper feed hopper of the 20-head multihead weigher in a closed, gentle and non-damaging manner, realizing continuous and stable material supply for the weighing unit.

3. ·Dual-Zone Quantitative Weighing & Temporary Storage: The 20-head multihead weigher operates in dual 10-head working mode, divided into two independent weighing zones (Zone A and Zone B), each with 10 sets of weighing units, which complete high-precision quantitative weighing of puffed food in Zone A and Zone B respectively according to the preset target weight. The outlet of the multihead weigher is equipped with a dual-chamber hopper (divided into Chamber A and Chamber B). After the weighing in Zone A and Zone B is completed, the materials are discharged into the corresponding Chamber A and Chamber B of the hopper for temporary storage. At the same time, the empty paper tubes/boxes are transported from the sorting table to the filling position of the dual-station filling machine, ready for filling.

4. ·Dual-Station Synchronous Filling: The dual-station filling machine receives the signal from the multihead weigher, and the dual-chamber hopper releases the weighed materials into the corresponding paper tubes/boxes synchronously, completing the spill-free filling process accurately.

5. ·Online Weight Re-inspection: After filling, the finished paper tubes/boxes are automatically transported to the CW220 check weigher for 100% online net weight inspection. Unqualified products with overweight or underweight will be automatically identified and alarmed, and only qualified finished products will flow into the subsequent packaging process.

Final Achievable Effects & Business Benefits

1. ·Ultra-low Product Breakage Rate & High Weighing Accuracy

   The whole line adopts non-damaging gentle structure design, reduces the breakage rate of fragile puffed food by more than 95% compared with traditional equipment. The 20-head multihead weigher achieves ±0.2g high-precision weighing, ensuring 100% consistency of net content in each paper tube/box, fully compliant with international food net content regulations.
2. ·Dual-Station High Efficiency & Significant Capacity Boost

   The dual 10-head weighing mode and dual-station synchronous filling design double the production efficiency compared with the single-station solution. The fully automated continuous production increases the overall production capacity by more than 300% compared with the semi-manual production mode, fully meeting the delivery demand of large bulk orders.
3. ·Full-Process Quality Control & Food Safety Guarantee

   The front-end horizontal metal detector and back-end CW220 check weigher form a complete quality control system, with 100% full inspection of metal foreign bodies and net weight, completely eliminating food safety risks. All parts in contact with materials are made of food-grade 304 stainless steel, fully compliant with CE, FDA and other international food industry standards, helping your products smoothly enter the global market.
4. ·Great Production Cost Reduction

   Only 1-2 operators are needed for the whole production line, reducing labor cost by more than 80% compared with the traditional manual production mode. The non-damaging design greatly reduces product loss, and the fully automated operation reduces equipment downtime and rework cost, greatly lowering the overall production cost.
5. ·Super Flexible Production Adaptability

   Supports one-click formula saving and calling, product changeover time for different puffed food types and paper tube/box specifications is less than 15 minutes. It is compatible with various puffed snacks and adapts to paper tube/box of different diameters, heights and capacities, perfectly meeting your flexible multi-SKU production needs.
6. ·Zero Material Spilling & Clean Production Environment

   The anti-spilling filling structure and closed feeding design ensure zero material spilling during the whole production process, keep the workshop clean and tidy, avoid material waste, and reduce the cleaning and maintenance cost of the production site.
