Shredded Beets Weighing and Filling System
Fully Automated High-Precision Production Line for High-Viscosity Shredded Vegetable Processing
Core Pain Points We Solve
·High viscosity and easy caking of shredded beets cause frequent material bridging, clogging and jamming in traditional weighing equipment, resulting in massive unplanned downtime and production interruption
·Serious material entanglement and residue in conventional conveying and weighing systems, leading to hard-to-clean dead corners, cross-contamination risks and failure to meet strict global food safety standards
·Inconsistent filling weight from manual or semi-manual operation, causing severe raw material waste and non-compliance risks in international food trade
·Low production efficiency of traditional single-batch filling lines, unable to meet the large-scale continuous production demand of shredded vegetable deep processing
·Equipment corrosion from salted/pickled shredded beets, resulting in short service life, frequent parts replacement and high maintenance cost
·Poor equipment flexibility and compatibility, difficult to adapt to different shredded vegetable specifications and match various back-end packaging equipment, with long product changeover time
Target Customer Needs
·Special anti-bridging, anti-clogging feeding and weighing design exclusively for high-viscosity, filamentous and easy-caking shredded beets
·High-precision quantitative weighing with strict weight tolerance, to minimize raw material waste and ensure full compliance with international food trade regulations
·Food-grade, corrosion-resistant equipment structure, easy to disassemble and clean, fully meeting HACCP, FDA and other global food safety standards
·Gentle and stable conveying system, to ensure continuous material flow without damaging the fiber structure and form of shredded beets
·Multi-batch synchronous filling function, to significantly improve production efficiency and perfectly match high-speed back-end packaging lines
·Modular and flexible design, for fast tool-free product changeover and seamless integration with various filling and packaging equipment
·Long-term stable 24/7 continuous operation, with low failure rate and maintenance cost, adapting to the high-intensity production rhythm of the vegetable processing industry
Our Tailored Integrated Solution
We provide a turnkey, shredded beets-specific weighing and filling system, professionally developed for high-viscosity, filamentous shredded vegetables (including shredded beets, shredded carrots, pickled vegetable shreds and other similar products). This fully automated modular solution integrates uniform feeding, gentle lifting, high-precision quantitative weighing and multi-batch synchronous dispensing, fully solving the industry pain points above. It realizes one-stop automated production from raw material feeding to quantitative batch dispensing, and can be seamlessly docked with back-end filling, packaging and other auxiliary equipment to build a complete unmanned production line.

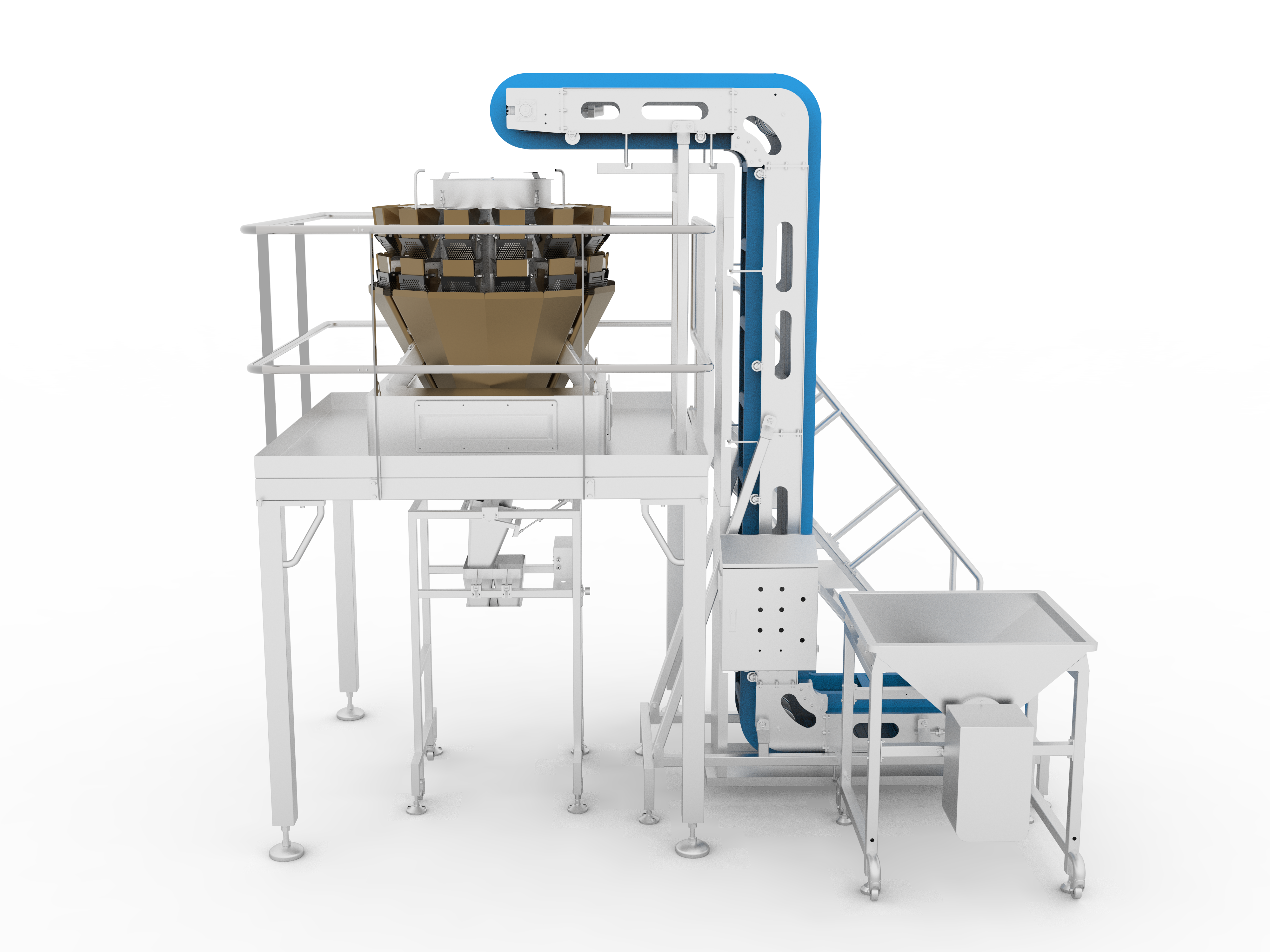

Core System Units
·Screw feeding machine
·Vertical belt elevator
·14 head 2.5L multihead weigher (screw version weigher)
·Supporting platform
·4 section of dispenser (4 batches in once)
Standard Workflow
·Shredded beets are put into the screw feeding machine, which realizes uniform, stable and anti-bridging feeding through the screw structure, avoiding material caking and ensuring continuous material supply.
·The vertical belt elevator gently carries the evenly fed shredded beets to the upper feeding hopper of the screw version multihead weigher, with no material entanglement or damage during conveying.
·The 14 head 2.5L screw version multihead weigher completes high-precision quantitative weighing of shredded beets according to the preset filling parameters, specially optimized for high-viscosity filamentous materials.
·The weighed shredded beets enter the 4-section dispenser device for temporary buffer storage, realizing 4 batches synchronous discharging in one cycle to match the rhythm of the back-end production line.
Proven Final Results & Benefits
·Zero clogging & stable production: Exclusive screw-type feeding and weighing design, completely eliminating material bridging and clogging issues, reducing unplanned downtime by more than 90%
·High-precision weighing control: ±0.5-1.2g weight tolerance, effectively eliminating overfilling waste, saving more than 5% of raw material cost annually
·Full food safety compliance: Full machine adopts food-grade 304 stainless steel corrosion-resistant material, no sanitary dead corners, easy to disassemble and clean, fully meeting HACCP, FDA and other international food safety standards
·Dramatic capacity improvement: 4-batch synchronous dispensing design, increasing production efficiency by up to 250% compared with traditional single-batch manual lines
·Significant cost reduction: Fully automated unmanned operation, cutting labor costs by more than 85% and eliminating human error in manual weighing
·Superior flexibility: Adjustable parameters support fast changeover between different shredded vegetable specifications and filling weights, greatly shortening production line switching time
·Long service life: Corrosion-resistant structure design adapts to both fresh and pickled shredded beets processing, reducing equipment maintenance cost and extending service life by more than 30%
Call to Action
Contact us today for a customized solution and exclusive quotation tailored to your shredded vegetable processing production needs. We provide full overseas after-sales support, on-site installation guidance and professional technical training to ensure your production line runs at peak efficiency long-term.
