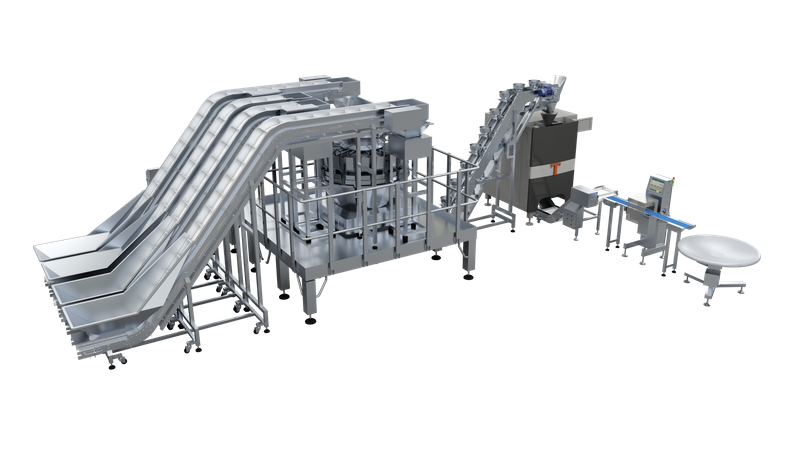

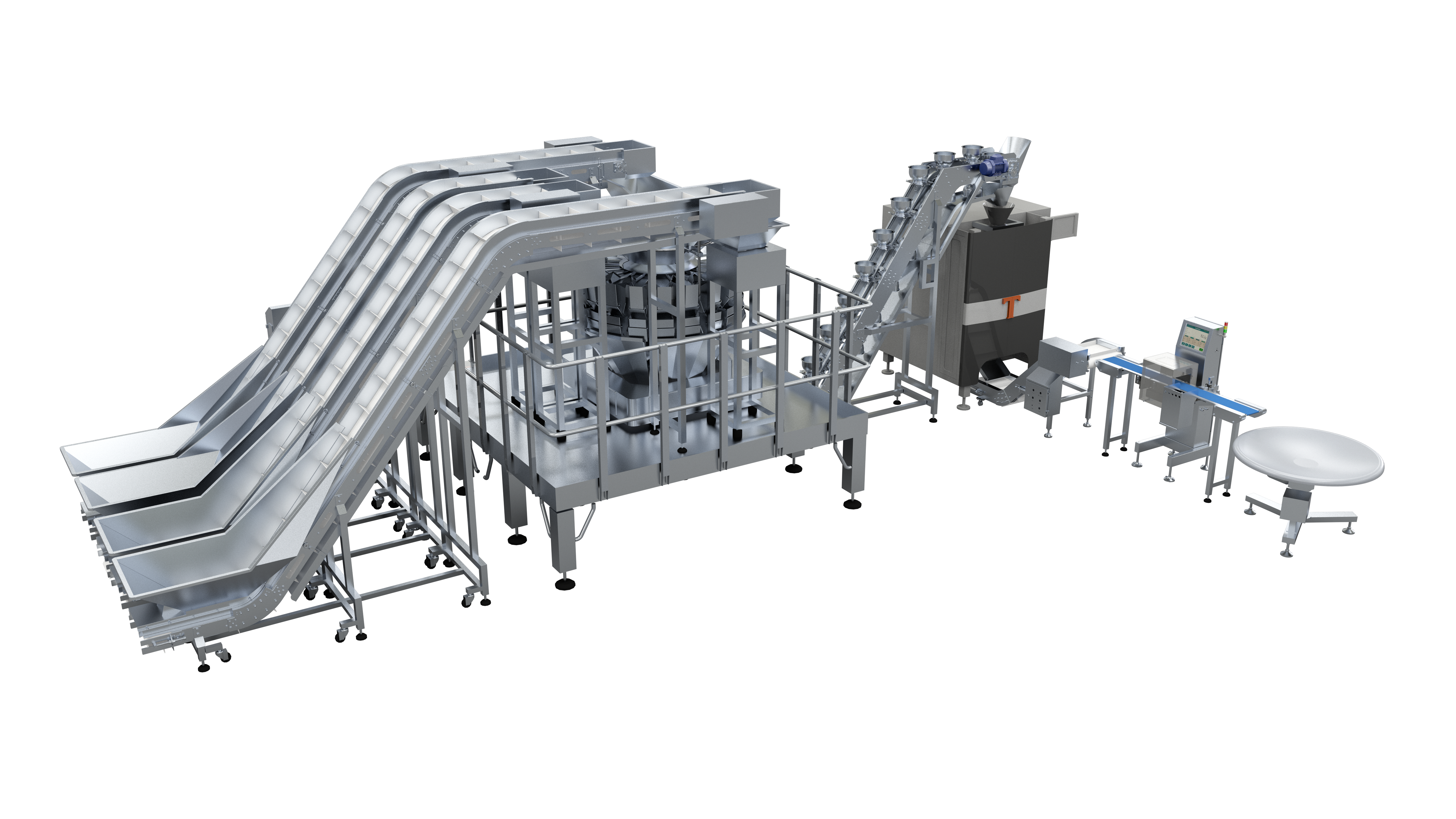

Automatic 4 Kinds of Mixed Materials Weighing and Packaging System | Multi-Ingredient Synchronous Weighing VFFS Packaging Line
This fully automated, high-precision weighing and packaging system is professionally customized for synchronous mixing and packaging of 4 different materials, widely applicable to mixed nuts, freeze-dried fruits and vegetables, granola cereals, mixed snack foods, blended pet food, herbal tea ingredients, spice blends and other multi-ingredient products. It realizes one-stop closed-loop automated production from independent material lifting, 4-ingredient synchronous precision weighing, uniform mixing, automatic bag forming & sealing to finished product collection. With exclusive 4-mix weighing mode and full signal linkage control, this turnkey solution perfectly solves core pain points in multi-material mixed packaging, fully complies with global food safety standards, and helps manufacturers achieve efficient, low-loss and high-consistency mass production.
Industry Pain Points
·Uncontrollable formula ratio deviation and compliance risks: Traditional pre-mixing process causes severe material layering due to differences in particle size, density and shape between 4 materials, leading to inconsistent ingredient ratio in each package. This violates food labeling regulations in Europe, North America and other regions, bringing huge product recall risks and brand reputation damage.
·High material breakage rate and raw material loss: Fragile materials such as freeze-dried fruits and vegetables, crispy nuts are easily broken, crushed and scratched during conveying and weighing in ordinary equipment, with breakage rate as high as 5% or more, resulting in serious raw material waste and poor finished product appearance.
·Poor material compatibility and unstable weighing accuracy: 4 materials often have huge differences in fluidity, brittleness and bulk density. Ordinary single weighing system cannot balance the weighing accuracy of all materials, leading to frequent overweight/underweight issues and unstable product quality.
·Severe cross-contamination and food safety risks: Traditional mixed production uses shared conveying and weighing channels for different materials, leading to flavor cross-contamination, color mixing and microbial cross-contamination risks, which cannot meet the strict requirements of FDA, BRC, HACCP and other international food safety certifications.
·Heavy manual dependency and low production efficiency: Traditional multi-material production requires multiple sets of independent equipment and extensive manual intervention in material feeding, weighing, mixing and packaging, leading to soaring labor costs, frequent human errors, and production efficiency 3-4 times lower than automated lines.
·Long formula changeover time and poor flexibility: Switching between different formulas, material ratios and packaging specifications requires long debugging time on traditional equipment, resulting in frequent unplanned downtime, unable to adapt to the fast-response demands of multi-SKU and small-batch customized production.
·Uneven mixing and poor customer experience: Traditional process cannot achieve uniform mixing of 4 materials in each individual package, leading to inconsistent taste and experience when consumers open the bag, reducing product repurchase rate and brand loyalty.
Core Customer Demands
·Exclusive 4-mix weighing mode, with independent synchronous weighing for 4 different materials, to ensure 100% accurate and consistent formula ratio in each package, completely solve the pre-mixing layering problem, and fully comply with international food labeling regulations.
·Full compatibility with materials of different characteristics, with anti-breakage, anti-blocking and anti-sticking design, to protect the integrity of fragile materials, ensure stable weighing accuracy for all materials, and reduce raw material loss.
·Independent material conveying channels for each of the 4 materials, to completely avoid cross-contamination, flavor mixing and color mixing between different materials, and meet food safety production requirements.
·Fully automated continuous production from material lifting, weighing, mixing, packaging to finished product collection, to minimize manual intervention, cut labor costs, avoid human errors, and improve overall production efficiency.
·One-click fast formula and specification changeover, to adapt to multi-SKU production demands, reduce downtime, and improve the flexibility of production scheduling.
·Full food-grade SUS304 stainless steel structure, no sanitary dead corners, tool-free quick disassembly for easy cleaning and disinfection, fully meeting FDA, BRC, HACCP and other international food safety certification requirements.
·Full signal linkage between all units, precise synchronous control, to ensure uniform mixing of 4 materials in each package, and stable continuous 24/7 production with low failure rate.
·Compatible with different packaging specifications and bag types, to meet the diversified packaging demands of retail, bulk and gift box products.
Our Tailored Complete Solution
We provide a turnkey, fully integrated 4-material mixed weighing and packaging solution, with exclusive 4-mix mode intelligent control system, modular design optimized for multi-ingredient product characteristics. The standard configuration fully covers the whole process from material feeding to finished product collection, and can be flexibly adjusted according to your production capacity, material types and packaging specifications.
Core Solution Units
1.16-head 5.0L Fruit and Vegetable Weigher (4-mix Mode)
·Exclusive 4-group independent design: 16 weighing hoppers are divided into 4 independent groups, each group corresponds to one material, realizing synchronous high-precision weighing of 4 different materials at the same time, completely avoiding cross-contamination between materials.
·5.0L large-capacity hopper with smooth anti-breakage structure, specially optimized for fragile fruits, vegetables and nuts, effectively avoiding material crushing and scratching during weighing, ensuring the complete appearance of high-value raw materials.
·Equipped with high-precision load cells, weighing accuracy up to ±0.5g, ensuring consistent formula ratio and net content of each package, fully complying with international food metering regulations.
·Built-in independent temporary storage hopper with lifting piston cylinder, which temporarily stores the 4 weighed materials synchronously, and discharges materials uniformly after receiving the signal from the packaging machine, ensuring uniform mixing of materials.
·Full SUS304 food-grade stainless steel structure, IP65 waterproof design, easy to disassemble and clean, no sanitary dead corners.
2.Inclined Elevator (2 Long + 2 Short) + Vibrating Feeder + Main Control Box
·4 sets of independent inclined elevators (2 long + 2 short), corresponding to 4 materials one by one, realizing independent closed conveying for each material, completely avoiding cross-contamination, and adapting to different feeding positions of the multihead weigher.
·4 sets of independent variable frequency vibrating feeders, distributed around the multihead weigher, accurately controlling the feeding speed of each material according to its characteristics, ensuring uniform and stable feeding, no material accumulation, no blockage, and long-term stable weighing accuracy.
·Intelligent main control box, realizing full signal linkage and synchronous control of all units of the whole line, with humanized touch screen operation, one-click formula switching, and real-time production data monitoring.
3.Supporting Platform
·Heavy-duty food-grade SUS304 stainless steel supporting platform with anti-slip design and safety guardrails, providing stable and safe installation space for the multihead weigher, effectively reducing the impact of equipment vibration on weighing accuracy.
·Humanized design with maintenance access and cleaning space, facilitating daily equipment maintenance, disassembly and high-pressure cleaning, adapting to the frequent cleaning needs of food-grade production.
4.Bowl-type Elevator
·Professional food-grade bowl-type elevator with flexible anti-drop hoppers, realizing smooth and stable lifting of the mixed 4 materials to the feeding hopper of the packaging machine, without breaking fragile materials, without disturbing the uniform mixing state of materials, and no material scattering or leakage.
·Full SUS304 stainless steel structure, fully enclosed design, no sanitary dead corners, easy to clean and maintain.
5.520 Vertical Form Fill Seal (VFFS) Machine
·High-performance 520-type vertical packaging machine, specially optimized for multi-material mixed products, automatically completing bag forming, material filling, airtight sealing, date coding and bag cutting in one go.
·Compatible with pillow bags, quad-seal bags, gusset bags and other mainstream retail bag types, suitable for packaging specifications from 100g to 5kg, with optimized sealing structure to ensure firm and uniform sealing, lock product freshness, and prevent moisture regain and oxidation.
·Full signal linkage with the multihead weigher, realizing precise synchronous discharging and filling, ensuring accurate formula ratio in each bag.
6.Finished Product Conveyor
·Food-grade finished product conveying equipment, which stably transports the sealed finished packages from the packaging machine outlet to the rotary collecting table, matching the production beat of the front-end equipment to ensure non-stop continuous production.
·Anti-slip and anti-drop design, no damage to the packaging bag, maintaining the good appearance of the finished product.
7.Rotary Collecting Table
·360° rotary finished product collecting table, with multi-station design, which continuously collects the finished packages conveyed by the finished product conveyor, facilitating manual sorting, inspection and stacking, greatly improving the efficiency of the final finishing link, and adapting to the high-speed continuous production of the whole line.
·Full SUS304 stainless steel structure, smooth surface, easy to clean, in line with food-grade production requirements.
Standard Automated Workflow
·4 different materials are manually poured into the corresponding independent silos of the 4 inclined elevators (2 long + 2 short). The elevators lift the materials to the corresponding trays of the vibrating feeders distributed around the 16-head multihead weigher, and supply the materials to the independent weighing hopper groups of the multihead weigher through vibration feeding.
·The multihead weigher operates in exclusive 4-mix mode, completing synchronous high-precision weighing of the 4 materials at the same time. The 4 weighed materials fall through the downward sloping chutes, and are temporarily stored in the discharge hopper blocked by the lifting piston cylinder. The multihead weigher sends a ready signal to the packaging machine and waits for the discharge request signal.
·After receiving the discharge signal from the packaging machine, the piston cylinder opens synchronously, and the 4 weighed materials are discharged uniformly into the bowl-type elevator. The bowl-type elevator smoothly lifts the fully mixed 4 materials into the feeding hopper of the 520 VFFS machine.
·The 520 VFFS machine automatically completes bag forming, material filling, airtight sealing, date coding and finished bag cutting in one continuous process.
·The sealed bagged finished products are transported from the packaging machine outlet to the rotary collecting table through the finished product conveyor for sorting, inspection and stacking, realizing fully automated continuous production of the whole line.
Final Achievable Production Effects
·Ultra-high formula accuracy & full compliance: Independent synchronous weighing for 4 materials with ratio deviation controlled within ±0.5g, completely solving the material layering and ratio inconsistency problem of traditional pre-mixing process, 100% complying with FDA, EU and other international food labeling and metering regulations, eliminating product recall risks.
·Ultra-low material breakage rate & reduced waste: Full-line anti-breakage smooth structure design, fragile material breakage rate ≤0.3%, reducing raw material waste by more than 85% compared with traditional equipment, while maintaining the complete appearance and premium quality of high-value raw materials.
·Zero cross-contamination & food safety compliance: Fully independent conveying, weighing and feeding channels for 4 materials, completely avoiding cross-contamination, flavor mixing and color mixing. Full food-grade SUS304 stainless steel structure, no sanitary dead corners, tool-free quick disassembly design, fully meeting FDA, BRC, HACCP and other international food safety certification requirements.
·Fully automated production & cost reduction: Full-process automation from material lifting to finished product collection reduces manual labor demand by more than 90%, greatly cutting labor costs, eliminating human errors such as wrong filling and missing filling, and increasing overall production efficiency by 4-5 times compared with semi-manual production lines.
·One-click fast formula changeover & high flexibility: Exclusive 4-mix control system supports one-click switching of material ratio, packaging weight and product formula, with debugging time controlled within 5 minutes, perfectly adapting to multi-SKU and small-batch customized production demands, greatly reducing production downtime.
·Uniform mixing & improved customer experience: Synchronous weighing and uniform discharging design ensures consistent mixing of 4 materials in each individual package, providing consumers with a stable taste experience, greatly improving product repurchase rate and brand loyalty.
·Stable long-term operation & low maintenance cost: Full signal linkage between all units, optimized anti-blocking and wear-resistant structure, supporting 24/7 continuous stable operation, equipment failure rate reduced by more than 85%, greatly cutting unplanned downtime and later maintenance costs.
·Strong compatibility & scalability: Adaptable to materials of different characteristics, packaging specifications from 100g to 5kg, and various mainstream bag types. Can be flexibly expanded with online metal detector, check weigher, labeling machine and other auxiliary units according to production needs, and seamlessly connected with your front-end production line and back-end palletizing system.
Contact Us
Customized solutions are available for different production capacity demands, material types, formula ratios, packaging specifications and workshop layouts. Contact our professional technical team now to get an exclusive quotation and customized turnkey solution for your multi-material mixed packaging production.
