Automatic 6-Type Chocolate Beans Weighing and Filling System | Multi-Compartment Chocolate Gift Box Production Line
This fully automated, high-precision production system is exclusively customized for 6-type chocolate bean products, including sugar-coated chocolate beans, filled chocolate beans, nut chocolate beans, colored chocolate beans, pure cocoa butter chocolate beans and other assorted chocolate products. It realizes one-stop closed-loop production from multi-material independent weighing, precise 6-compartment synchronous filling, automatic carton dispensing to fully automatic capping. This turnkey solution is tailor-made for chocolate factories and confectionery manufacturers, perfectly solving core pain points in high-end assorted chocolate gift box production, fully complying with global food safety standards, and helping brands achieve efficient, compliant and high-quality mass production.
Industry Pain Points
·Uncontrollable compartment weight accuracy and compliance risks: Traditional manual or ordinary equipment cannot guarantee consistent net content of 6 independent compartments, resulting in frequent overweight/underweight issues, uneven portion distribution, which damages the brand image of high-end gift boxes and brings non-compliance risks with international food metering regulations.
·Severe material mixing and cross-contamination: Chocolate beans of different flavors, colors and formulas are prone to mixing during filling, leading to unqualified product appearance, flavor cross-contamination, and whole-box scrapping, causing huge raw material and packaging waste.
·High product breakage rate and poor appearance: The sugar coating and crisp layer on the surface of chocolate beans are easily broken and scratched during conveying and weighing. The breakage rate of ordinary equipment is as high as 5% or more, which seriously reduces the qualified rate of finished products and product premium capacity.
·Extremely low manual production efficiency and high cost: Traditional gift box production requires a lot of manual work for material distribution, weighing, box filling and capping, with extremely low single-shift capacity, high labor cost, inability to meet peak season order demands, and frequent wrong/missing filling caused by manual operation.
·Food hygiene and compliance risks: Chocolate is a high-risk food, frequent manual contact brings microbial contamination risks. Ordinary equipment has sanitary dead corners, is difficult to clean, and cannot meet the requirements of FDA, BRC, IFS and other international high-end food certification, which restricts export to the global market.
·Serious waste from whole-box scrapping: Traditional production cannot individually detect and reject unqualified products in a single compartment. Any problem in one compartment leads to direct scrapping of the whole box, resulting in serious waste of raw materials and packaging materials, and a sharp increase in production costs.
·Poor multi-station synchronization and high defect rate: Filling of 6 materials and 6 compartments requires extremely high equipment synchronization. Ordinary production lines are prone to filling misalignment, missing filling and wrong filling, resulting in a large number of unqualified products and low production efficiency.
Core Customer Demands
·6-material independent high-precision weighing system, to ensure accurate and consistent net content of each compartment in the gift box, fully complying with international food metering regulations.
·Anti-breakage and anti-cross-contamination design, to protect the complete appearance and sugar coating of chocolate beans, and completely avoid material mixing and flavor cross-contamination between different types of chocolate beans.
·Independent single-compartment rejecting function, to eliminate unqualified products without scrapping the whole box, greatly reducing raw material and packaging waste.
·Fully automated synchronous production line, realizing one-stop production from automatic carton dispensing, precise 6-compartment filling to automatic capping, eliminating manual errors and improving production efficiency.
·Full food-grade SUS304 stainless steel structure, no sanitary dead corners, easy to disassemble and clean, fully meeting FDA, BRC, IFS, GMP and other international food safety certification requirements.
·Stable continuous production capacity, adapting to long-term mass production of chocolate gift boxes, especially peak season order demands.
·Strong flexibility, supporting fast switching of different filling weights, chocolate bean types and gift box specifications, adapting to multi-SKU production demands of chocolate brands.
Our Tailored Complete Solution

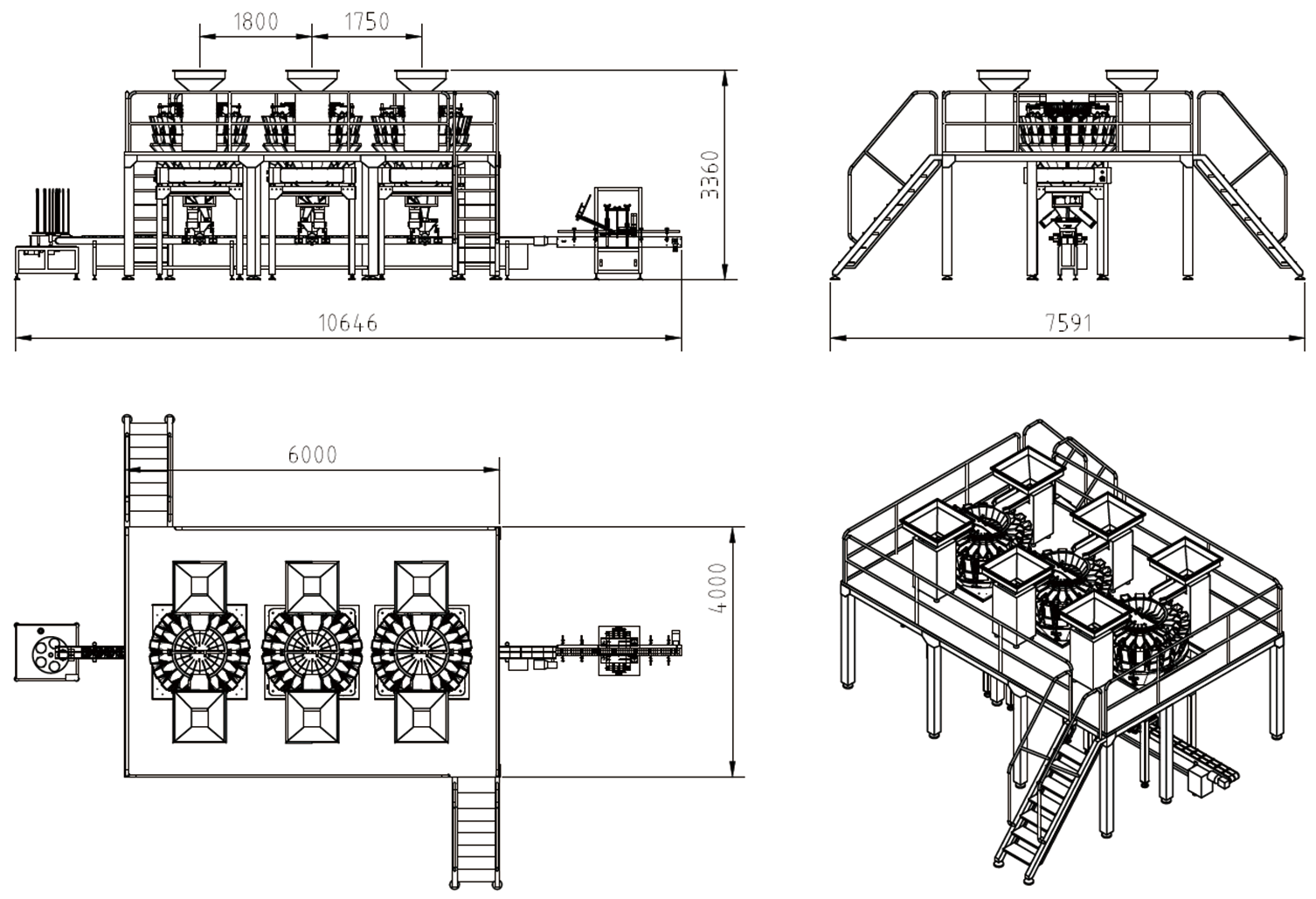

We provide a turnkey, fully automated weighing and filling solution exclusively customized for 6-type chocolate bean gift box production. The system adopts a linear layout design of 3 sets of 20-head weighers, realizing independent high-precision weighing of 6 different chocolate bean materials, precise 6-compartment synchronous filling, and fully automated production from carton dispensing to capping. The modular design perfectly solves all core pain points in chocolate gift box production, and can be flexibly adjusted according to your production capacity, gift box specifications and product types.
Core Solution Units
1.20-head 0.5L Weigher (AB Scale, 3 Sets Total)
·Exclusive AB dual-channel design for multi-material production: each weigher independently weighs 2 different types of chocolate beans, 3 sets of weighers realize synchronous high-precision weighing of 6 materials in total, completely avoiding material mixing and cross-contamination.
·0.5L small-capacity hopper with anti-breakage smooth structure, specially optimized for fragile chocolate beans, effectively avoiding sugar coating damage and bean breakage during weighing.
·Equipped with high-precision load cell, weighing accuracy up to ±0.1g, ensuring consistent net content of each compartment, fully complying with international food metering regulations.
·Full SUS304 food-grade stainless steel structure, IP65 waterproof design, easy to disassemble and clean, no sanitary dead corners.
2.Vibrating Feeder (for 6 Types of Materials)
·6 sets of independent food-grade vibrating feeders, corresponding to 6 types of chocolate beans one by one, distributed on both sides of the multihead weighers, realizing independent and stable feeding for each material.
·Variable frequency adjustable vibration speed, gentle feeding without impact, ensuring uniform material supply, no bean breakage, and stable long-term weighing accuracy.
·Fully enclosed structure, no material scattering, no cross-contamination between different materials, easy to clean and maintain.
3.Supporting Platform
·Heavy-duty food-grade SUS304 stainless steel supporting platform with anti-slip design and safety guardrails, providing stable installation space for 3 sets of multihead weighers, effectively reducing the impact of equipment vibration on weighing accuracy.
·Humanized design with maintenance access and cleaning space, facilitating daily equipment maintenance, disassembly and high-pressure cleaning, adapting to the frequent cleaning needs of food production.
4.Independent Rejecting and Storing Hopper
·6 sets of independent rejecting and storing hoppers, each corresponding to 1/6 compartment of the chocolate gift box, realizing independent weighing, independent storage and independent rejecting for each material.
·Automatically reject unqualified products with weight deviation, without affecting the filling of other qualified compartments, completely avoiding whole box scrapping, greatly reducing raw material and packaging waste.
·Smooth food-grade inner wall, no material residue, no bean jamming, ensuring accurate and stable material discharge into the corresponding compartment of the gift box.
5.Automatic Carton Dispenser
·High-precision automatic gift box dispensing equipment, automatically storing, unfolding and placing empty chocolate boxes onto the filling conveyor line accurately, no manual intervention, adapting to different sizes of 6-compartment chocolate gift boxes.
·Stable and continuous box feeding, matching the production beat of the weighing and filling system, ensuring no production interruption.
·Full SUS304 stainless steel structure, no damage to the surface of the gift box, maintaining the premium appearance of the packaging.
6.3-station Filling Conveyor Line
·High-precision 3-station intermittent conveyor line, with box positioning design, running one compartment at a time, accurately conveying the chocolate boxes to the position directly under each multihead weigher and corresponding storing hopper.
·The linear layout of 3 multihead weighers, with the spacing between weighers being an integral multiple of the box compartment spacing, ensuring that the 6 compartments of the chocolate box are fully filled accurately when the box passes under the 3 weighers in sequence.
·Fully synchronized signal linkage with the weighers, carton dispenser and capping machine, realizing precise filling without misalignment, missing filling or wrong filling.
7.Automatic Capping Machine
·Full-automatic high-precision capping equipment, automatically completing lid positioning, fastening and pressing for the filled chocolate gift boxes, with firm and consistent capping effect, no damage to the gift box.
·Fully linked with the filling conveyor line, realizing continuous non-stop production after filling, greatly improving production efficiency.
·Adaptable to different types of gift box lids, with fast specification changeover, meeting multi-SKU production demands.
Standard Automated Workflow
·6 different types of chocolate beans are manually added into the corresponding independent bins of the vibrating feeders distributed on both sides of the 3 sets of 20-head multihead weighers. Each 20-head AB scale weigher independently weighs 2 types of materials, and 3 sets of weighers complete synchronous high-precision weighing of 6 types of materials in total.
·Underneath each multihead weigher, there are independent rejecting and storing hoppers, each hopper corresponds to 1/6 compartment of the chocolate gift box. Unqualified products with weight deviation are automatically rejected by the independent system, and qualified weighed materials are stored in the corresponding hopper accurately.
·The automatic carton dispenser automatically unfolds and places empty 6-compartment chocolate boxes onto the 3-station filling conveyor line. The conveyor line runs intermittently one compartment at a time, accurately conveying the boxes to the position directly under the corresponding storing hoppers of the 3 multihead weighers. The spacing between the 3 weighers is set as an integral multiple of the box compartment spacing, ensuring that all 6 compartments of the chocolate box are fully and accurately filled in sequence when the box passes under the 3 weighers.
·After the 6-compartment filling is completed, the filling conveyor line conveys the filled chocolate boxes to the automatic capping machine. The boxes pass through the capping machine continuously, and the automatic lid fastening and pressing process is completed fully automatically.
·The finished sealed chocolate gift boxes are conveyed to the subsequent inspection, labeling or outer packaging link, realizing fully automated continuous production of the whole line.
Final Achievable Production Effects
·Ultra-high weighing accuracy & full compliance: Independent weighing for each material with accuracy up to ±0.1g, 100% ensuring consistent net content of each compartment, fully complying with FDA, EU and other international food metering regulations, eliminating net content non-compliance risks.
·Zero material mixing & cross-contamination: Fully independent feeding, weighing and filling channels for 6 types of materials, completely avoiding material mixing, flavor cross-contamination and color cross-contamination, unqualified rate caused by mixing reduced to 0.
·Ultra-low product breakage rate: Anti-breakage smooth structure design for the whole line, chocolate bean breakage rate ≤0.2%, completely protecting the integrity of sugar coating and appearance of chocolate beans, greatly improving finished product qualification rate and product premium capacity.
·Fully automated production & cost reduction: Full-process automation from carton dispensing to capping reduces manual labor demand by more than 95%, greatly cutting labor costs, eliminating manual errors such as wrong filling and missing filling, and increasing overall production efficiency by 6-8 times compared with manual production.
·Greatly reduced production waste: Independent single-compartment rejecting function avoids whole box scrapping, reducing raw material and packaging waste by more than 90% compared with traditional production, greatly lowering production costs.
·Full food-grade compliance & export qualification: Full food-grade SUS304 stainless steel structure, no sanitary dead corners, IP65 waterproof design for core units, easy to disassemble and clean, fully meeting FDA, BRC, IFS, GMP and other international food safety certification requirements, helping you smoothly enter the global high-end chocolate market.
·Stable synchronous production & low failure rate: Full signal linkage between all units, precise intermittent conveying design, filling misalignment rate reduced to 0, supporting 24/7 long-term continuous stable operation, equipment failure rate reduced by more than 85%, greatly reducing unplanned downtime and later maintenance costs.
·Strong flexibility & multi-SKU adaptability: One-click adjustment of filling weight for each compartment, fast changeover of chocolate bean types and gift box specifications, debugging time controlled within 10 minutes, perfectly adapting to multi-SKU and small-batch customized production demands of chocolate brands.
Contact Us
Customized solutions are available for different production capacity demands, chocolate bean types, gift box specifications and workshop layouts. Contact our professional technical team now to get an exclusive quotation and customized turnkey solution for your chocolate production.
