Full-Auto Pet Food Formula Weighing & Filling System for Dog Treats | Scalable Multi-Capacity Production Line
This fully integrated, modular intelligent production system is exclusively customized for dog treat manufacturing, widely applicable to air-dried meat jerky, freeze-dried treats, dental chews, filled snacks, meat pellets, functional dog treats, prescription diet treats and other diversified dog food products. It covers the full closed-loop production process from formula-based raw material mixing, high-precision quantitative weighing, automatic filling to packaging and traceability labeling. With dual configurable production lines for small-batch flexible production and large-volume mass manufacturing, this turnkey solution perfectly meets the full-scenario demands from new product R&D trial production, DTC customized small-batch orders to large-scale bulk order production, fully complies with global pet food safety and nutritional standards, and helps manufacturers achieve efficient, compliant and flexible production.
Industry Pain Points
·Uncontrollable formula accuracy and compliance risks: Traditional pre-mixing process for multi-ingredient dog treats causes severe material layering and uneven distribution, leading to unstable nutritional ratio in individual packages. This fails to meet the strict standards of AAFCO, FEDIAF and other international pet food regulatory bodies, especially for functional and prescription treats, bringing huge product recall risks and irreversible brand reputation damage.
·Poor production flexibility and high equipment investment: Traditional production lines can only adapt to single fixed-capacity production, unable to simultaneously meet the demands of R&D trial production, small-batch customized orders and large-scale mass manufacturing. Enterprises need to invest in multiple independent production lines, resulting in high equipment cost, large workshop space occupation and low asset utilization rate.
·Poor compatibility with diverse dog treat forms: Dog treats have vastly different physical properties (irregular jerky, fragile freeze-dried chunks, hard dental chews, tiny meat pellets, powdered functional additives). Ordinary weighing and filling equipment cannot balance weighing accuracy and raw material integrity, resulting in high raw material breakage rate, serious waste, and poor finished product appearance.
·Disconnected production process and high cross-contamination risk: Traditional production has disconnected links between mixing, weighing, filling and packaging, requiring extensive manual intervention, leading to soaring labor costs, frequent human errors, and high cross-contamination risks, which violates food-grade production specifications for pet food.
·Long product changeover time and low production efficiency: Switching between different formulas, specifications and packaging forms for multi-SKU dog treats requires long debugging time on traditional equipment, resulting in frequent unplanned downtime, unable to adapt to the fast-response demands of e-commerce and DTC customized orders.
·Difficult full-process traceability for export compliance: Strict batch traceability is mandatory for dog treats exported to Europe, North America and other mainstream markets. Traditional production lines cannot realize full-link data recording and traceability from formula mixing to finished product labeling, which restricts manufacturers from entering the global high-end market.
·Hard to meet food-grade cleaning requirements: Dog treat raw materials are prone to oil residue and bacterial growth. Ordinary equipment has sanitary dead corners, is difficult to disassemble and clean, and cannot meet the strict hygiene requirements of FDA, BRC and GMP food safety certifications.
Core Customer Demands
·Full-process closed-loop formula control, to ensure accurate and consistent nutritional ratio of each batch and each individual package, fully complying with international pet food nutritional and safety standards.
Scalable dual production line configuration, one set of system supports free switching between small-batch flexible production and large-volume mass manufacturing, reducing equipment investment and workshop space occupation.
·Full compatibility with diverse dog treat forms, adapting to jerky, freeze-dried products, dental chews, meat pellets, powdered additives and other raw materials, balancing high weighing accuracy and raw material integrity to reduce production loss.
·Fully automated continuous production from raw material mixing to finished product output, minimizing manual intervention, avoiding cross-contamination, cutting labor costs, and improving overall production efficiency.
·Fast formula and specification changeover, one-click switching between different production modes, formulas and packaging specifications, with short debugging time, reducing downtime and meeting multi-SKU fast-response production demands.
·Full food-grade SUS304 stainless steel structure, no sanitary dead corners, tool-free quick disassembly for easy cleaning and disinfection, fully meeting FDA, BRC, GMP and other global food safety certification requirements.
·Full-link quality control and traceability, integrated with online weighing, granule counting and traceability labeling functions, to achieve 100% finished product inspection, full data traceability, and reduce customer complaint risks.
·Strong scalability, can expand the number of raw material bins and weighing units according to formula requirements, and can be seamlessly connected with the enterprise's existing ERP and MES systems to realize digital production management.

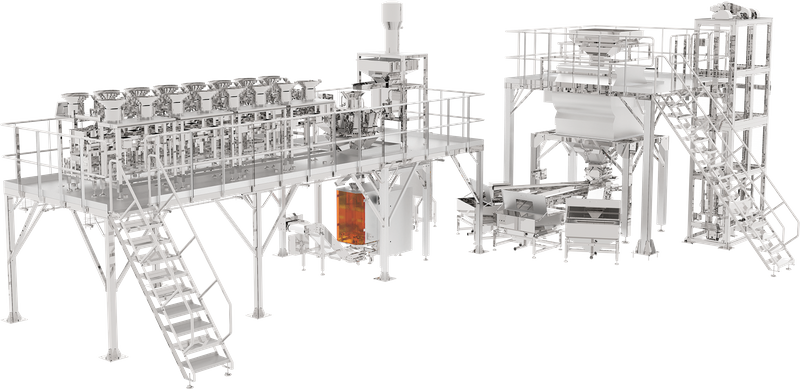

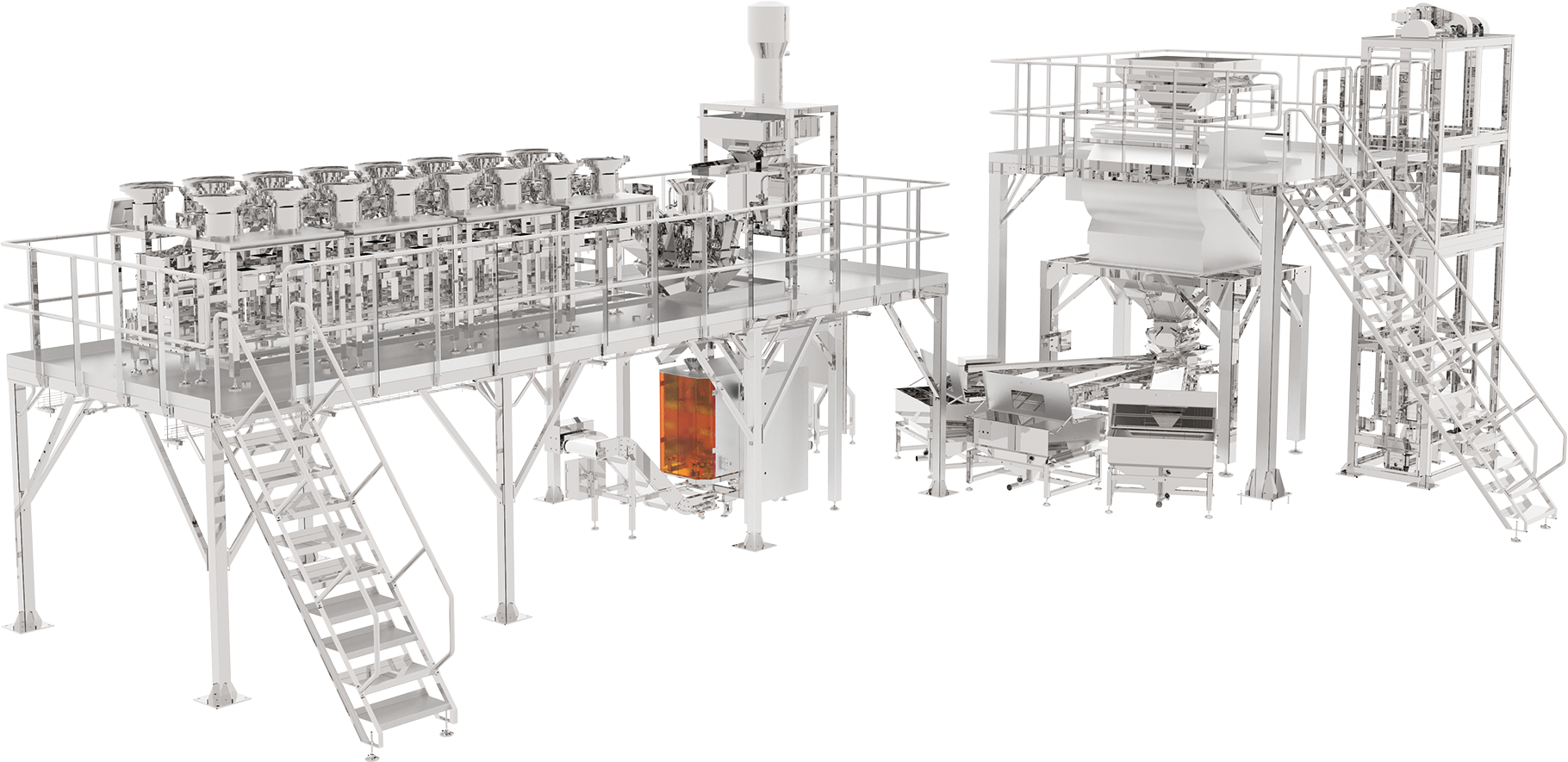

Our Tailored Complete Solution
We provide a modular, fully customizable turnkey formula weighing and filling solution for dog treat manufacturers. The system is composed of three core functional units, which can be flexibly switched according to production demands, perfectly covering the whole process from raw material mixing to finished product output, and solving all core pain points in dog treat production.
Core Solution Units
① Mixing Materials Section
This unit realizes uniform mixing of multi-ingredient dog treat formulas, ensures consistent formula ratio of each batch, and can be flexibly docked with the small-output or large-output production line downstream.
·Mixing Materials Platform: Heavy-duty food-grade SUS304 stainless steel operating platform with safety guardrails and maintenance access, providing stable support for the whole mixing process, and facilitating daily operation, maintenance and cleaning.
·Vertical Lifting Elevator: Fully enclosed food-grade vertical lifting equipment, with anti-scattering, anti-breakage and anti-cross-contamination design, smoothly conveying various raw materials to Storage Bin 1 without damaging the integrity of fragile raw materials.
·Storage Bin 1: Food-grade stainless steel raw material storage bin with automatic material level sensing control, realizing independent sealed storage of different raw materials, preventing cross-flavor and contamination, and providing continuous and stable feeding for the blending machine.
·Blending Machine: Professional food-grade mixing equipment optimized for dog treat formulas, realizing uniform mixing of powder, granule, flake and irregular raw materials without layering and dead corners, ensuring 100% consistent formula ratio of each batch.
·Temporary Storage Bin: Sealed dust-proof and moisture-proof storage bin for mixed raw materials, providing buffer storage to ensure continuous and stable feeding for the downstream weighing process, avoiding production interruption.
·Conveyor: Food-grade fully sealed conveyor, smoothly conveying the mixed raw materials to Storage Bin 2, with no material residue, no scattering, and maintaining the integrity of raw materials.
·Storage Bin 2: Finished mixed raw material storage bin with intelligent material level control, providing stable feeding for the downstream production line, and can be flexibly docked with the small-output or large-output production line according to production demands.
·Multihead Weigher: High-precision multihead weigher optimized for mixed dog treat raw materials, realizing pre-quantitative weighing, ensuring the accuracy of raw material ratio, and providing stable feeding for the downstream filling process.
② Small Output Production Line
This compact flexible production line is specially designed for new product R&D trial production, small-batch DTC customized orders, sample production and pet store exclusive customized orders, with small footprint, flexible debugging and high precision.
·Small Output Production Line Platform: Compact food-grade SUS304 stainless steel operating platform, with small footprint, flexible layout, providing stable support for the production line, and facilitating operation, debugging and cleaning.
·Vacuum Feeder: Fully enclosed vacuum feeding equipment, realizing dust-free and non-contact automatic feeding, no cross-contamination, perfectly adapting to tiny meat pellets, powdered functional additives and other fine raw materials.
·Vibrating Feeder: Variable frequency vibration feeding equipment, accurately controlling feeding speed, realizing uniform and stable feeding, avoiding material accumulation and breakage, adapting to irregular dog treat raw materials such as jerky and freeze-dried chunks.
·10 Head Weigher: 10-head high-precision multihead weigher optimized for small-batch and small-specification packaging, with weighing accuracy up to ±0.2g, perfectly adapting to 50g-500g small package dog treats, ensuring accurate net content of each package.
·Packaging Machine: Full-automatic packaging machine, compatible with premade bags and roll film forming, supporting stand-up pouches, zipper bags, flat bags and other mainstream bag types, automatically completing bag forming, filling, sealing, date coding in one go, with firm sealing to lock freshness and prevent moisture.
·Finished Product Conveyor: Food-grade finished product conveying equipment, stably transporting the packaged finished products to the subsequent counting and inspection link, matching the production beat of the small-output line.
·Granules Counter Conveyor: Conveying line with guiding and positioning design, accurately transporting finished products to the granule counter, ensuring 100% accurate counting without missing inspection.
·4 Head Granules Counter: 4-head high-precision granule counting equipment, optimized for small-specification quantitative granule dog treats and trial packs, realizing accurate counting, cooperating with the multihead weigher to achieve dual quality control, and completely eliminating missing filling and under-filling issues.
③ Large Output Production Line
This high-speed mass manufacturing production line is specially designed for e-commerce hit products, bulk brand orders and large-scale continuous production, with high production efficiency, stable operation and full traceability function.
·Vacuum Feeder: Large-flow fully enclosed vacuum feeding equipment, realizing continuous, dust-free and fully automatic feeding, adapting to 24/7 continuous mass production, no cross-contamination, and easy to clean.
·Vibrating Feeder: Large-flow variable frequency vibration feeding equipment, providing stable and uniform feeding for high-speed production, avoiding material accumulation and breakage, ensuring long-term stable weighing accuracy.
·14 Head Weigher: 14-head high-speed high-precision multihead weigher optimized for large-volume production, with high-speed weighing capacity 2-3 times that of the 10-head weigher, stable weighing accuracy ±0.3g, perfectly adapting to 100g-5kg medium and large package dog treats, meeting the demands of continuous mass production.
·Bag Packaging Machine: High-speed full-automatic bag packaging machine, compatible with various mainstream bag types, completing bag forming, filling, sealing, coding at high speed in one go, with optimized sealing structure to avoid missing sealing and bag breaking, ensuring 100% qualified finished products for mass production.
·Paging Labeling Machine: Full-automatic paging and labeling equipment, supporting real-time printing of product formula, production batch, shelf life and traceability QR code, realizing automatic paging and accurate labeling, completing full-link traceability of finished products, and meeting the traceability requirements of global export markets.
Standard Automated Workflow
1.Raw material feeding and formula mixing:
Various raw materials of dog treats are put into the corresponding feeding bins, the vertical lifting elevator conveys the raw materials to Storage Bin 1, and the blending machine completes uniform mixing according to the preset formula to ensure consistent ratio of each batch. The mixed raw materials are buffered in the temporary storage bin, then conveyed to Storage Bin 2, which can be flexibly docked with the small-output or large-output production line according to production demands.
2.Flexible production mode switching:
A. Small Output Production Mode: Raw materials are conveyed to the 10 head weigher through the vacuum feeder, completing high-precision quantitative weighing for small-specification packages. The weighed materials enter the packaging machine to complete automatic packaging, and the finished products are conveyed to the 4 head granules counter through the finished product conveyor to complete counting quality control, and finally qualified finished products are output.
B. Large Output Production Mode: Raw materials are conveyed to the 14 head weigher through the large-flow vacuum feeder, completing high-speed quantitative weighing for mass production. The weighed materials enter the high-speed bag packaging machine to complete automatic packaging, then the paging labeling machine completes product information labeling and traceability coding, and finally qualified mass-produced finished products are output.
C.Full-process quality control: From formula ratio control in the mixing section, to net content detection in the weighing link, to final counting/labeling traceability, the whole link data is recorded and traceable, and unqualified products are automatically eliminated, ensuring 100% of finished products meet the standards.
Final Achievable Production Effects
·Ultimate formula accuracy and compliance guarantee: Full closed-loop formula control, mixing uniformity ≥99%, single package weighing accuracy up to ±0.2g, completely solving the problem of material layering and uneven ratio, 100% complying with AAFCO, FEDIAF, FDA, BRC and other international pet food standards, and eliminating product recall risks.
·Industry-leading flexible production capacity: One set of system realizes one-click switching between small-batch R&D trial production and large-volume mass manufacturing, replacing 2-3 independent production lines, reducing equipment investment cost by more than 60%, saving workshop space by more than 50%, and perfectly covering full-scenario production demands.
·Full material compatibility and ultra-low production loss: Optimized conveying and weighing structure for diverse dog treat forms, raw material breakage rate ≤0.3%, reducing raw material waste by more than 80% compared with traditional equipment, while maintaining the complete appearance and premium quality of finished products.
·Fully automated production and cost reduction: Full-process automation from mixing to finished product labeling reduces manual labor demand by more than 90%, greatly cutting labor costs and cross-contamination risks. The large-output mode increases production efficiency by 4-5 times, and the small-output mode shortens product changeover debugging time to within 5 minutes, greatly reducing downtime and improving comprehensive production efficiency.
·Full-link quality control and traceable management: Integrated online weighing, granule counting and traceability labeling functions reduce the unqualified rate of finished products to below 0.1%. All production data is recordable and traceable, fully meeting the export traceability requirements of the EU, North America and other mainstream markets, helping brands expand the global market.
·Food-grade compliant design and stable operation: Full food-grade SUS304 stainless steel structure, no sanitary dead corners, tool-free quick disassembly design, reducing cleaning time by more than 70%, fully meeting GMP food safety production requirements. The optimized wear-resistant and anti-blocking structure supports 24/7 continuous stable operation, reducing equipment failure rate by more than 85%, and greatly reducing later maintenance costs and unplanned downtime.
·Strong scalability and compatibility: The number of raw material bins and weighing units can be expanded according to formula requirements, compatible with various bag types and packaging specifications, and can be seamlessly connected with the enterprise's existing ERP and MES systems to realize digital factory upgrading, adapting to the production demands of enterprises at different development stages.
Contact Us
Customized solutions are available for different production capacity demands, dog treat product types, formula ingredient quantities, packaging specifications and workshop layouts. Contact our professional technical team now to get an exclusive quotation and customized turnkey solution for your dog treat production.
