Full-Automatic Vegetables Weighing and Packaging System | End-to-End Bag & Carton Packaging Line

Tailor-made one-stop packaging solution for fresh vegetable processors, covering precision weighing, retail bagging, bulk cartoning and full-process quality control

Industry Pain Points We Solve

• ·Inconsistent manual weighing causes severe product giveaway, weight non-compliance and costly customer complaints

• ·Heavy reliance on manual labor leads to low production efficiency, high labor costs and frequent human error

• ·Fragile fresh vegetables suffer high damage and waste during manual handling and packaging

• ·Foreign body contamination risks fail to meet strict international food safety standards (BRC, FDA, HACCP)

• ·Complex and time-consuming format changeover between retail bag and bulk carton packaging causes long production downtime

• ·Lack of in-line quality inspection leads to unqualified products entering the market, damaging brand reputation

Core Customer Requirements We Meet

• ·High-precision, stable weighing for fresh vegetables with minimal weight error and raw material waste

• ·A single integrated line that supports both small retail bags (2kg) and bulk cartons (10kg) packaging

• ·Full automation to cut labor reliance, reduce labor costs and minimize product damage

• ·Food-grade equipment design fully compliant with global food safety regulations

• ·In-line dual quality inspection (weight verification + metal detection) to ensure 100% qualified products

• ·High production capacity with easy operation and quick format changeover

• ·End-to-end automated handling from raw vegetable feeding to finished carton output

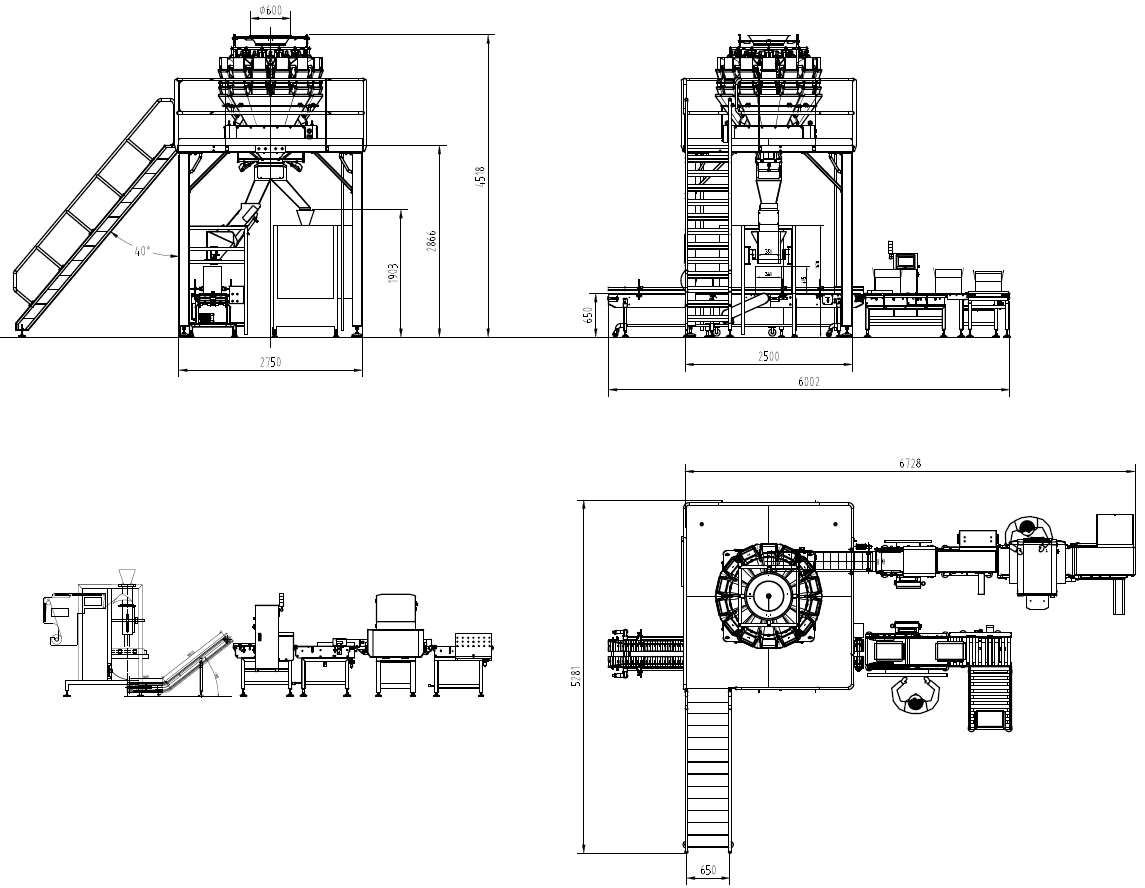

Our Complete Tailored Solution

Core System Units

1. 14-Head 5L Multihead Weigher (Stamped Dimple Plate) + 1-2 Temporary Distributors: High-precision weighing with anti-stick dimple plate for fresh vegetables, flexible material distribution for bag and carton production lines

2. Food-Grade Working Platform: Ergonomic, safe operation and maintenance access, compliant with food workshop standards

3. Vertical Form Fill Seal (VFFS) Packaging Machine: Automatic forming, filling and sealing for 2kg retail vegetable bags

4. Finished Product Conveyor: Gentle, damage-free transfer of bagged products to subsequent inspection stations

5. CW300 In-line Check Weigher: 100% weight verification for bagged products, real-time rejection of non-compliant items

6. High-Sensitivity Metal Detector: Detects ferrous, non-ferrous and stainless steel foreign bodies to guarantee food safety

7. Intelligent Temporary Storage Device: Buffers weighed materials for 10kg bulk carton packaging, completing target weight filling in 2-3 cycles

8. Automatic Carton Conveying Line: Realizes automatic carton feeding, positioning and continuous conveying for bulk packaging

9. CW500 Carton Check Weigher: Final weight re-inspection for finished cartons, ensuring full compliance with weight standards




Standard Automated Workflow

1. Material Feeding: Fresh vegetables are manually poured into the inclined elevator hopper, which automatically lifts materials to the inlet hopper of the multihead weigher.

2. Weighing & Distribution: The multihead weigher completes high-precision weighing, then discharges materials into the temporary storage bin. The distributor allocates materials to the bag packaging line or carton packaging line according to production demand.

3. Retail Bag Packaging Process: The vertical packaging machine sends a filling request for 2kg target weight bags. Bagged products are transferred via the finished product conveyor to the CW300 check weigher for weight verification, then pass through the metal detector for foreign body inspection.

4. Bulk Carton Packaging Process: The temporary storage device sends a filling request for 10kg target weight cartons, with the weigher completing filling in 2-3 cycles to ensure accuracy. When the carton reaches the discharging station, the sensor triggers a feeding signal: the guide bucket lowers into the carton, and the scraper hopper door opens for discharging.

5. Final Inspection & Output: After discharging is completed, the carton blocking cylinder of the conveying line retracts, and the filled carton is conveyed to the CW500 check weigher for final weight re-inspection, completing the full packaging process.

Final Results & Proven Benefits

• ·Ultra-High Weighing Accuracy: ±0.5-1g weighing precision, minimizing product giveaway and reducing raw material waste by up to 2%

• ·Significant Efficiency Improvement: Fully automated production cuts manual labor by 80%, with a stable output of 30-60 bags/min for retail packaging and continuous bulk carton packaging

• ·100% Food Safety Compliance: All food-contact parts adopt food-grade 304 stainless steel, with in-line dual inspection system, fully meeting BRC, FDA, HACCP and other international food safety standards

• ·Flexible Dual-Mode Production: One-click format switch between 2kg retail bags and 10kg bulk cartons, minimizing production downtime

• ·Ultra-Low Product Damage: Gentle material handling throughout the whole line, reducing fresh vegetable damage rate by over 90% compared with manual operation

• ·Lower Total Cost of Ownership: Stable and durable design with low maintenance cost, reducing unplanned downtime and achieving fast return on investment
