Inclined Bowl Conveyor Solutions for Sticky and Delicate Products

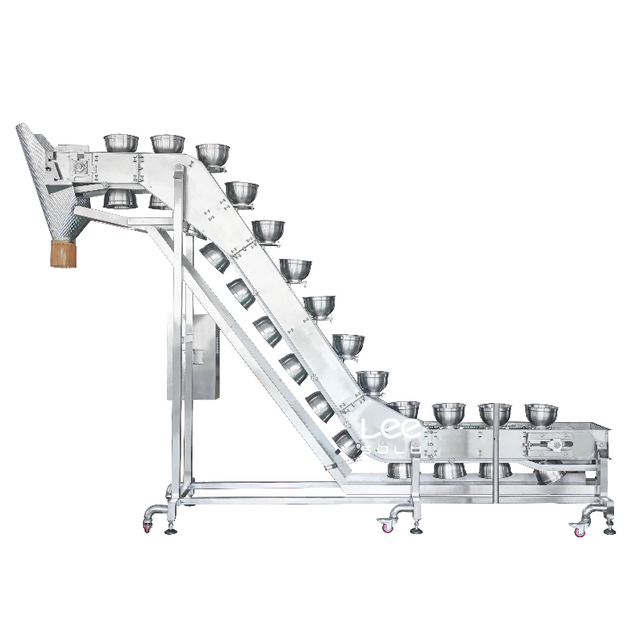

This bowl elevator gently lifts bulk, tacky, and fragile items with minimal residue. Non-stick, food-contact bowls and a controlled pickup-to-drop path improve release versus belts. The compact design integrates with multihead and linear weighers and downstream packaging.
Why Choose It for Sticky Products
Open-bowl geometry and low-friction surfaces reduce carryback and cleaning time. Low-drop transfers protect piece integrity (e.g., diced fruit, marinated meats). Guided bowls limit spillage on steep inclines for clean, accurate, and reliable operation. We engineer each unit for continuous feeding and consistent discharge.
Typical Applications
- Diced fruit in syrup, kimchi, pickled vegetables
- Cooked pasta, wet pet food, seafood
- Confectionery with syrups; viscous or agglomerating granulars
- Feeds precision weighers, then VFFS, pouch, tray, or cup lines
Key Advantages
- Tailored design: Configured to product size, stickiness, temperature, and throughput
- Construction: SUS304 or SUS316 frames with smooth welds and tool-less access
- Hygiene: IP65 protection and quick-release parts support efficient sanitation
- Controls: Interlocks, level sensors, and variable speed stabilize infeed
- Performance: Company data shows up to 30% capacity gains and 40% labor reduction on integrated lines; 99.5% pass rate reported
Technical Specifications
- Bowls and contact materials: PTFE-coated stainless or replaceable food-grade liners; optional textures for moisture control
- Bowl volumes: Typical 0.8 L, 1.4 L, 2.0 L; custom sizes available
- Throughput and speed: Up to 3–8 m³/h (product-dependent); VFD-regulated
- Geometry: Common incline 45°–75°; configurable infeed and discharge heights; adjustable bowl pitch
- Structure: Sealed bearings and IP65-rated housings; modular sections for transport and layout changes
- Drives and sensors: Geared motor with VFD; hopper level sensors; safety guards and E-stops
- Controls and connectivity: 7-inch multilingual HMI; PLC/fieldbus (Modbus/Profibus)
Options and Configurations
- Anti-stick and sanitation: Fluoropolymer coatings, quick-drain designs, removable bowls, washdown-ready wiring
- Feeding methods: Sized hoppers; vibratory feeders; agitation for cohesive products; level monitoring
- Layouts: Left/right discharge, fixed or swing chutes; compact arrangements to clear doors and pillars
- Compliance: Documentation packages to support FDA, HACCP, GMP audits and FAT needs
Integration Across the Line
Stable, metered flow improves weigher accuracy and clean discharge to VFFS, pouch, tray, or cup systems. The equipment interfaces with metal detectors, X-ray conveyors, cartoners, case packers, and palletizers for end-to-end automation.
Buying Guide
- Product: Confirm piece size, stickiness, temperature, oil/syrup content
- Throughput: Define capacity, pack weights, and machine speeds
- Space and hygiene: Measure heights and obstructions; note cleaning chemicals, water, and IP rating
- Compliance: Request food-contact certificates; plan FAT/SAT protocols
Bowl vs. Bucket vs. Belt
For sticky or delicate items, a bowl conveyor with non-stick liners releases product more cleanly than belts. Compared with bucket elevators, it offers simpler sanitation and easier visual inspection along steeper inclines.
Case Highlights
- Diced fruit in syrup: PTFE-lined 1.4 L bowls feeding a multihead weigher to VFFS increased net throughput by 28% and cut cleaning time by 35% (company data).
- Wet pet food: SUS316 build and IP65 washdown package supported daily sanitation and stable pack weights with fewer spills.
FAQ
Q: Which products benefit most from a bowl elevator?
A: Sticky, saucy, or fragile items that need gentle handling and clean release.
Q: How do you choose bowl volume?
A: We assess piece size, target throughput, pack weights, incline angle, and desired metering accuracy.
Q: What sanitation features are available?
A: PTFE or food-grade liners, removable bowls, quick-drain designs, and IP65 components for wet cleaning.
Contact the Inclined Bowl Conveyor Manufacturer Team
Ready to specify a system for sticky products? Contact our inclined bowl conveyor manufacturer team for a tailored proposal and reference projects.
