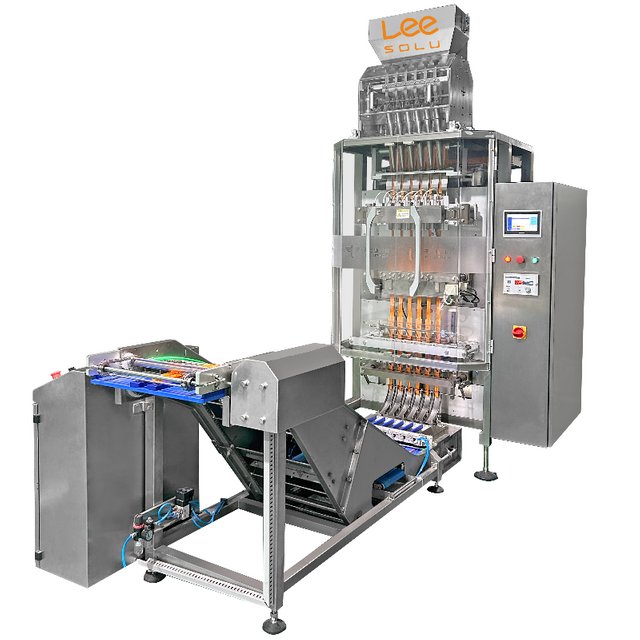

Multi-lane checkweighing systems for sachets, stick packs, and small pouches
These systems verify weight on each lane for small, fast-moving packs discharged from multi-outlet VFFS, stick-pack, and pouch equipment. By checking every piece per lane, they raise throughput, reduce manual sorting, and help maintain consistent quality across food and non-food items.
Benefits
- Throughput and quality: High-speed, lane-specific verification supports higher output with fewer manual checks. In integrated projects, customers have reported up to ~30–40% higher throughput, ~40% lower labor for checks, and pass rates up to 99.5% when paired with well-tuned filling and downstream inspection.
- Hygiene and compliance: Stainless steel builds (SUS304/SUS316) with IP65 protection enable washdown. Designs support HACCP, GMP, and FDA expectations with smooth surfaces, tool-free belt removal, and guarded access.
- Stability and ease of use: Rigid frames and filtering algorithms help maintain accuracy at speed. A multi-language HMI speeds setup, changeovers, and operator training. Robust components support uptime and lower total cost of ownership.
How it works
Each lane moves a single pack across its own weigh cell. Photoelectric triggers and filtering capture stable values at speed. Results are compared to target limits. A dedicated reject device per lane (air jet, pusher, or flap) removes off-spec packs without disturbing adjacent lanes. Lane-level statistics make it easier to tune upstream fillers and sealers.
Configurations and core specifications
- Lanes and speed: Configure 2–12 lanes to match multi-outlet packers. When synchronized with upstream equipment, arrays can process hundreds of packs per minute. Mechanical isolation and control logic prevent cross-lane interference.
- Weighing range and accuracy: Suitable for lightweight sachets through small pouches with gram-level resolution. Actual accuracy depends on pack weight, lane width, belt length, stability, and line speed. Filtering and algorithms help keep results consistent.
- Construction and protection: SUS304/SUS316 frames, food-grade belts, and IP65 enclosures support wet or dusty environments. Modular conveyors and guides fit specific pack dimensions. Compact footprints simplify retrofits.
- Reject and lane control: Choose air jets, pushers, or drop flaps based on fragility, size, and available space. Lane-level alarms, statistics, and batch reports enable proactive process control.
- Data and connectivity: Data capture and export support traceability, lane analytics, and upstream feedback to reduce giveaway and maintain targets.
- Integration options: Infeed alignment conveyors and lane guides; combined weight and contaminant inspection with a metal detector or X-ray; integration with box droppers, case packers, and palletizing robots.
Applications and use cases
- Sachets and stick packs: Seasonings, instant beverages, sugar sticks, nutraceutical powders, and micro-snacks from multi-tube stick packers or multi-outlet VFFS.
- Powders and micro-doses: Small-dose powders where stable handling and hygienic design are important.
- Snacks, pet treats, frozen, and seafood: Lightweight pillow bags and mini portions with per-lane verification to reduce giveaway.
- Non-food chemicals and detergents: Detergent sachets and agrochemical pouches in dusty or corrosive environments, supported by stainless construction and IP65 protection.
Installation, changeover, and service
Tool-free belt removal, adjustable guides, and recipe-driven settings shorten product changeovers. Open-frame layouts speed cleaning and maintenance.
From requirements through delivery and on-site commissioning, teams align the machine to your line. A global service network provides training, spare parts, and remote assistance.
Why work with us
- In-house R&D and manufacturing since 2002 focused on stability, accuracy, and long-term reliability.
- Proven integration of complete packaging lines, combining weighers, conveyors, inspection, and end-of-line robotics.
- Compliance-ready builds with stainless frames, IP65 designs, and upgradeable controls.
FAQs
How many lanes and what speed can I expect?
Typical configurations offer 2–12 lanes. When matched to upstream equipment, arrays can reach hundreds of packs per minute depending on pack size and spacing.
What accuracy is realistic for small sachets?
Gram-level resolution is common. Actual accuracy depends on pack weight, lane width, belt length, product stability, and line speed.
Which reject device should I choose?
Air jets suit light, fast packs. Pushers work for heavier or less fragile items. Drop flaps fit short footprints or enclosed chutes.
Contact Multi-lane Checkweigher Manufacturer
Share your product type, pack size/weight, lane count, target speed, reject preference, cleaning regime, and any compliance needs. We will propose a tailored configuration, layout, and integration plan from concept through FAT/SAT and commissioning.
For high-volume manufacturers running multi-lane packaging lines, struggling with weight inspection bottlenecks, excessive floor space from multiple single-lane units, inconsistent precision, and rising compliance risks? Our premium Multi-lane Checkweigher series solves these exact pain points, delivering industry-leading multi-channel weight verification tailored to your high-throughput production needs. Our Multi-lane Checkweigher features independent high-precision digital load cells per channel. Built with food-grade 304 stainless steel, and a crevice-free design, it meets strict sanitary standards for food, pharmaceutical, and cosmetic industries, enabling quick, hassle-free cleaning to reduce downtime. Unlike competing multi-lane systems, our checkweighers integrate intelligent anti-vibration algorithms and adaptive calibration, ensuring stable performance even in high-vibration production environments. This inline multi-lane weight inspection system delivers 100% real-time weight compliance, automatically rejecting underweight, overweight, or incomplete packs to prevent customer complaints, regulatory fines, and raw material waste. A single multi-lane unit replaces multiple single-lane checkweighers, cutting equipment, installation, labor, and maintenance costs while saving valuable floor space. With an intuitive touchscreen for simple operation, fast product changeovers, and minimal training.
