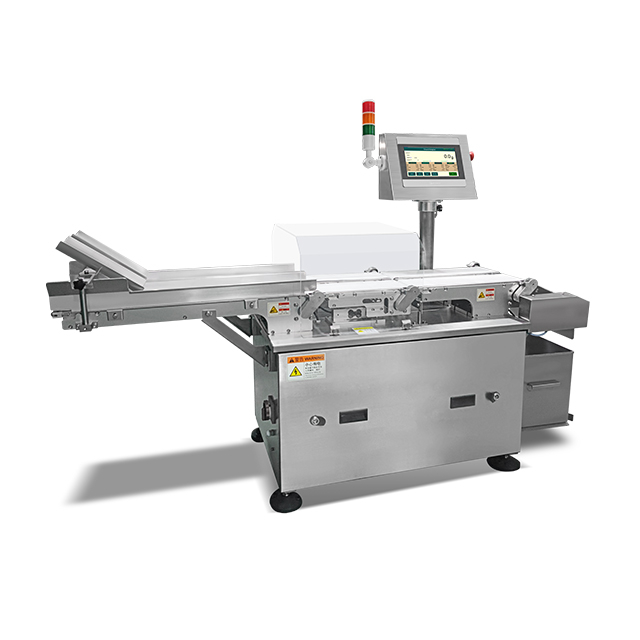

Dual-channel High-precision Check Weigher


High precision ±0.05g~±0.2g, minimum scale 0.01g, fast sampling and accurate detection;
Adjustable speed (20～60m/min), supporting dynamic/static operation modes;
Easy operation, intelligent interface, easy maintenance, exportable data and storable recipes;
Multi-industry adaptation, compatible with bag feeding machines, supporting multi-equipment linkage;
304 stainless steel body, suitable for detection of various small-sized items.

It is suitable for automatic weighing, underweight, missing parts and other detection of small packaging boxes, small bags and other extremely small items in electronics, pharmaceutical, food and other industries, and can be directly matched with double-station bag feeding machines.
Availability:
Inquire Add to Basket

  • Dual-channel High-precision Check Weigher

  • LEESOLU

Inline Checkweigher Automatic Checkweigher Inline Conveyor Checkweigher Dual-channel Check Weigher for Food Industry Dual-lane Checkweigher
Product Description
Product Specifications

Product Feature

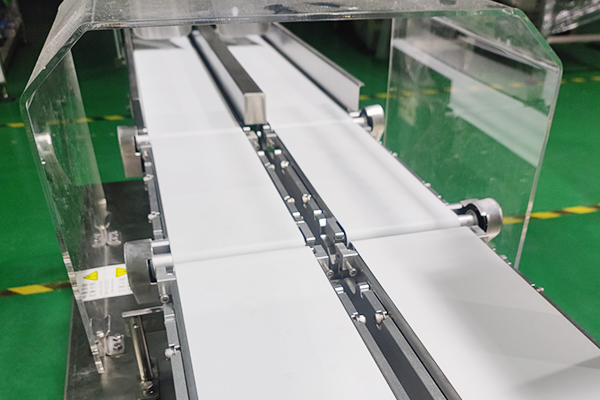

  • <h3><strong>High Precision · High Speed · Multi-mode</strong></h3>

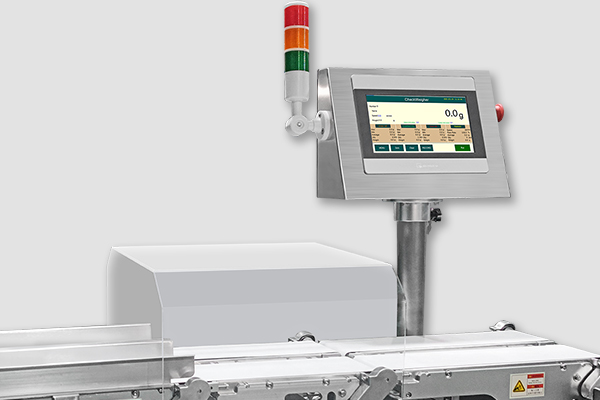

  • <h3><strong>Intelligent · Convenient · Traceable</strong></h3>

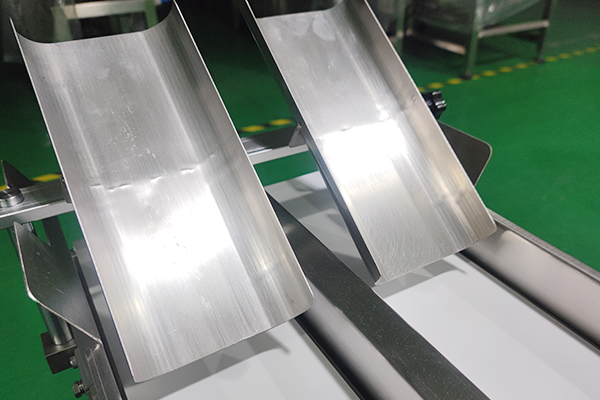

  • <h3><strong>Universal · Linkable · Customizable</strong></h3>
FAQs

  • What types of products can this equipment detect?

    加 Created with Sketch.
    形状 Created with Sketch.
    Suitable for small packaging boxes, small bags, extremely small items, etc., and can detect underweight, missing parts, missing accessories and other problems.

  • What is the weighing accuracy and speed of the equipment?

    加 Created with Sketch.
    形状 Created with Sketch.
    The single weighing range is ≤500g, the accuracy is ±0.05g~±0.2g, the conveying speed is 20～60m/min, and the maximum single-machine speed is 150pcs/min.

  • Is the operation difficult? Is maintenance convenient?

    加 Created with Sketch.
    形状 Created with Sketch.
    Easy to operate, adopting color human-machine interface with full intelligent design; the conveyor belt is easy to disassemble and assemble, convenient for cleaning and maintenance.

  • Can the equipment be linked with other equipment?

    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, it is equipped with RS-485 and network port dual communication ports as standard. It can be optionally equipped with external printers, inkjet printers, etc., and can be linked with front and rear packaging machines and feedback weighing results.

  • Can data be exported and traced?

    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, it has a built-in report statistics function, which can generate EXCEL format reports, and the external USB interface can export data in real time, facilitating production status control.
Certification
CE
ROHS
Key Selling Points
High-accuracy
Customized support
OEM，ODM
Weighting Range (in one time)
≤500g
Accuracy Range
±0.05g~±0.2g
Min. Scale Value
0.01g
Conveying Speed
20~60m/min
Max. Speed
150pcs/min
The Weighting Subject Refer Dimension
≤120mm(L)*100mm(W)
The Dimension of the Conveying Belt
324mm(L)*120mm(W)
Machine Refer Dimension
1721mm(L)*513mm(W)*1231mm(H)
Rejecting Method
Pusher (other option: air blow
rejecting stickturning plate
other special method)
Control System
High speed AD sampling controler
Preset Product Number
99pcs
Operating Direction
Facing to the machine
left-side in
right-side out
Air Compressor Requirement
0.6-1Mpa
Air Pressure Interface
Φ8mm
The Material of Machine Frame
304 stainless steel
Product Description
Product Specifications

Submit Your Requirements

Please submit your requirement form, and we will customize the most suitable solution according to your needs.
