Product Attributes
Attribute | Value |
Color | Silver gray |
Feature | Durable |
Material | Stainless Steel 304/316 |
Customized support | OEM，ODM |
After-sales Service Provided | Online support |
Parameter Adjustment | Auto learning/Manual setting |
Application

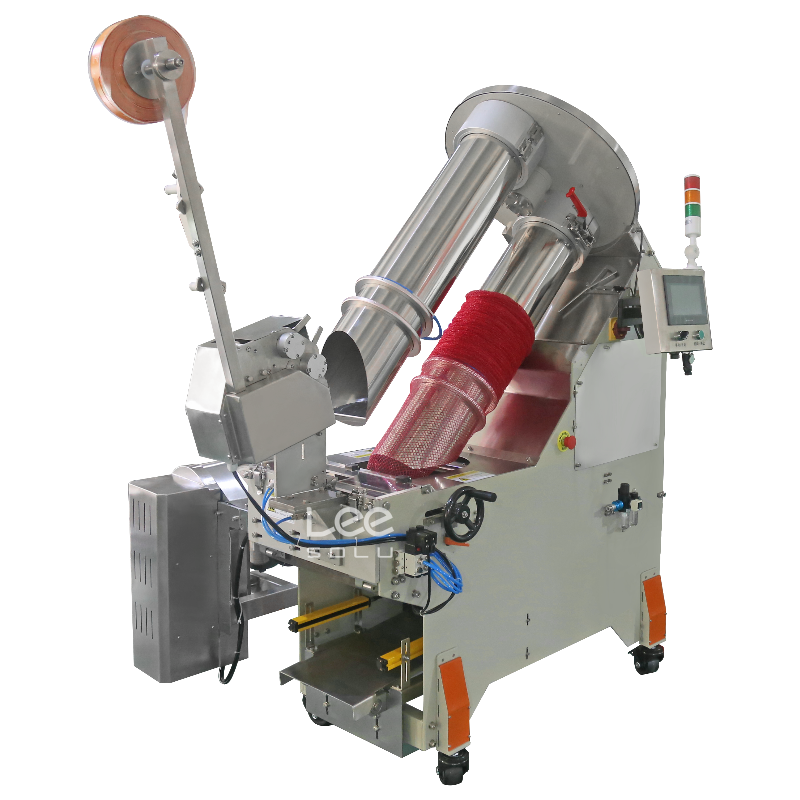

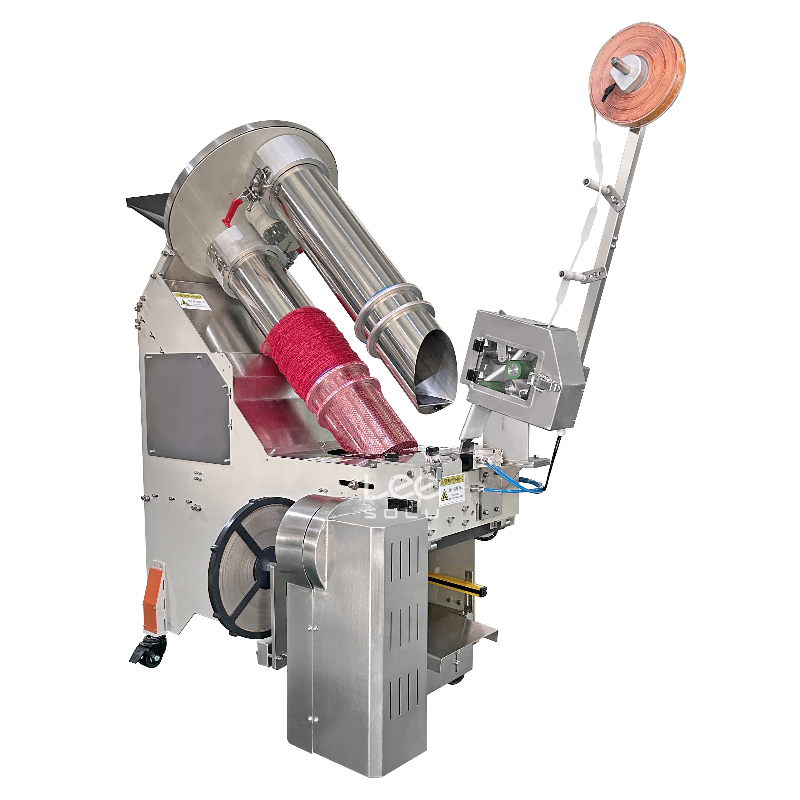

This automatic net bag packaging machine is engineered for packaging vegetables, fruits, snack foods, and hardware accessories that require no airtight sealing.
Applicable Products:
Vegetables: Potato, onion, carrot, garlic, ginger, sweet potato, Chinese chestnut, pumpkin, etc.
Fruits: Orange, red date, tomato, etc.
Snack Foods: Coin chocolate, jelly, etc.
Hardware Accessories: non-sealed hardware components.
Product Features
The machine adopts high-strength carbon steel plates and stainless steel materials, ensuring safety and hygiene while significantly enhancing the equipment’s corrosion resistance.

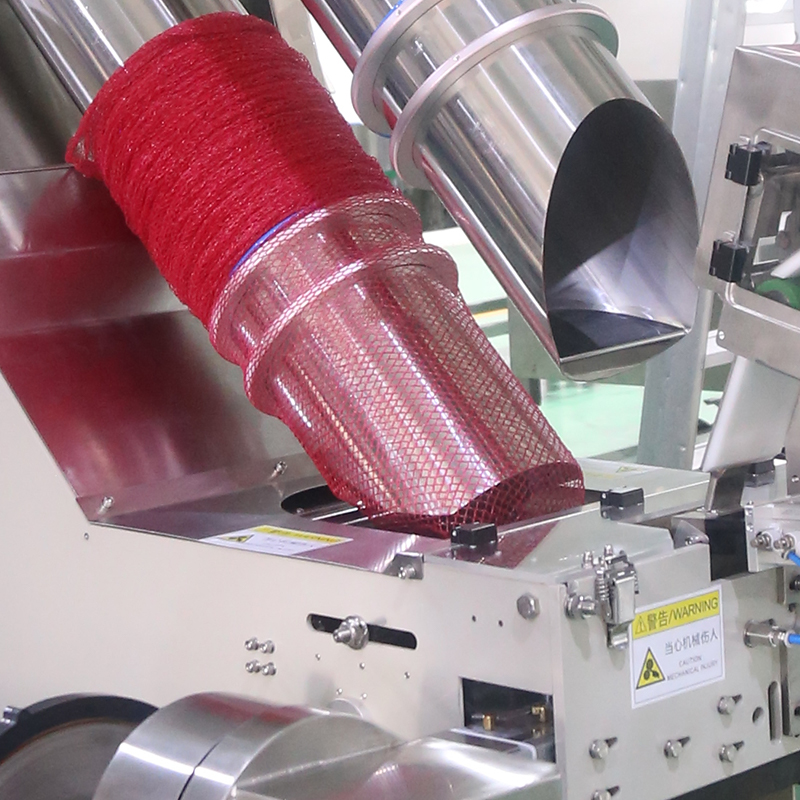

The dedicated tube enables automatic net bag replacement after use, streamlining the production process.
It is equipped with AirTAC pneumatic components that feature stable performance and a long service life, reducing maintenance frequency.
The combination of two positioning gears and proximity switches ensures precise positioning of the net-pushing mechanism, improving packaging accuracy.
Specifications
Model | LS-DCF-1/G-35 |
Packable item | Whatever is actually required |
Minimum packing weight | 0.5kg |
Maximum packing weight | 5kg |
Perimeter of net bag | 380/400mm |
Maximum length of the net bag installed on the tube | 200m |
Packaging speed | 25-40 BPM |
Weight | 450kg |
Machine dimension | 382.9kg |
Machine weight | 382.9kg |
Product Features
The machine adopts high-strength carbon steel plates and stainless steel materials, ensuring safety and hygiene while significantly enhancing the equipment’s corrosion resistance.
The dedicated tube enables automatic net bag replacement after use, streamlining the production process.
It is equipped with AirTAC pneumatic components featuring stable performance and a long service life, effectively reducing maintenance costs.
The combination of two positioning gears and proximity switches ensures precise positioning of the net-pushing mechanism, guaranteeing accurate packaging.
It adopts LS inverters, Schneider PLCs, and touch screen electrical control systems with reliable performance and easy operation, realizing intelligent and efficient control.
The packaged products maintain consistent standard sizes, meeting uniform packaging requirements for downstream storage and transportation.
Changing packing ties is convenient and efficient, minimizing downtime during production line switching.
The user interface is user-friendly, simple, and easy to operate, reducing the learning cost for operators.
Specifications
Model | LS-DCF-1/G-35 |
Minimum packing weight | 0.5kg |
Maximum packing weight | 5kg |
Perimeter of net bag | 380/400mm |
Maximum length of the net bag installed on the tube | 200m |
Packaging speed | 25-40 BPM |
Weight | 450kg |
Machine dimension | 1830mm*1128mm*1849mm |
Machine weight | 382.9kg |
Package weight | 450kg |
