TECHNICAL PARAMETERS
Model | LS-GX-100/200 |
Body Material | SUS304 |
Conveying Type | screw blade |
Power Supply | single/3 phase 220V/380V 50Hz/60Hz |
Power Consumption | 0.61kW/0.81kW/1.56kW/2.26kW/3.06kW/4.06kW |
Silo Volume | 100L/200L |
Conveying Speed | 2m³/h；3m³/h；5m³/h；7m³/h；8m³/h；12m³/h |
Conveying Angle | Standard: 45° or per requirement (from 30°~60°) |
Conveyor Pipe Diameter(mm) | Φ102, Φ114, Φ141, Φ159, Φ168, Φ219 |
Conveying Height (mm) |
Standard: 1850mm or per requirement (from 1000 to 5000mm) |
Machine Dimension(mm) | custom-made per requirement |

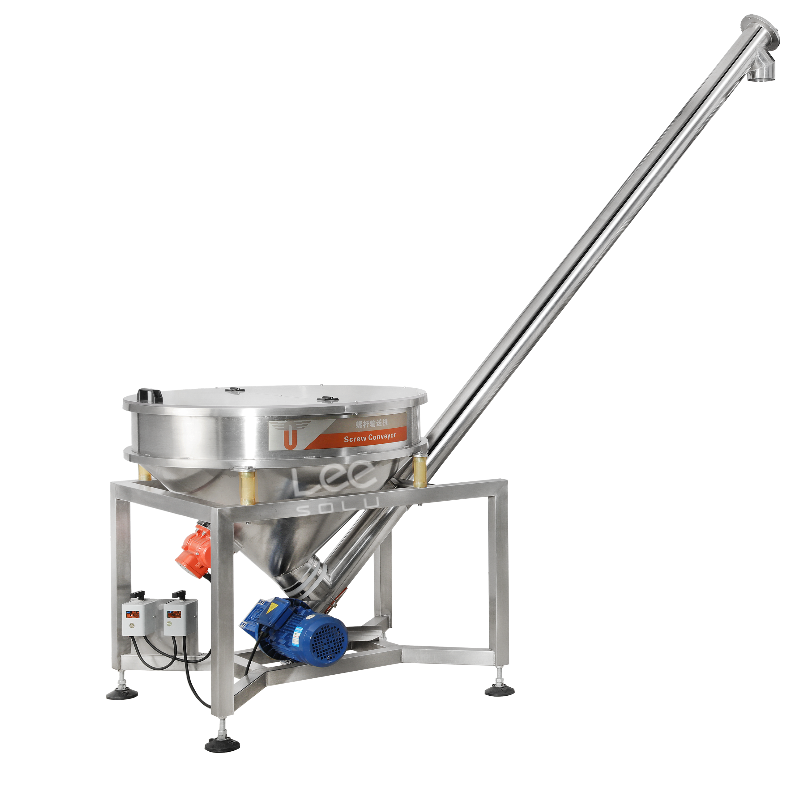

Our LS-GX series Screw Conveyor (also known as auger feeder) is a robust, food-grade inclined conveying system engineered for automatic feeding of powder and granular bulk materials. Constructed entirely from SUS304 stainless steel, this machine meets hygienic requirements for food, pharmaceutical, chemical and plastic industries, effectively avoiding material contamination and corrosion.
Powered by rotating screw blades, the conveyor continuously lifts materials from the bottom hopper to downstream equipment such as packing machines, mixing tanks and multihead weighers. It eliminates manual feeding labor, reduces material spillage and dust pollution, and achieves stable automated production.
Key Advantages
✅ Full SUS304 Hygienic ConstructionFood-contact parts are stainless steel, easy to clean and sanitize, suitable for strict hygiene scenarios.
✅ Flexible CustomizationConveying angle adjustable from 30° to 60°, standard 45°. Pipe diameter, conveying height and overall dimensions can be customized according to your production layout.
✅ Wide Capacity RangeOutput options from 2m³/h up to 12m³/h, matching different production speeds. Two hopper volume options: 100L / 200L.
✅ Dual Power OptionsSupport single-phase 220V or three-phase 380V power supply, 50Hz/60Hz available to fit global factories. Multiple motor power selections from 0.61kW to 4.06kW.
✅ Compact & Sealed StructureClosed tube design minimizes dust leakage. The hopper is equipped with vibration device to prevent powder bridging and blockage. Simple disassembly for routine maintenance.
✅ Stable & Low Noise OperationSmooth screw rotation, reliable performance, long service life and low maintenance cost.
Working Principle
Raw materials are loaded into the large feeding silo. With the vibration assistant at the hopper bottom, materials flow steadily into the screw tube. The rotating spiral blade pushes materials upward along the inclined pipe and discharges at the outlet to the next processing station.
Applications
Perfect for conveying powder and small granular materials: flour, milk powder, spice powder, cocoa powder, coffee powder, pharmaceutical powder, plastic pellets, chemical powder, grain and more. Widely paired with packaging lines, mixing systems and weighing equipment in food, medical, chemical and plastic industries.
