High-Speed Integrated Weighing and Packaging Machine Versatile, Fully Automated, 20-200 Packs/Minute Ultra-Fast Production
Full Auto & High Efficiency PLC & servo controlled all-in-one process. 20–200 packs/min speed, non-stop adjustment, 3x higher productivity. Precise & Flexible Metering ±0.3g high precision, 5–200g packaging range. Multi metering modes, 15-min fast material switching. Wide Application Supports solid, granular, powder, liquid and paste materials. Applicable for food, pharmacy, daily chemical and pet industries. Intelligent & Low Maintenance Smart touch screen, precise temperature control and fault self-diagnosis. 304 stainless steel modular design for easy cleaning. Stable & Reliable Accurate film tracking, stable operation and ≥98% bag qualification rate. 1-year warranty & lifelong technical support.

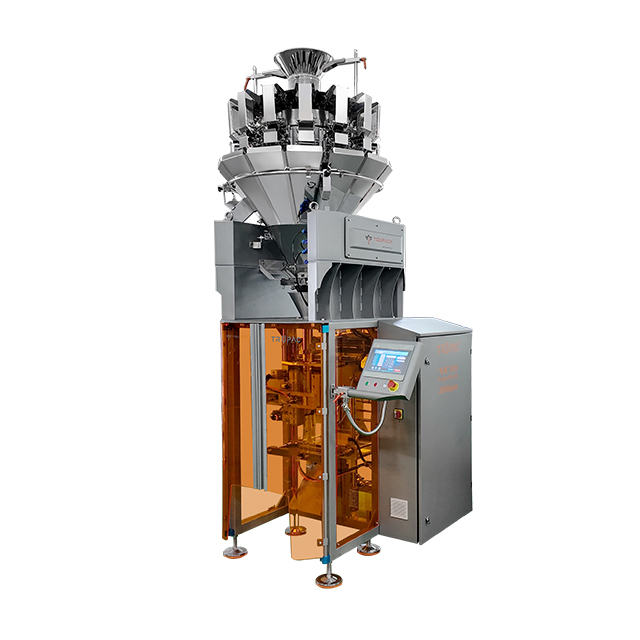

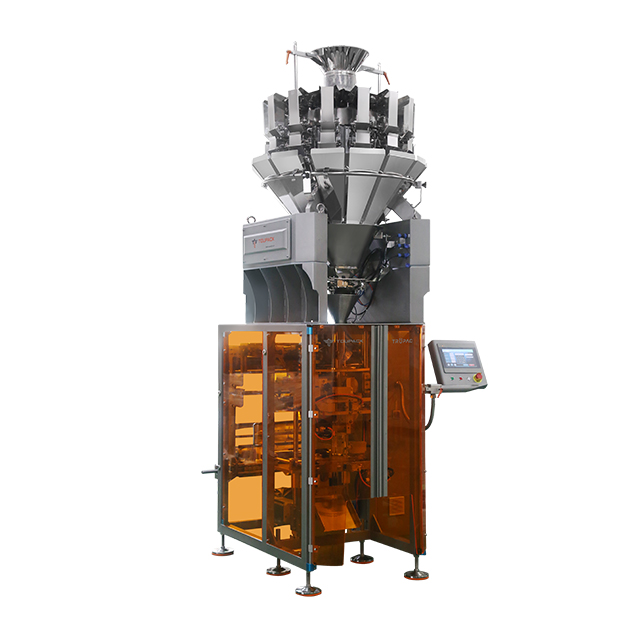

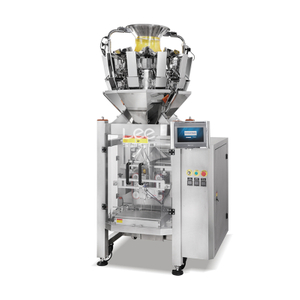

High-Speed Integrated Weighing and Packaging Machine
The high-speed integrated weighing and packaging machine is a fully automatic intelligent packaging solution designed for multi-form materials. This advanced packaging machine integrates the entire production process including bag making, metering, filling, sealing, printing and counting into one seamless system. Equipped with PLC programmable control system and servo drive technology, this integrated weighing and packaging machine achieves high-speed continuous production of 20-200 packs per minute with a metering accuracy of up to ±0.3g. It is widely applicable to the packaging needs of granules, powders, liquids, pastes and other materials in food, pharmaceutical, daily chemical, pet supplies and other industries.
Applicable Material Range
This packaging machine features a modular metering system design that allows quick switching between different metering devices to meet diverse packaging requirements:
·High-precision weighing: ±0.3g metering accuracy with 0.1g minimum scale, reducing material waste
·Wide range coverage of 5-200g: One packaging machine meets various packaging specifications from small to medium bags
·Quick material change design: Switching between different materials takes only 15 minutes, improving equipment utilization
3. Intelligent Control, Easy Operation and Maintenance

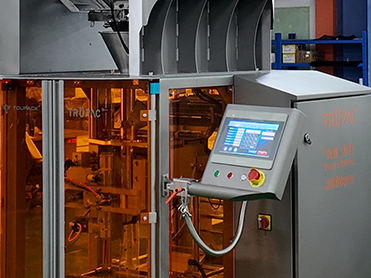

·10-inch color touch screen human-machine interface: Intuitive parameter setting, easy to learn and operate
·Intelligent temperature control system: Independent control of horizontal and vertical sealing temperatures with ±1℃ accuracy, compatible with various packaging film materials
·Fault self-diagnosis function: Automatically alarms and displays fault causes for quick troubleshooting
·Modular design: All components are easy to disassemble, clean and maintain, reducing maintenance costs
4. Stable and Reliable, Worry-Free Long-Term Operation
·Photoelectric tracking technology: Ensures accurate positioning of packaging patterns without cutting deviation
·Double-belt servo film pulling: More stable operation with uniform packaging film tension
·Bag forming qualification rate ≥98%: Reduces defective rate and improves production efficiency
·Comprehensive after-sales service: One-year whole machine warranty and lifetime technical support
·All-weather technical response: Professional engineer team ready to solve your problems at any time
Detailed Technical Parameters
Item
Parameter
Power Supply
AC380V/220V±10% 50HZ(60HZ)
Rated Power
6.5kw
Single Product Weighing Range
5~200g
Weighing Accuracy Range
±0.3g
Minimum Scale
0.1g
Packaging Film Width
160-420mm (Recommended maximum 420mm)
Bag Size
Length 100-300mm; Width 70-200mm (Recommended maximum 200mm)
Bag Forming Qualification Rate
≥98%
Compressed Air
≥6kg/cm², 80L/min
Packaging Film Materials
PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP + Composite CPP, etc.
Weighing and Packaging Speed
20~200 packs/min
Working Environment
Temperature: 0℃～40℃, Humidity: 30%～95%
Overall Dimensions
2030mm(L)×1130mm(W)×3160mm(H)
Machine Net Weight
850kg
Working Process
1.Film loading: The packaging film is installed on the unwinding frame and fed into the main machine through the guide roller system
2.Bag making: The former folds the packaging film into a cylindrical shape, and the longitudinal sealing device performs longitudinal sealing
3.Metering: The metering device accurately weighs the material according to the set weight
4.Filling: The material falls into the packaging bag through the hopper

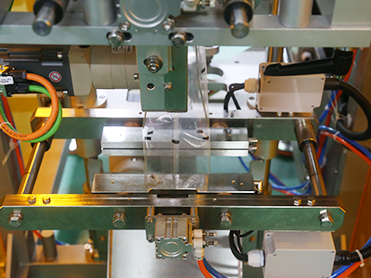

5.Horizontal sealing and cutting: The horizontal sealing device performs horizontal sealing and cutting to complete the production of a single packaging bag
6.Printing and counting: Simultaneously completes production date, batch number printing and finished product counting
7.Finished product output: The packaged products are output through the conveyor belt
Why Choose Our Integrated Weighing and Packaging Machines?
Free on-site installation, debugging and operation training
24-hour technical support hotline for quick response
Original factory parts supply to ensure long-term stable operation of the equipment
Customized solutions available according to customer requirements
