Key Specifications
Attribute | Value |
Warranty | 1 Year |
Application | Food industry bagger pillow bag, gusset bag |
Film Width | 120~720mm |
Function | Filling, sealing, bagger |
Type | Vertical Bagger |
Packing Speed | 10-60 bpm |
Power | 220V 50/60HZ; 380V 50/60HZ |
Material | Stainless steel film bagger |
Advanced Features
Imported PLC control system, featuring an integrated human-machine interface (HMI) via an intuitive visual touchscreen for simplified operation.
Servo-driven film feeding system, paired with a pneumatic horizontal sealing mechanism, to ensure precise positioning during packaging.
Automatic alarm and protection function: triggers timely alerts and protective actions to minimize operational downtime and losses.
The system covers the entire packaging workflow, including metering, material feeding, filling, bag forming, and date coding.
Compatible with multiple bag styles, e.g., pillow bags, gusseted bags, and hole-punched bags.
Delivers high operational reliability and supports intelligent operation throughout the production cycle.
Industrial Applications

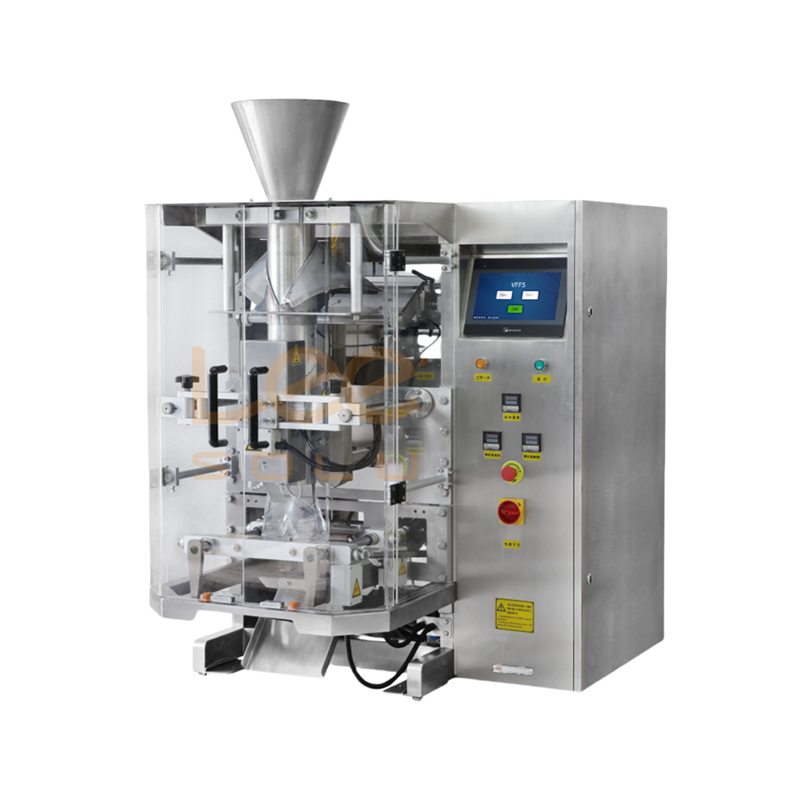

This vertical form-fill-seal (VFFS) packaging machine is engineered for precise metering and packaging of fluid, low-fluidity, and powdery materials, including:
Food & Beverage Powders: Milk powder, egg albumen powder, rice flour, coffee powder, solid beverage powders, and powdery condiments;
Non-Food Powders: Pharmaceuticals, animal feed powder, detergent powder, and agricultural pesticide powders.
Technical Specifications
Model | 520VFFS | 620VFFS | 720VFFS |
Packing Speed | 10-60BPM | 10-50BPM | 10-50BPM |
Bag Size | 50-350(L)*50-250(W)mm | 20-400(L)*50-250(W)mm | 20-450(L)*140-350(W)mm |
Film Width | 120-520mm | 620mm | 720mm |
Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
Power Supply | 220V 50HZ/60HZ, 3.4/4.2KW | 220V 50HZ/60HZ, 4.0KW | 220V 50HZ/60HZ, 4.5KW |
Machine Dimension | 1,560×1,160×1,530mm | 1,250×1,600×1,700mm | 1,360×1,630×1,900mm |
Machine Weight | 480KG | 800KG | 900KG |
