Advanced Packaging Solution
Triple servo control supports instant bag length setting and cutting, eliminating the need for idle-time adjustments. This delivers precise results while saving time and reducing film consumption.
High-sensitivity photoelectric color mark tracking, equipped with digital input functionality, ensures precise sealing positioning.
Integrated temperature control module features independent PID regulation (for each heating zone), enabling optimal performance when handling diverse packaging materials.
The user-friendly touchscreen interface allows for quick and intuitive parameter configuration.
Built-in self-diagnostic fault detection function provides clear fault alerts on the display, simplifying troubleshooting.
A position-stop mechanism prevents blade adhesion to the film, effectively minimizing film waste.
The simplified mechanical structure ensures stable operation and streamlined maintenance.

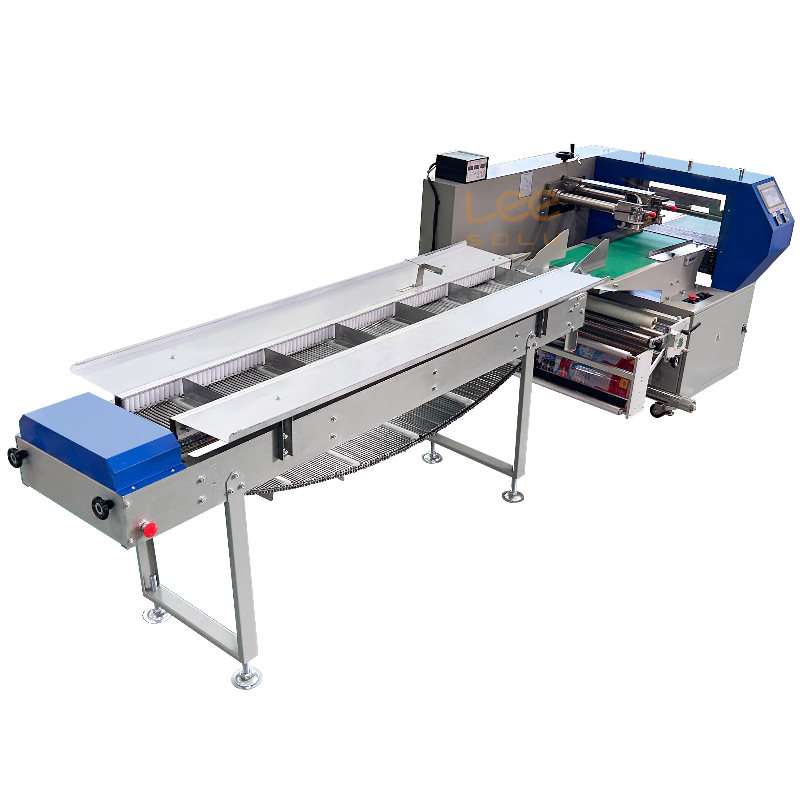

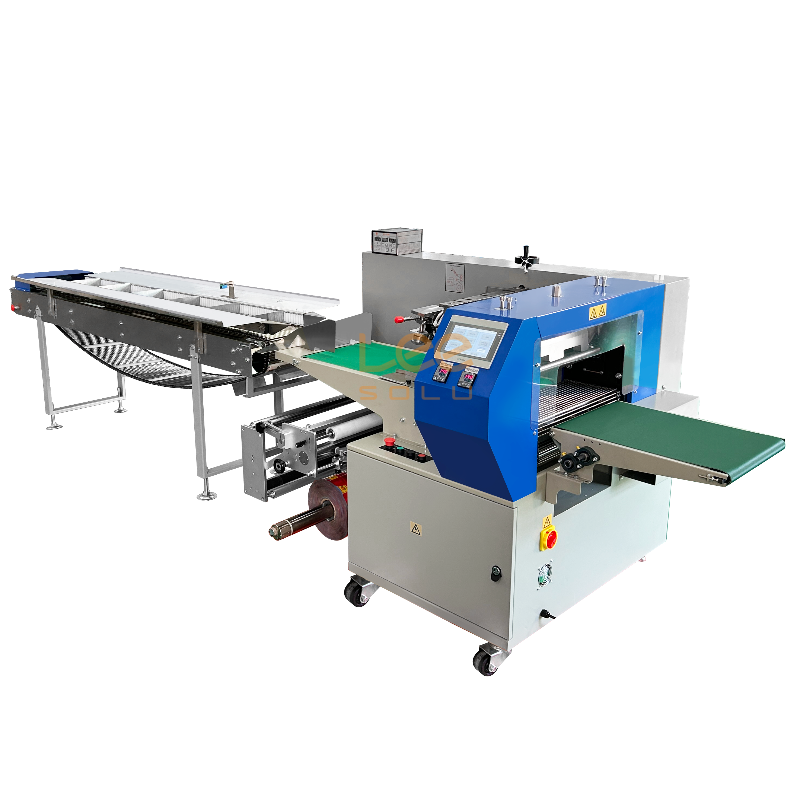

This high-performance packaging machine is ideal for packaging fresh fruits, vegetables, noodles, bread, and daily necessities. Boasting high operating speed, reliable sealing, and intuitive controls, it effectively preserves product freshness while drastically boosting production efficiency. As a versatile, cost-effective solution, it is well-suited for both food and non-food sectors.
Technical Specifications
Model | TY-600X | TY-800 |
Film width | Max 600mm | Max 800mm |
Bag length | 100-6000mm | 100-6000mm |
Bag width | 90-220mm | 120-300mm |
Product height | 10-120mm | 10-110mm |
Film roll diameter | Max 320mm | Max 320mm |
Packaging speed | 10-25 bag/min | 10-80 bag/min |
Power supply | 220V, 50/60HZ, 3.0KW | 220V, 50/60HZ, 4.1KW |
Size | 3948*1081*1463mm | 4412*1200*1153mm |
Weight | 650kg | 750kg |
Technical advantages
1、Highly automated exceptionally efficient
It can achieve full process automation from feeding,bag making, packaging to sealing and cutting,reducing manual intervention and greatly improving packaging speed making it suitable for large-scale mass production.
2、Wide range of applications
It can package products of various shapes, whether they are regular blocks (such as biscuits and soap bars), strips (such as ham sausages), or irregular items(such as toys and small hardware parts), and can adapt well to all of them.
3、Good packaging effect
The packaged product has a neat appearance and is tightly sealed, effectively protecting the product and reducing the impact of external environments (such as dust and moisture) on the product,while enhancing the product's aesthetics and quality.
4、Easy-to-use
Most devices are equipped with intuitive control systems (such as touch screens), with simple parameter settings.Operators can quickly learn to use them after minimal training, and maintenance is also relatively convenient.
5、Save packaging materials
It can reasonably control the amount of packaging film used according to product size, reducing material waste and lowering packaging costs.
Suitable for various film materials
