Product Specifications
Attribute | Value |

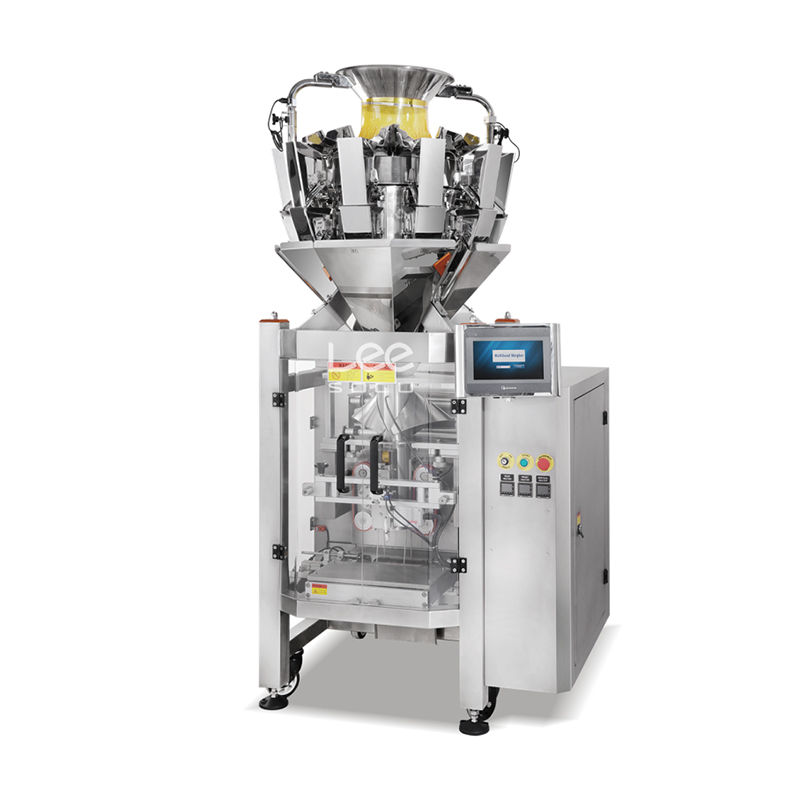

Product | All In One Packing Machine |
Body frame | SUS304 |
Max film width | 420mm |
Max speed | 100 bpm (empty bags) |
Application & Features
Features a compact, space-saving design, ideal for workshops with limited ceiling clearance (≤ 3,000mm).
Delivers a cost-efficient solution that reduces both initial investment and long-term operational costs.
Adopts a golden ratio structural design, significantly enhancing the machine’s overall stability and operational precision.
Integrates a weighing and packaging system in one unit, with centralized control via a single HMI to streamline operation.
Widely applicable to diverse product types, and offers tailored solutions to address specific customer requirements.
Main Configuration
Body Frame: Food-grade SUS304 stainless steel (corrosion-resistant, compliant with food safety standards for applicable scenarios).
Maximum Film Width: 420mm.
Maximum Speed: 100 bags per minute (bpm) for empty bag operation (clear indication of speed conditions to avoid ambiguity).
Packaging Material: Standard heat-sealable composite films (e.g., PET/PE, BOPP/PE; compatible with common industrial composite film types).
Main Electrical Configuration:
MITSUBISHI PLC (high stability for long-term continuous operation).
2 sets of Panasonic servo systems (precise motion control to ensure packaging accuracy).
AIRTAC pneumatic components (reliable performance, low failure rate for pneumatic-driven actions).
Banner photoelectric sensor (high-sensitivity detection for accurate color mark tracking).
Pneumatic hot stamping printer (brand: NANYUN; supports clear date/batch coding).
Complimentary Accessory: 1 set of bag former (film width: 420mm; structure: double-clip sealing) – provided free of charge as standard.
Human-Machine Interface (HMI): 10-inch high-definition (HD) touch screen (intuitive operation, clear parameter display).
Technical Specifications
Model | TY-1A-YZ-M1008-101
TY-1A-YZ-M1016-101 | TY-1A-YZ-M1408-101
TY-1A-YZ-M1416-101 |
Max. Weighing (one hopper) | 300g | 300g |
Weighing Accuracy | x (0.5) | x (0.5) |
Min. Scale Interval | 0.1g | 0.1g |
Hopper Q'ty | 10 | 14 |
Hopper Volume | 0.8L / 1.6L | 0.8L / 1.6L |
Max. Weighing Speed | 60 bpm | 80 bpm |
Max. Film Width | 420mm | 420mm |
Packaging Material | standard heat sealable composite film | standard heat sealable composite film |
Packing Speed | 80 bpm (empty bags) | 100 bpm (empty bags) |
Power Supply | AC220V ±10% 50HZ/60HZ, 2.5KW | AC220V ±10% 50HZ/60HZ, 3KW |
Machine Dimension | 1,457(L)*1,080(W)*2,313(H)mm (0.8L)
1,700(L)*1,211(W)*2,415(H)mm (1.6L) | 1,457(L)×1,080(W)×2,391(H)mm (0.8L)
1,700(L)*1,211(W)*2,515(H)mm (1.6L) |
Packing Dimension | 1,700(L)*1,335(W)*2,300(H)mm (0.8L)
1,750(L)*1,330(W)*2,440(H)mm (1.6L) | 1,700(L)*1,335(W)*2,400(H)mm(0.8L)
1,750(L)*1,330(W)*2,540(H)mm (1.6L) |
Machine Weight | 635kg (0.8L); 685kg (1.6L) | 655kg (0.8L); 735kg (1.6L) |
Packing Weight | 755kg (0.8L); 805kg (1.6L) | 805kg (0.8L); 855kg (1.6L) |
