Product Specifications
Attribute | Value |
Usage | Material Transmission |
Feature | Easy Cleanliness |
Application | Food |
Certification | CE |
After Warranty Service | Online support |
Online support | vertical bucket elevator |
Core Components | Motor, Bearing, vertical conveyor |
Structure | Chain Conveyor |
Product Description

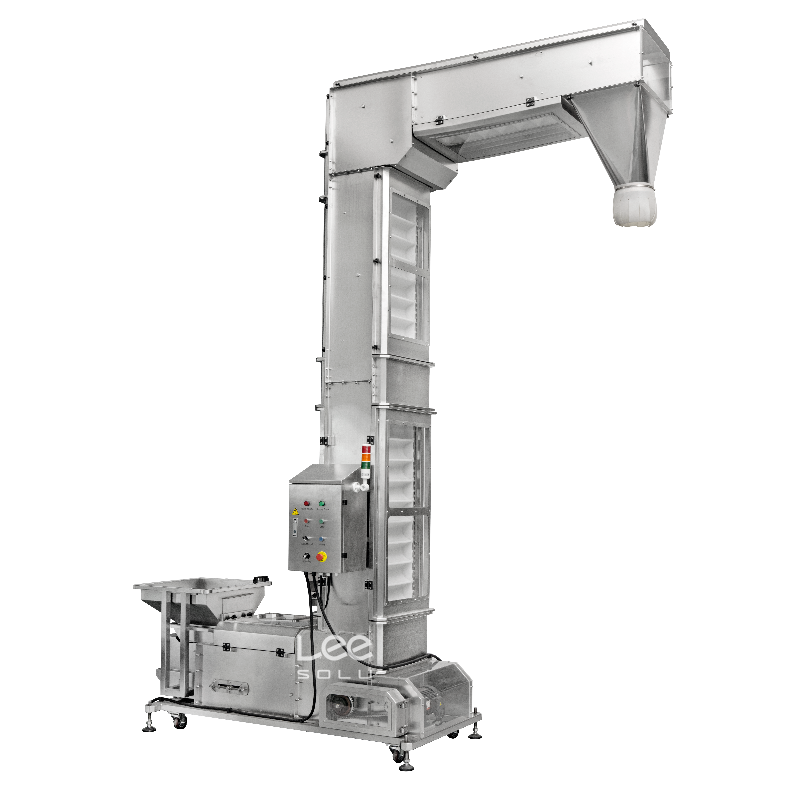

The Z-type bucket elevator is a versatile lifting and conveying equipment, primarily designed for vertical and horizontal lifting of bulk materials (e.g., grains, ores, powders). It is mainly composed of the following core components:
Moving Components: Buckets, paired with either a traction belt or chain (for material lifting and conveying);
Upper Section: Equipped with a drive drum (to provide power for the moving system);
Lower Section: Fitted with a tension drum (to maintain proper tension of the traction belt/chain);
Middle Casing: Encloses the internal components, preventing material spillage and ensuring safe operation;
Driving Unit: The power source of the elevator, ensuring stable and efficient operation.
Applications
This equipment is widely used in industrial scenarios requiring multi-point feeding and discharging. It integrates seamlessly with weighing & packaging machines and color sorters on fully automatic production lines, ensuring continuous and efficient material flow throughout the production process. Its primary applicable products are categorized as follows:
Food & Snack Products: Puffed food, candies, dried fruits, health foods, and grains (complying with food safety standards for direct contact with edible materials);
Feed & Agricultural Products: Fodder, grain seeds, and processed agricultural by-products;
Industrial Materials: Chemical powders/granules, small hardware parts, and non-toxic industrial bulk materials.
Technical Parameters
Contents | Specifications |
Body Material | carbon steel / SUS304 |
Hopper Volume | 1.0L / 1.8L / 3.6L |
Hopper Surface | dimple / plain |
Power Supply | single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW |
Conveying Capacity | 2.5m³/h / 4m³/h / 8m³/h |
Machine Dimension(mm) | per customer's requirement |
Vibrating Feeder | detached / independent vibrating feeder |
Feeder Volume | 70L / 100L / 150L / 200L |
Discharge Funnel | single / double / multiple |
Key Features
Integrated Automatic Feeding Control: The elevator integrates with electronic metering scales, using a PLC control circuit to monitor and regulate material levels. This enables automatic feeding and stopping functions, reducing manual intervention and ensuring consistent material supply for downstream processes.
Stainless Steel Construction: The elevator body is made of food-grade SUS304 stainless steel, featuring corrosion resistance and easy cleaning. It complies with food safety and pharmaceutical hygiene standards, suitable for both food and industrial applications.
Dual-Material Bucket Options: Buckets are available in two materials to meet diverse needs:
ABS Plastic: Lightweight, impact-resistant, and corrosion-proof, ideal for non-heavy, non-high-temperature materials (e.g., candies, dried fruits).
Stainless Steel: High-strength, high-temperature-resistant, and wear-resistant, suitable for heavy or high-temperature materials (e.g., ores, chemical granules).
Flexible Discharge & Feeding Compatibility: The elevator supports controlled discharge at one or multiple points, adapting to multi-station production needs. It also seamlessly interfaces with various feeding devices (e.g., vibrating feeders, screw feeders), ensuring smooth integration into existing production lines.
