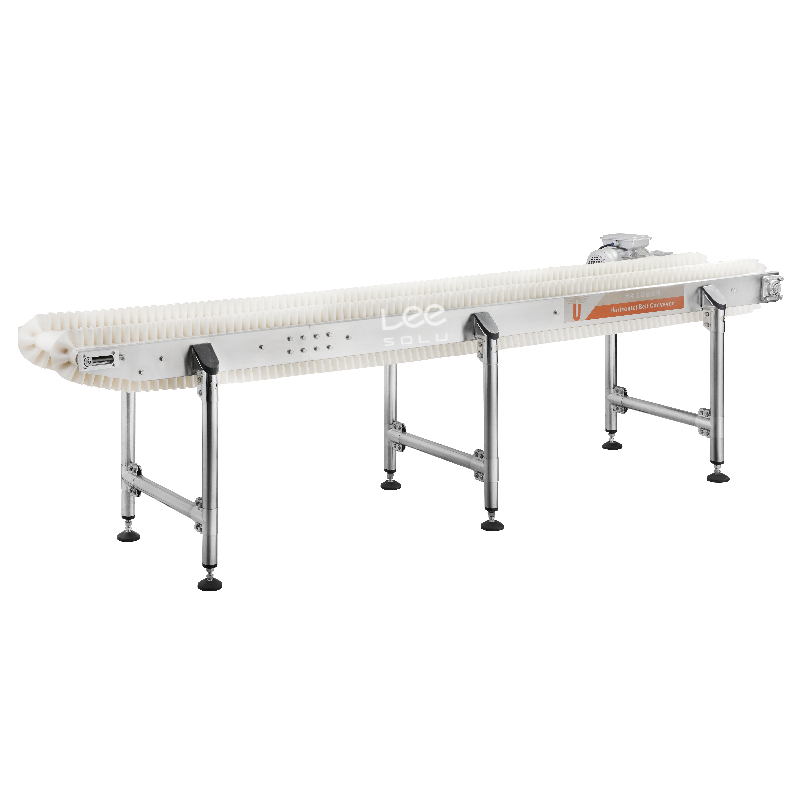

Horizontal Belt Conveyor

Product Specifications

• Body Material: SUS304

• Conveyor Type: plastic steel chain / plastic net chain / belt / roller

• Power Consumption: 0.4KW / 0.75KW / 1.1KW / 1.5KW / 2.2KW

• Conveyor Belt Material: POM / PP / PVC / PU

• Power Supply: single / 3 phase 220V/380V 50HZ/60HZ, 1.1KW

• Upright Guardrail: D12 steel rod / aluminum (optional)

Key Features & Benefits

• Food-Grade Conveyor Belt:

Adopts food-grade belt materials (compliant with FDA/EU food contact standards), compatible with weighing scales, packaging machines, and other equipment to form complete production lines. It supports both continuous and intermittent automatic weighing and packaging processes, meeting food industry hygiene requirements.

• Variable Frequency Drive (VFD):

Equipped with a high-precision VFD system, enabling stepless speed adjustment (0.5-3 m/s). This not only matches the rhythm of upstream/downstream equipment but also reduces energy consumption by 15%-25%, effectively lowering long-term operational costs.

• Stable & Low-Damage Operation:

Features a high-precision belt tensioning structure and shock-absorbing base, ensuring smooth product transportation. It minimizes collision or friction damage to materials—especially suitable for fragile or scratch-sensitive boxed/bagged items.

• Low-Noise Design:

Integrates noise-reducing components (e.g., silent bearings, shock-absorbing pads), keeping operating noise ≤ 65dB. It is ideal for quiet working environments such as food processing workshops, pharmaceutical clean rooms, or laboratory-style production areas.

• Easy Maintenance & Cleaning:

Modular belt and frame design allows disassembly and assembly without special tools. The smooth belt surface and detachable parts facilitate quick cleaning, reducing maintenance time by 30% and complying with strict hygiene standards for food/pharmaceutical sectors.

Technical Parameters
