Product Overview

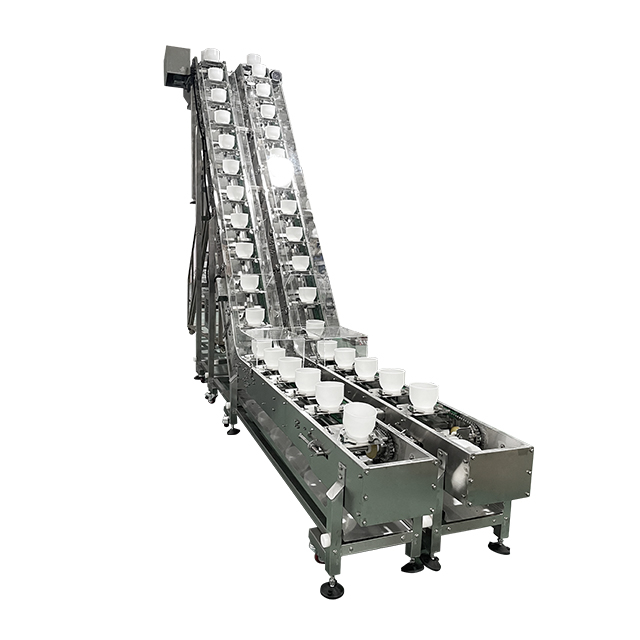

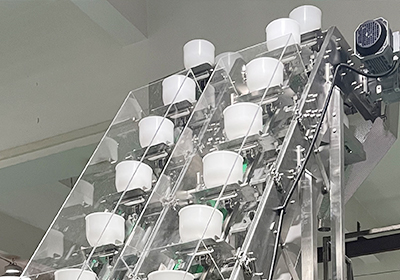

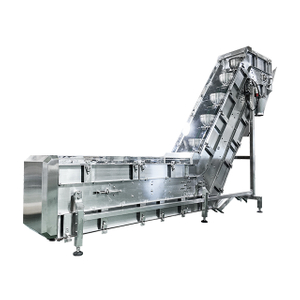

Leesolu's Double Column Bowl Elevator is a high-performance continuous vertical conveying equipment engineered for medium-to-small production volumes and multi-variety material handling. Featuring a dual-column independent synchronous operation structure, this advanced elevator efficiently automates the feeding of granular, blocky and irregularly shaped materials from low to high positions.
Widely deployed across food, pharmaceutical, chemical and hardware industries, our conveyor seamlessly integrates with downstream equipment including multihead combination weighers, vertical packaging machines and premade pouch packaging machines. This creates a fully automated "elevating - weighing - packaging" production line, drastically reducing labor costs while significantly boosting overall operational efficiency.
Core Advantages
Dual-Column Synchronous Design: Doubles Capacity Without Extra Footprint
·Driven by two independent chains operating in perfect synchronization, this bowl elevator delivers approximately twice the conveying capacity of single-column elevators
·Maintains a compact machine footprint, requiring no additional workshop space and perfectly adapting to existing production conveyor line layouts

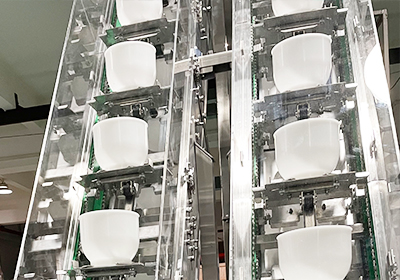

Food-Grade Fully Enclosed Structure for Hygienic Production
·Entire conveyor constructed from 304 stainless steel with smooth surfaces and no dead corners, facilitating easy cleaning and disinfection
·Fully enclosed housing prevents dust contamination and material spillage, ensuring compliance with strict food safety standards
Low-Damage Gentle Conveying Preserves Material Integrity

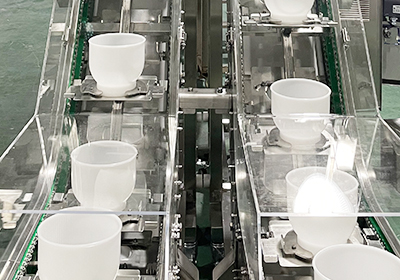

·Bowl-shaped hoppers available in PP/ABS/stainless steel with rounded edges, minimizing breakage of fragile and easily deformable materials
·Scientifically optimized hopper spacing eliminates material extrusion and jamming, guaranteeing complete material morphology throughout the conveying process
Movable and Flexible Configuration for Multi-Variety Production
·Equipped with universal casters and adjustable support feet, allowing one person to easily relocate the elevator and quickly switch between production lines
·Variable frequency drive system with adjustable conveying speeds from 0.1 to 0.5m/s, accommodating different materials and production capacity requirements
Stable, Durable and Easy to Maintain, Reducing Operating Costs
·Modular design with detachable and replaceable key components, simplifying routine maintenance and minimizing production downtime
·High-quality components ensure long-term reliable operation with minimal wear and tear
Detailed Technical Specifications
Item | Parameter Value | Remarks |
Total Length (Horizontal Projection) | 5057mm | Customizable lengths available |
Total Height (Floor to Highest Point) | 3763mm | Elevating height customizable |
Total Double-Column Width | 1194mm | Single unit width: 919mm |
Gap Between Two Columns | 168mm | Adjustable according to requirements |
Inlet Height Above Floor | 718mm | Customizable |
Outlet Height Above Floor | 2865mm | Customizable |
Effective Elevating Height | ≈2148mm | Supports 1~6m customization |
Chain Model | 10A Standard Roller Chain | Double-column independent drive |
Hopper Spacing | 317.5mm | Customizable |
Number of Hoppers Per Side | 37 | 74 total for double columns |
Total Chain Length Per Side | 11748mm | |
Matching Motor Power | 1.5kW | Higher power options available |
Conveying Speed | 0.1~0.5m/s | Variable frequency adjustable |
Conveying Capacity | 0.5~3m³/h | Or 50~500kg/h, adjusted by material density |
Material | 304 Stainless Steel | 316L stainless steel and carbon steel with plastic spraying available |
Mobility | Universal Casters + Adjustable Support Feet | Fixed installation option available |
Application Scope
Food Processing Industry
Our bowl elevators provide reliable and gentle conveying for:
· Snack foods: nuts, candies, potato chips, puffed foods, biscuits, roasted seeds and nuts, jelly
· Pet foods: wet soft dog food, cat food, cat litter, pet snacks, freeze-dried foods
· Fresh and cooked foods: chicken feet, duck necks, sausages, ham sausages, braised products, pre-made dishes
· Grain and oil: rice, wheat, corn, beans, coarse grains, seeds
Pharmaceutical and Health Products Industry
· Damage-free conveying of tablets, capsules, granules and pills
· Automatic feeding of health product raw materials, Chinese herbal pieces and Chinese medicine granules
· All conveying equipment meets GMP pharmaceutical production standards
Chemical and Rubber & Plastic Industry
·Conveying of plastic granules, color masterbatches, rubber additives and resin granules
·Handling of washing powder, detergent raw materials, fertilizer granules and feed additives
·Corrosion-resistant material options available for chemical applications
Hardware and Electronics Industry
·Automatic sorting and elevating of small hardware parts, screws, nuts, washers and springs
·Continuous conveying of electronic components, plastic accessories and rubber products
·Precision conveying ensures no damage to delicate electronic parts
Equipment Details

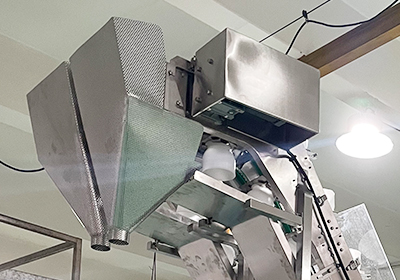

Drive System:
Adopts renowned brand reduction motors for stable operation, low noise and minimal failure rates; equipped with overload protection devices to safeguard the conveyor equipment.
Hopper Design:

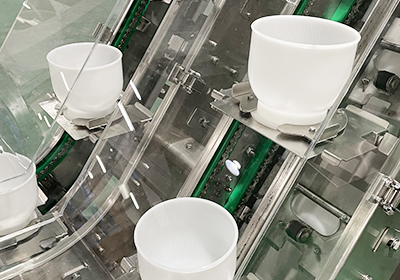

Food-grade material, integrally formed without splicing gaps for easy cleaning; deep bucket design maximizes material loading capacity and prevents spillage during elevating.
Tensioning Device:
Tail-mounted screw-type tensioning system allows quick adjustment of chain tightness, extending chain service life and ensuring consistent conveying performance.
Electrical Control:
Independent electrical control cabinet with intuitive operation; pre-reserved interfaces enable seamless linkage control with downstream packaging equipment and entire production conveyor lines.
Customization Services
We offer comprehensive personalized customization solutions tailored to your specific production requirements:
Custom elevating heights, conveying lengths and hopper volumes
Custom material options including 304/316L stainless steel and carbon steel with plastic spraying
Custom interface dimensions for perfect integration with your existing conveyors and production equipment
