Designed specifically for space-constrained scenarios, this bowl elevator delivers smooth, hygienic conveying of small block, granular, and solid-liquid mixed materials. Widely used in the food processing industry, it perfectly matches with pouch packaging machines to create efficient automated conveyor lines.
Product Overview

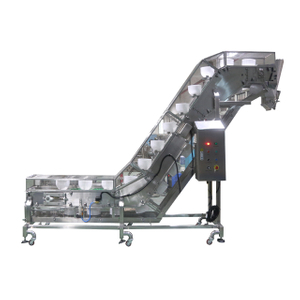

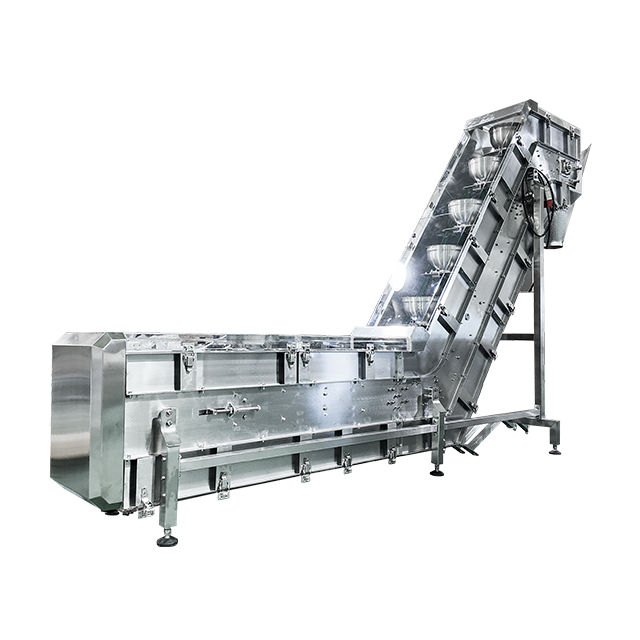

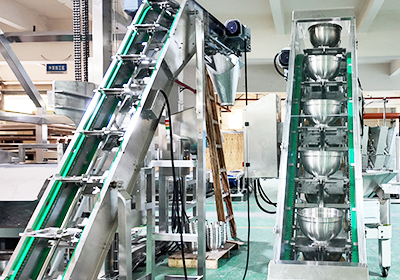

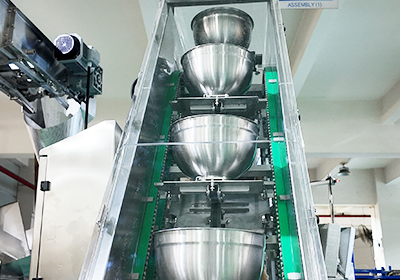

This fully enclosed bowl elevator is a dedicated conveying equipment developed to address the pain points of high hygiene requirements and limited on-site space in the food processing industry. Featuring a unique horizontal-holding bowl design combined with a fully enclosed acrylic transparent cover, it ensures stable material conveying without spillage while effectively isolating external pollution for dust-free conveying. The elevator operates stably, is easy to operate and clean, and can seamlessly connect with various weighing and packaging equipment, making it the ideal choice for the secondary elevation link in food production conveyor lines.
Six Core Advantages
Strong Compatibility for Complete Automated Production Lines

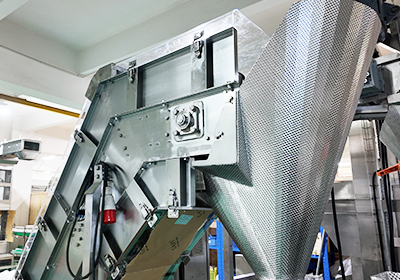

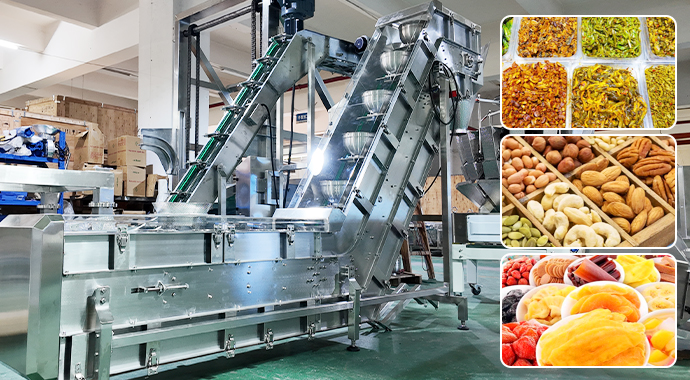

This bowl conveyor can be flexibly combined with pouch packaging machines, combination scales, filling machines and other equipment to build continuous or intermittent automated weighing and packaging conveyor lines, significantly improving production efficiency and reducing manual intervention.
Flexible Operation to Meet Diverse Production Needs
· Equipped with a switch to realize two-time feeding function (timing adjustment required)
· Conveying speed adopts frequency conversion adjustment, which can be freely set according to different material characteristics and production beats
· Height dimensions support non-standard customization to perfectly adapt to various on-site space layouts
Stable and Reliable, Eliminating Material Spillage and Waste

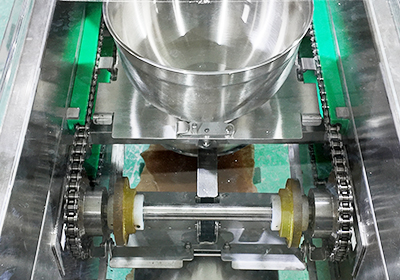

Adopting a patented horizontal holding mechanism, the bowls always remain horizontal even when tilted during lifting and flipping, ensuring no material spillage. This bowl elevator is especially suitable for conveying materials with soup such as pickled vegetables and cooked food.
Hygienic Design for Easy Cleaning and Maintenance

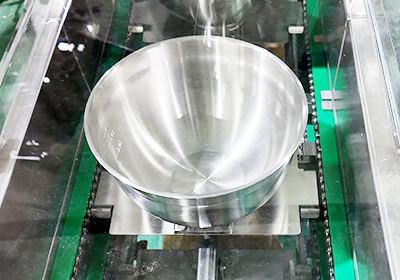

· Hoppers are made of food-grade PP material or 304 stainless steel casting, safe and non-toxic
· Hoppers can be quickly disassembled without tools for dead-end-free cleaning
· Fully enclosed structure design prevents dust and insects from entering, reducing the risk of material contamination
Versatile Conveying for Various Material Types
This material elevator is not only suitable for small block and granular solid materials, but also can convey solid-liquid mixed materials, meeting the feeding requirements of pickled vegetables, braised cooked food, snack food and other products.
Fully Enclosed Transparent Cover for Safety and Visibility
Standard equipped with a fully enclosed acrylic transparent cover, this conveyor not only ensures the hygiene standard of the production environment, but also allows clear observation of the internal operation of the equipment, facilitating timely detection and handling of problems, while effectively reducing equipment operating noise.
Technical Specifications
Parameter Item | Specification |
Power Supply | Single-phase 220V/Three-phase 220V/Three-phase 380V 50HZ/60HZ |
Rated Power | 0.75KW / 1.5KW |
Bowl Volume | 0.8L/14L/24L/30L/40L/60L |
Maximum Conveying Capacity | 1.5m³/h / 2.5m³/h / 4m³/h |
Overall Dimensions | 1450mm (standard) or customized according to customer requirements |
Main Body Material | Stainless Steel 304 |
Typical Application Scenarios
Pickled Vegetables
Conveying of materials with soup such as mustard tuber, dried radish, kimchi, and pickled cucumber
Cooked and Braised Food
Quantitative feeding of small cooked foods such as marinated eggs, dried tofu, chicken feet, and duck necks
Snack Food
Conveying of granular and small block materials such as nuts, candies, potato chips, and biscuits
Other Industries
Elevation of solid materials with high hygiene requirements in chemical, pharmaceutical and other industries
Customization Services
We provide comprehensive non-standard customization services for your conveyor systems, which can be tailored according to your actual needs:
Equipment lifting height customization
Bowl volume and material selection
Anti-sticking treatment for special materials
Docking design with existing production conveyor lines
Control system function expansion
Why Choose Us
Professional R&D Team:
Over 10 years of experience in R&D of food packaging and conveying equipment, with in-depth understanding of industry pain points
Strict Quality Control:
All products have passed ISO9001 quality system certification, and core components adopt internationally renowned brands
Perfect After-sales Service:
Provide free installation guidance, technical training and one-year warranty service, lifetime maintenance
Fast Response Mechanism:
24-hour technical support to solve your production problems in a timely manner
