Designed exclusively for small block, granular, pickled vegetable and cooked food materials, this high-performance bowl elevator perfectly solves secondary lifting challenges in space-constrained production environments. Seamlessly integrates with premade pouch packaging machines to deliver automated continuous feeding, making it an essential component of modern conveyor lines in food processing, condiment, pharmaceutical and other industries.
Product Overview

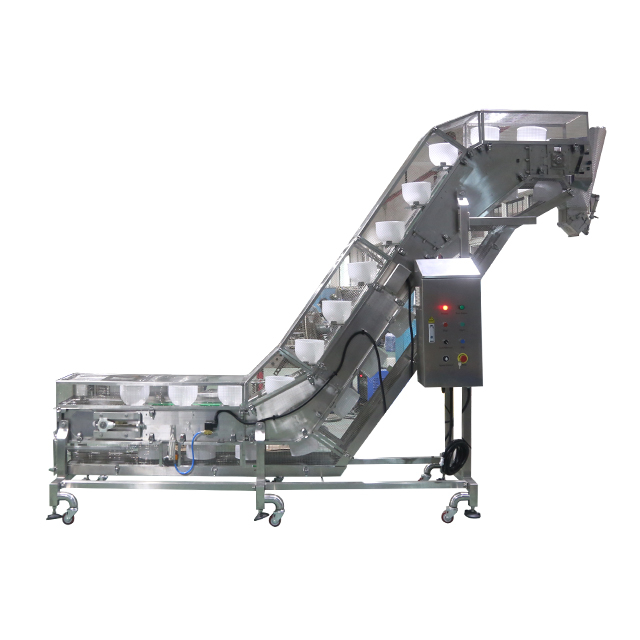

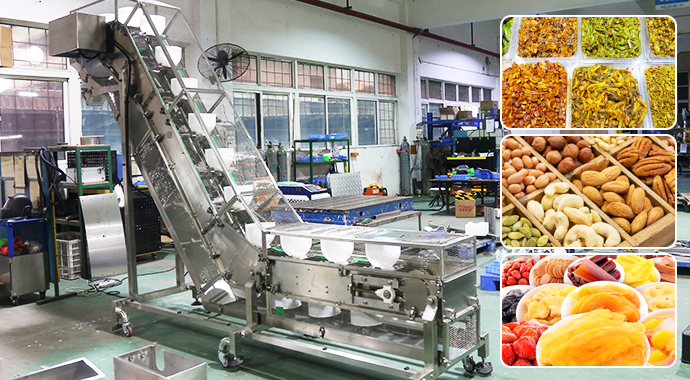

This bowl type elevator is a specialized vertical conveying equipment engineered for limited-space working conditions. Featuring an innovative horizontal-holding bowl mechanism, it maintains perfect bowl alignment even during inclined transport, eliminating material spillage entirely. Constructed with premium 304 stainless steel and equipped with a fully enclosed stainless steel safety guard, this material elevator meets stringent food hygiene standards while ensuring maximum operator safety. With stable operation, low noise and easy cleaning maintenance, it can be integrated with various weighing and packaging equipment to form complete automated conveyor systems.
Application Range
Compatible Materials
Small block, granular and solid materials, especially ideal for pickled vegetables, cooked meat products, snacks, nuts, candies and Chinese herbal medicines
Typical Applications
Secondary lifting processes in space-limited facilities, feeding materials to downstream premade pouch packaging machines, filling machines, weighing machines and other processing equipment
Unique Advantage
Supports conveying and packaging of solid-liquid mixed materials, meeting diverse production requirements for modern conveyor lines
Six Core Advantages of Our Bowl Elevator
Stable Operation & Zero Material Spillage

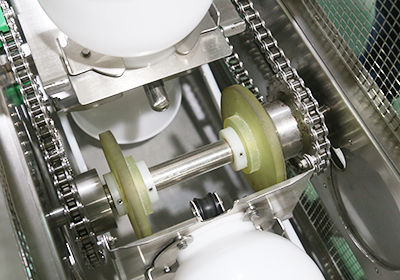

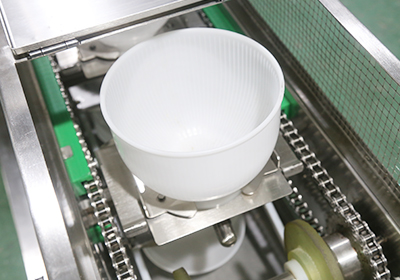

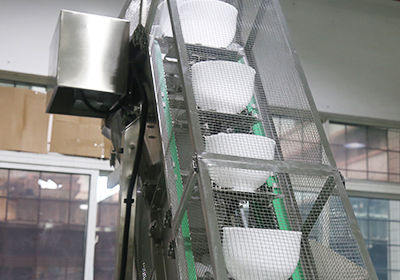

Our bowl conveyor features a patented horizontal-holding mechanism that keeps bowls perfectly level throughout the entire conveying cycle. Even at maximum incline angles, no material spills occur, significantly reducing production waste and maintaining a clean workshop environment.
Flexible Control for All Production Rhythms
· Equipped with variable frequency drive (VFD) speed control, allowing stepless adjustment of conveying speed to match your conveyor line requirements
· Supports dual-discharge function (timing adjustment required) to accommodate different packaging processes
· Capable of continuous or intermittent operation, perfectly synchronizing with upstream and downstream equipment
Food-Grade Hygiene & Easy Maintenance
· Bowls are molded from food-grade PP material or 304 stainless steel, non-toxic, odorless and corrosion-resistant
· Tool-free quick-disassembly design enables thorough cleaning with no hidden sanitary dead corners
· Entire elevator body constructed from 304 stainless steel with smooth surfaces, complying with GMP and international food production standards
Enhanced Safety with Stainless Steel Guard

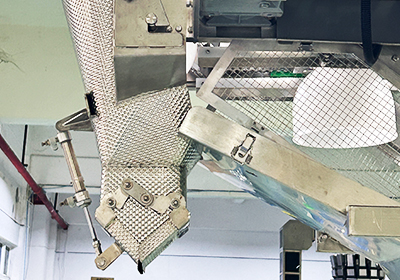

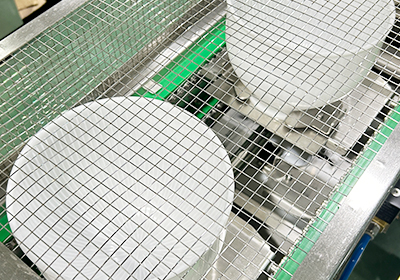

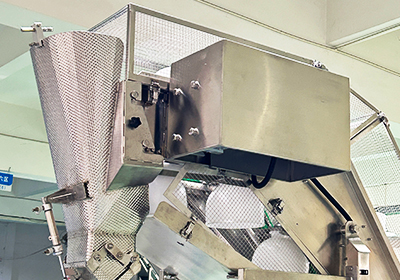

Standard fully enclosed stainless steel safety guard prevents accidental contact with moving parts and blocks foreign objects from entering the conveyor system. The transparent guard design allows clear visibility of equipment operation without compromising daily operation and maintenance.
Seamless Integration for Automated Production Lines

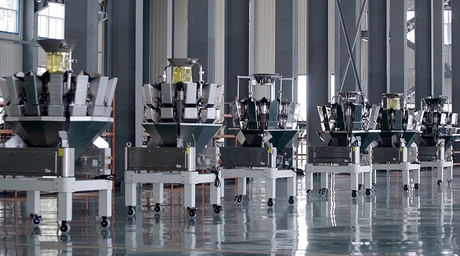

This vertical elevator can be paired with premade pouch packaging machines, multihead weighers, filling machines, sorting machines and various other equipment to form complete automated weighing and packaging conveyor lines. No complex modifications required – plug-and-play installation dramatically improves production efficiency.
Customized Solutions for Unique Requirements
· Lifting height fully customizable to your specific site space constraints
· Multiple bowl volume options available to match different conveying capacity needs
· Supports single-phase/three-phase power customization for global electrical standards
· Optional add-ons include material level detection, automatic alarm systems and other specialized features
Technical Specifications
Parameter | Specification Range |
Power Supply | Single-phase 220V / Three-phase 220V / Three-phase 380V 50HZ/60HZ |
Rated Power | 0.75KW / 1.5KW |
Bowl Volume | 0.8L / 14L / 24L / 30L / 40L / 60L |
Maximum Conveying Capacity | 1.5m³/h / 2.5m³/h / 4m³/h |
Overall Dimensions | 1450mm (standard) or customized to customer requirements |
Main Body Material | 304 Stainless Steel |
Safety Protection | Standard stainless steel guard |
Typical Application Scenarios

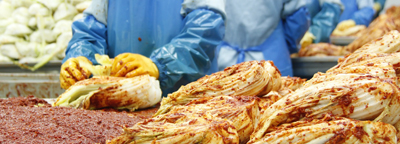

Pickle Factories
Lifting pickled radish, mustard, kimchi and other preserved vegetables to premade pouch packaging machines via bowl elevators
Pickled vegetables
pickled radish, pickled cucumber, shredded mustard tuber, knotweed seaweed, etc.

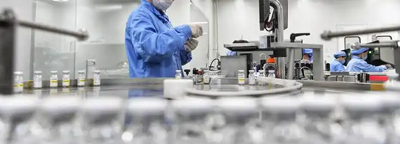

Pharmaceutical Factories
Vertical conveying of Chinese herbal pieces, capsules, tablets and other pharmaceutical products using food-grade bowl conveyors
Cooked Food Processing Plants
Secondary lifting of braised meats, dried tofu, meat products and other small food items using vertical conveyors
Condiment Factories
Lifting chicken essence, monosodium glutamate, seasonings and other powder-granule mixtures with material elevators
Snack Food Factories
Conveying nuts, candies, potato chips, biscuits and other granular materials through automated conveyor lines
Cooked & braised foods
marinated tofu, braised eggs, leisure meat snacks

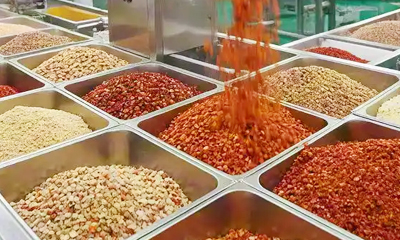

Small solid particles & granules
nuts, candies, frozen fruit/vegetable dices, pet food
Why Choose This Bowl Elevator for Your Conveying System?
Purpose-built for secondary lifting in tight production floors—no need for major facility modifications
Handles the tough stuff: pickles, cooked sticky foods, and solid-liquid mixtures without clogging or spilling
Full stainless steel 304 construction plus a stainless mesh guard—durable, corrosion-resistant, and audit-ready for food safety
VFD speed control & quick-detach hoppers make product changeover and sanitation exceptionally simple on this conveyor
Deeply matched with pre-made pouch packaging machines and other equipment, allowing us to deliver a turnkey automatic conveying line
Customization Services for Your Conveying Line
We know every production line is unique. Beyond height and dimensional customization, we adapt this bowl elevator to your material properties, packaging speed, and installation environment:
Hopper volume and material selection (PP or stainless steel)
Power supply and motor power adjustments
Timing and motion sequence tuning
Fully integrated conveying line solutions with upstream and downstream equipment
Request Your Tailored Bowl Elevator Quote Today
Tell us your material, lifting height, and target feeding speed.
We'll recommend the optimal bowl-type elevator and complete conveying system configuration for your production line.
