Streamline Your Production Flow with Intelligent Cornering
Space is the most valuable asset in modern manufacturing. Traditional straight conveyors force you to build around your facility's footprint. Our 90 Degree Turn Belt Conveyor solves that constraint elegantly. Using a precision-engineered conical drum drive system, this curved belt conveyor ensures your product transitions smoothly around tight corners without twisting, jamming, or sliding. It's the foundational link for creating compact, L-shaped, U-shaped, or closed-loop assembly lines without sacrificing throughput.
The Engineering Behind the Curve: How We Master the 90° Turn
Not all curve conveyors are created equal. The physics of a 90-degree turn often causes product drift and belt wear. Our system relies on a sophisticated geometric solution:

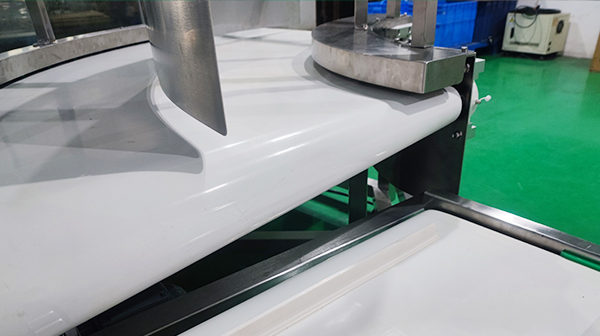

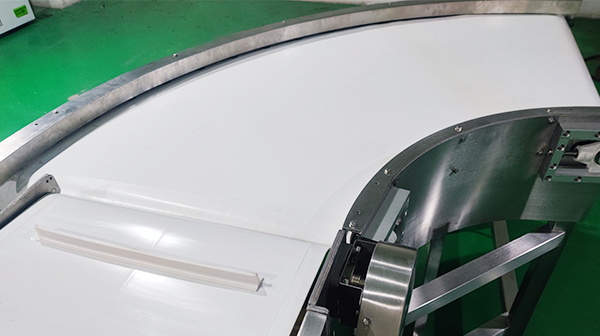

Conical Drive Drum & Fan-Shaped Belt
The belt itself is engineered with a tapered construction (narrower inner radius, wider outer radius). This matches perfectly with our precision-machined conical pulleys.
Synchronized Linear Velocity
hrough precise calculation of the cone angle, the linear speed remains identical across the entire width of the belt. Whether your product hugs the inside lane or rides the outer edge, it moves at the same rate. The result? Zero relative sliding, zero torque pull, and zero product rotation. It's a smooth, quiet, and controlled 90° transition.
4 Critical Factory Challenges Solved by the 90° Curve Conveyor
Our system isn't just about changing direction; it's about eliminating operational bottlenecks.
The Challenge | The 90° Curve Solution |
1. Wasted Real Estate & Rigid Layouts | Maximize Floor Plan Utilization. Run production lines along walls and into corners. Convert unusable "dead zones" into active transport corridors. Design compact L-shaped and U-shaped lines that increase worker density and operational efficiency. |
2. Labor-Intensive Transfer Points | Eliminate Manual Handling. Do not rely on operators to push, rotate, or lift items around a corner. This conveyor automates the directional change seamlessly, reducing labor costs and the risk of repetitive strain injuries. It's a critical component for Lights-Out Manufacturing. |
3. Product Damage & Instability | Zero-Damage Product Preservation. Unlike ball transfer tables or pop-up transfers that cause friction and collisions, our gentle curve maintains constant belt contact. Products ride the corner as smoothly as a high-speed train on a banked curve. Ideal for fragile packaging, electronics, or pharmaceutical vials where surface scratches are unacceptable. |
4. Complex, High-Maintenance Transfer Systems | Reduce System Complexity & TCO. Replace multiple straight conveyors and powered turntables with one compact, unified module. This reduces the number of motors, PLC points, and maintenance requirements, significantly lowering both your initial capital investment (CAPEX) and long-term operating costs (OPEX) . |
Key Advantages & Technical Specifications
Ultra-Stable Operation
Low noise and minimal vibration ensure consistent product orientation and a better working environment.
Fully Customizable Design
Choose from a range of custom curve radii , belt widths, and materials to match your specific load profile.
Heavy-Duty & Hygienic Construction
Built with high-strength stainless steel frames and premium conveyor belting for longevity in demanding industrial environments.
Seamless Smart Integration
Designed for Industry 4.0 compatibility. Easily connects to upstream/downstream straight conveyors, robotic workstations, and sorting systems. Supports mounting of sensors, side guides, stoppers, and barcode scanners.
Easy Maintenance
Modular design allows for tool-less removal of side guides and quick belt tensioning. Minimize downtime during routine cleaning or belt changeouts.
Versatile Applications:
From Light Duty Packaging to Precision Electronics
This 90° curved belt conveyor is the workhorse of diverse industries requiring reliable horizontal redirection.
Common Materials Handled:
·Packaging & Logistics: Corrugated Boxes, Totes, Polybags, Shrink-Wrapped Trays, Mailers.
·Food & Beverage: Cartons, Bottles (PET/Glass), Cans, Baked Goods, Frozen Food Pouches.
·Consumer Electronics: PCB Boards, Smartphone Housings, Laptop Casings, Display Panels, Small Appliance Assembly.
·Pharmaceutical & Cosmetic: Medicine Boxes, Vials, Plastic Jars, Lipstick Tubes, Blister Packs.
·E-commerce Fulfillment: Books, Poly Mailers, Small Parcels.
Ready to Optimize Your Line Layout?
Stop forcing your process to fit a straight line. Embrace the curve and reclaim your floor space.
Contact our engineering team today for:
· Free Layout Drawing showing how a 90° curve fits into your current floorplan.
· Customized Quote based on your required belt width and radius.
· Sample Testing with your actual product to guarantee perfect handling.
