Small Particle & Small Dose Weighing Expert
5-200g High-Speed High-Precision Combination Weighing Solution
Accurate to 0.1g with speeds up to 70 bags per minute, this multihead weigher injects intelligent weighing power into the food, pharmaceutical, hardware, and chemical industries.

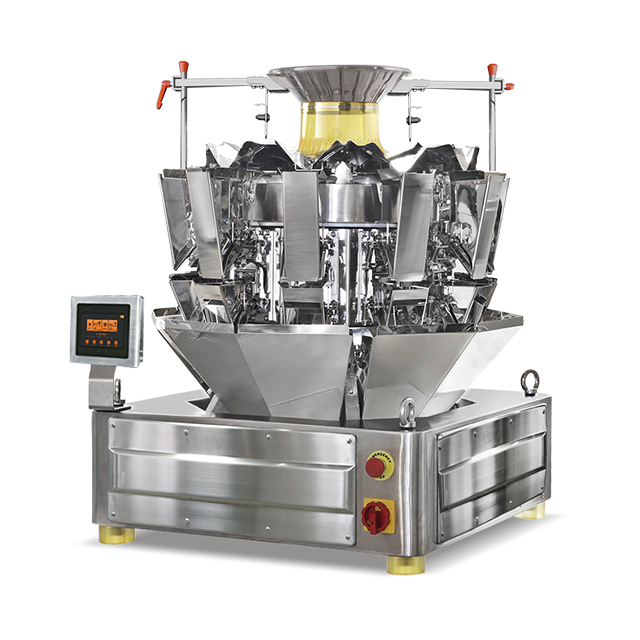

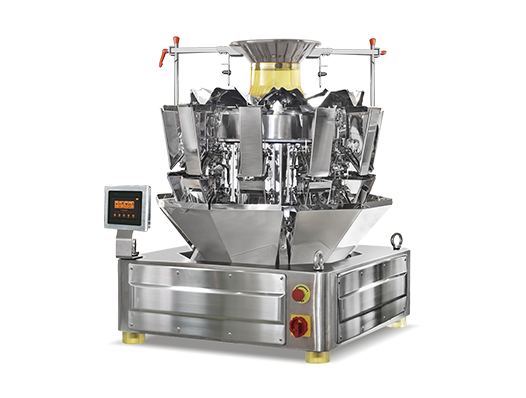

The 10-head 0.5L/0.8L bucket combination weigher is specifically designed for high-precision quantitative weighing of small particles, small doses, and irregular materials. Equipped with a new generation MCU/PLC intelligent control system and a 7-inch/10-inch high-definition touch screen, this quantitative filling machine easily handles rapid weighing and packaging of fine materials such as Chinese herbal pieces, pistachios, coffee beans, chocolate beans, hardware parts, and plastic granules. It is the ideal choice for your production line upgrade, labor replacement, and efficiency improvement.
Why Choose This 10-Head Combination Weigher?
① High-Precision Small Dose Weighing for Maximum Material Savings
·Weighing accuracy class reaches X(0.5) with a minimum graduation of only 0.1g
·Precise weight control across the entire 5-200g weighing range significantly reduces material waste and ensures every package complies with metrological regulations, making the most of your valuable raw materials such as Chinese herbal pieces and coffee beans
② Intelligent Multi-Bucket Combination: Speed and Precision in Perfect Harmony
·10 independent weighing buckets work in parallel with microsecond-level response from the high-speed MCU/PLC calculation, achieving a maximum weighing speed of 70 bags per minute
·The intelligent combination algorithm automatically selects the bucket combination closest to the target weight, delivering fast, stable, and high-precision output even for irregularly shaped pistachios and chocolate beans
③ Dual Bucket Volume Options for Flexible Material Adaptation
·Available in 0.5L and 0.8L bucket volumes, freely selectable according to material density and flow characteristics
·Small volume buckets are ideal for ultra-high precision lightweight materials, while large volume buckets accommodate fluffy and irregular products, truly achieving one machine for multiple uses and flexible production changes
④ Intelligent Operation Eliminates Reliance on Experience
·Equipped with a 7-inch/10-inch color touch screen for clear parameter setting, weighing curves, and production statistics at a glance
·Built-in multiple material preset programs with one-click recall allow new operators to get started quickly, significantly reducing training costs and operational errors
⑤ Industrial-Grade Stability and Durability for Demanding Production Lines
·Control system options include the economical MCU solution or the highly reliable PLC solution to meet different budget and environmental requirements
·The whole machine weighs 220kg with a solid structure and stable operation; packaging weight is 290kg ensuring safe long-distance transportation
·Wide power supply compatibility: AC220V/110V±10%, 50Hz/60Hz, 1.5kW power, compatible with domestic and international grid environments
Applicable Materials and Industries
Whether it's particles, blocks, flakes, or strips, as long as the unit weight is between 5-200g, this 10-head multihead weigher delivers a highly consistent and high-yield weighing solution.
Food
Pistachios, coffee beans, chocolate beans, candies, sunflower seeds, nuts, cereal rings, puffed food
Pharmaceutical
Chinese herbal pieces, formula granules, herbal sections, pills, tablets
Chemical/Plastic
Plastic granules, color masterbatches, resin particles, laundry pods, fertilizer granules
Hardware
Screws, nuts, washers, small springs, electronic components
Technical Specifications
Item | Specification |
Weighing Range | 5 - 200 g |
Weighing Accuracy Class | X(0.5) |
Minimum Graduation | 0.1 g |
Maximum Weighing Speed | 70 bpm (bags per minute) |
Bucket Volume | 0.5L / 0.8L (optional) |
Control System | MCU / PLC (optional) |
Display | 7-inch touch screen / 10-inch touch screen (optional) |
Power Supply | AC220V/110V ±10%, 50/60Hz, 1.5kW |
Dimensions (L×W×H) | 1370 × 1060 × 1205 mm |
Machine Weight | 220 kg |
Packaging Weight | 290 kg |
Product Features
Advanced Combination Weighing Algorithm: Adopts intelligent fuzzy control algorithm to automatically optimize weighing combinations, minimizing errors and ensuring consistent weight for every package
Modular Structure Design: Key components such as buckets and vibratory trays feature tool-free quick-disassembly design for fast cleaning, meeting food and pharmaceutical industry hygiene standards
High-Sensitivity Sensors: Equipped with high-precision digital weighing sensors for fast response, accurate measurement, and excellent long-term stability
Multiple Data Protection: Built-in data storage function can save multiple material parameters for one-click recall during product changes, saving changeover time
Fault Self-Diagnosis Function: Real-time monitoring of all component status during operation with automatic alarm and fault code display for quick troubleshooting
Strong Compatibility: Seamlessly integrates with various vertical packaging machines, premade bag packaging machines, and filling machines to form a complete automated production line
Food-Grade Contact Parts: All material contact parts are made of high-quality 304 stainless steel, rust and corrosion resistant, complying with food and pharmaceutical GMP cleanliness requirements
Multiple Electrical Protection: Overload, overvoltage, and leakage protection combined with dustproof and waterproof interfaces ensure stable long-term operation in humid or dusty workshops
Data Traceability: Supports production report export and remote monitoring expansion (PLC configuration), helping factories move towards digital management
Working Principle
The 10-head combination weigher simultaneously weighs materials in 10 independent weighing buckets. The control system automatically selects the optimal weight combination from the 10 buckets for discharging according to the target weight. Compared with single-bucket weighing, this combination weighing method not only greatly improves weighing speed but also effectively reduces the impact of individual bucket errors on overall accuracy, achieving the perfect combination of speed and precision.
More Than Just a Weigher,
It's a Cost-Reduction and Efficiency-Enhancement Tool
Labor Reduction: One quantitative filling machine can replace 3-4 skilled weighing workers, solving the problems of recruitment difficulties and high labor costs
Efficiency Improvement: With speeds up to 70bpm, it easily matches downstream packaging machines, doubling overall production capacity
Waste Reduction: X(0.5) class high precision controls overfill to a minimal range, saving raw material value far exceeding the equipment investment in one year
Consistent Performance: Industrial-grade frame and mature control platform withstand 24-hour continuous operation with extremely low maintenance costs
