CW120 Automatic Checkweigher | High-Precision Online Weight Inspection Machine

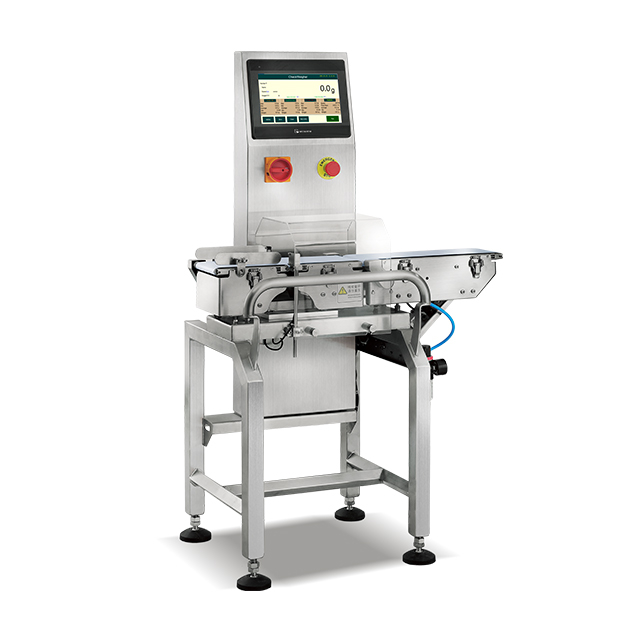

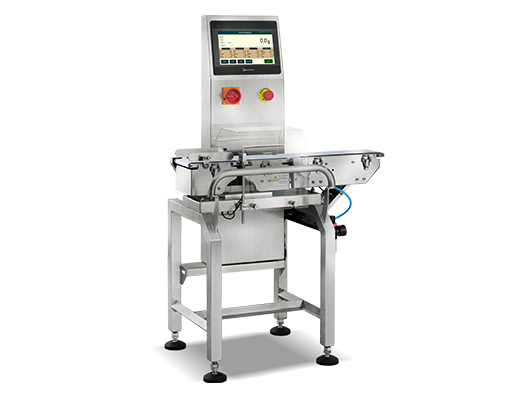

The CW120 fully automatic weight inspection machine (also called an automatic checkweigher or checkweigher scale) is a high-performance online weight detection device designed specifically for small boxes, pouches, and ultra-small individual items.

By adopting high-speed A/D sampling and control technology, this checkweigher achieves high-accuracy data acquisition and instant pass/fail judgment during dynamic weighing. It automatically rejects non-conforming products that are underweight, overweight, missing parts, or missing accessories.

The entire checkweigher scale is constructed from 304 food-grade stainless steel. Compact and flexible to install, this online weight inspection machine is widely used in the food, pharmaceutical, daily chemical, electronics, and agricultural product industries. It helps businesses strictly control outgoing product quality, reduce customer complaint risks and material waste, and boost production automation and brand credibility.

Extreme Weighing Accuracy –

Never Miss a Tiny Deviation

- Weighing accuracy of this checkweigher reaches ±0.05g to ±0.1g, with a minimum scale division of 0.01g.

- The checkweigher scale precisely identifies weight differences in ultra-small items such as tablets, small hardware pieces, and candies.

- Effectively avoids regulatory penalties and brand damage caused by non-compliant single-piece or single-pack weight.

High-Speed, Stable Operation –

Match Your Production Line Pace

- Maximum inspection speed of 180 pieces per minute; conveying speed steplessly adjustable from 20 to 60 m/min.

- Optimized dynamic weighing algorithm allows this fully automatic weight inspection machine to maintain stable accuracy even at high speeds.

- Never slow down your production rhythm, helping to improve overall production capacity and efficiency.

Intelligent Control System –

Simple and Efficient Operation

- Equipped with a 10-inch HD touchscreen; the user interface of this automatic checkweigher is intuitive and requires no specialized training.

- Built-in high-speed A/D sampling controller delivers fast data processing and strong anti-interference capability.

- 99 product recipes can be preset, enabling one-touch switchover of checkweighing parameters for different products with zero changeover downtime.

Multiple Reject Solutions –

Flexibly Adapt to Your Needs

- Standard single-side pusher reject mechanism offers stable operation and precise rejection.

- Optional reject devices include air blast, flap, and others, making the checkweigher scale suitable for fragile, spill-prone, rigid, and other product types.

- Gentle reject action protects qualified products and reduces unnecessary material waste.

Food-Grade Body –

Thrives in Demanding Production Environments

- The entire checkweigher scale body is made of 304 stainless steel, waterproof, corrosion-resistant, and easy to clean and sanitize.

- Meets GMP hygiene standards for the food and pharmaceutical industries.

- Operates stably over a wide environment range: temperature 0℃ to 40℃, humidity 30% to 95%.

Bidirectional Operation Design –

Lower Retrofit Costs

- Supports left-in/right-out and right-in/left-out operation directions.

- The orientation of this online weight inspection machine can be flexibly adjusted to your existing production line layout.

- No major line modifications required, shortening installation time and reducing retrofit costs.
